Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
62
JP2.3 B+
Encoder B phase
signal +
JP2.4 B-
Encoder B phase
signal -
JP2.5 Z+
Encoder Z phase
signal +
JP2.6 Z-
Encoder Z phase
signal -
JP2.7 V＋
Encoder power
positive pole
Voltage 12VDC，max output current 500mA
JP2.8 V-
Encoder power
negative pole
JP2.9 PE
Shield
grounding
shield line grounding terminal
4.7.1.4 ABZ incremental 12 V PG card input terminal and wiring for encoder output signal
ABZ incremental 12V PG card can receive the output signal of tow types of encoder: collector
open circuit signal and push-pull signal

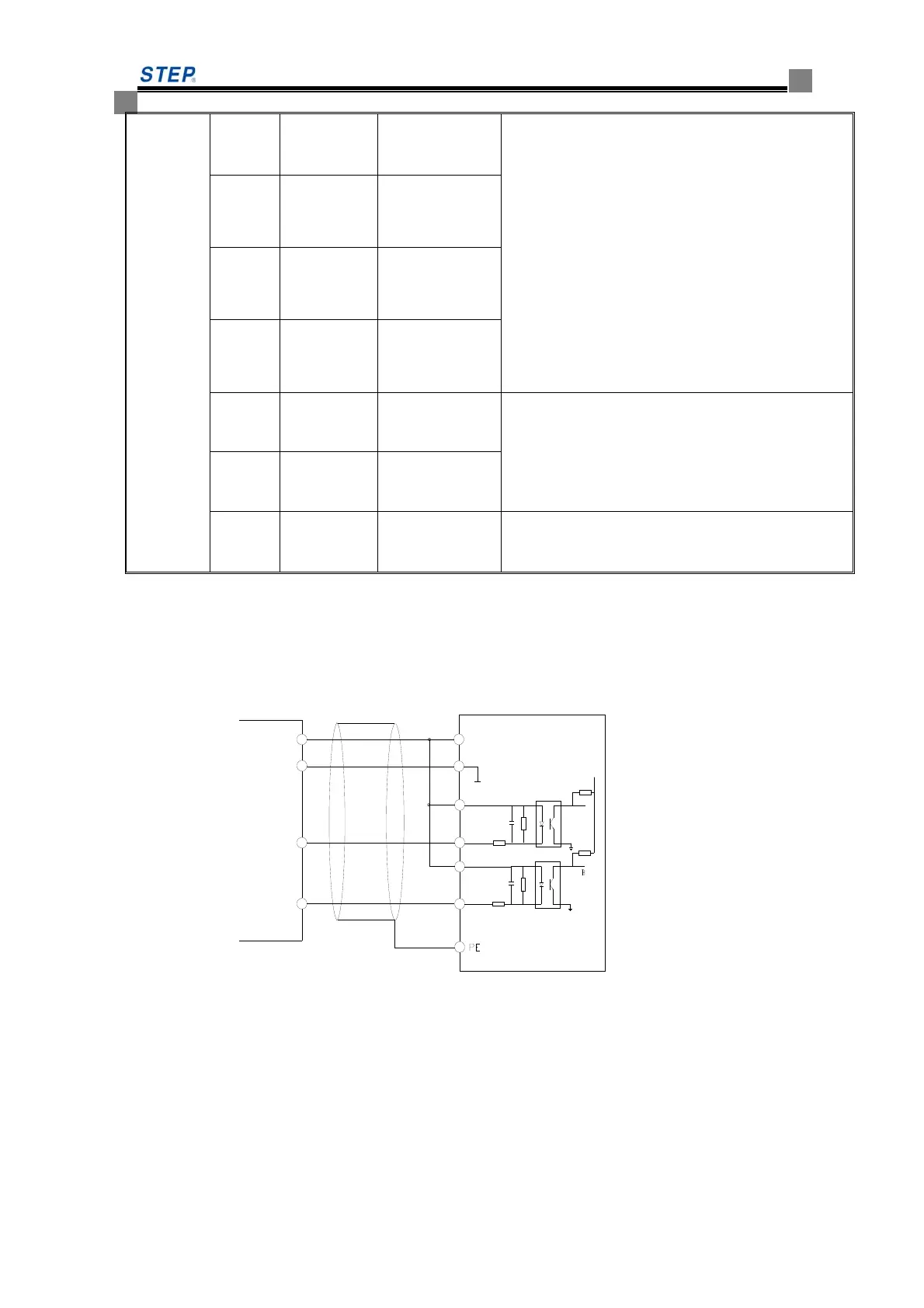

Fig 4.19 the wiring of encoder collective open circuit signal
集开输出
VCC
0V
A
B
A-
B-
A+
B+
A
PG卡接线板
+5V
屏蔽线接地
V+
V-
Fig 4.20 the wiring of encoder push-pull signal
