Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
64
name
Terminal
label
Terminal function
description
specification
Collec
tor
open
output
FA
Frequency-dividing
signal output A phase
Triode collective open output （max output
frequency 100kHz）；
0V 24V GND
FB
Frequency-dividing
signal output B phase
0V 24V GND
Encod
er
A+,A-
Encoder A phase
signal
Differential signal max input frequency
100kHz；
B+,B-
Encoder B phase
signal
R+,R- Encoder Z signal
C+,C- Encoder SIN signal
D+,D- Encoder COS signal
V+ +5V
0V +5V GND

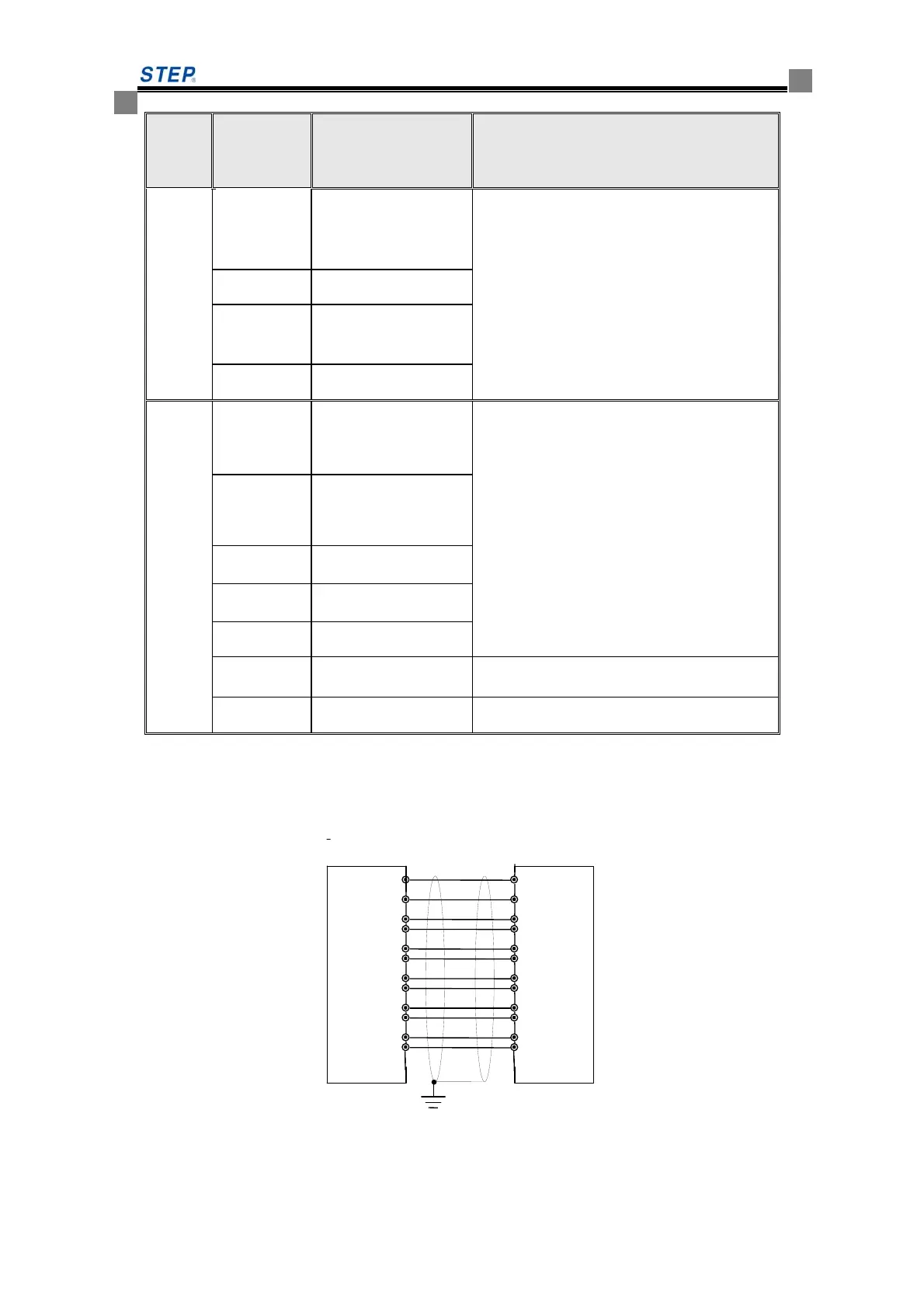

4.7.2.4 sin/cos PG card input teriminla and encoder output signal wiring
Sin/cos PG card can receive the sin/cos differential signal of encoder
Fig 4.22 the wiring of encoder
Fig 4.2.2 the wiring of sin/cos differential output signal of encoder
SIN/COS 编码器
5V
0V
A+
屏蔽层接地
A-
B+
B-
R+
R-
C+
C-
D+
75kW
V+
0V
A+
A-
B+
B-
R+
R-
C+
C-
D+
D-
型号：AS.T024
