STIEBEL ELTRON DHB-E 11 LCD Operation And Installation Guide

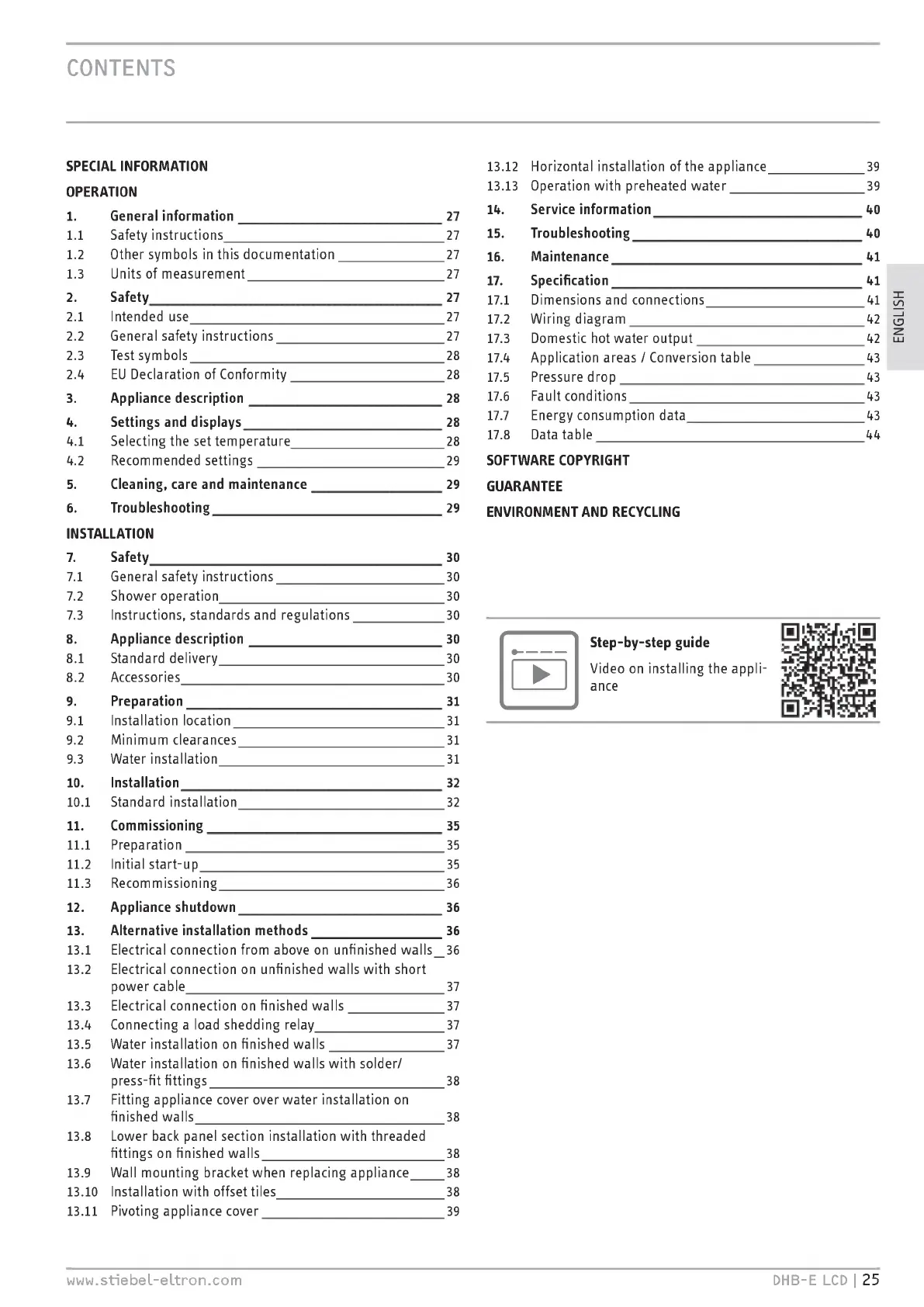

CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information 27
1.1 Safety instructions 27
1.2 Other symbols in this documentation 27
1.3 Units of measurement 27
2. Safety 27
2.1 Intended use 27
2.2 General safety instructions 27
2.3 Test symbols 28
2.4 EU Declaration of Conformity 28
3. Appliance description 28
4. Settings and displays 28
4.1 Selecting the set temperature 28
4.2 Recommended settings 29
5. Cleaning, care and maintenance 29
6. Troubleshooting 29
INSTALLATION
7. Safety 30
7.1 General safety instructions 30
7.2 Shower operation 30
7.3 Instructions, standards and regulations 30
8. Appliance description 30
8.1 Standard delivery 30
8.2 Accessories 30
9. Preparation
9.1
9.2
9.3
Installation location
Minimum clearances
Water installation
31
31
31
31
10. Installation 32
10.1 Standard installation 32
11. Commissioning 35
11.1 Preparation 35
11.2 Initial start-up 35
11.3 Recommissioning 36
12. Appliance shutdown 36
13. Alternative installation methods 36
13.1 Electrical connection from above on unfinished walls_36
13.2 Electrical connection on unfinished walls with short
power cable 37
13.3 Electrical connection on finished walls 37
13.4 Connecting a load shedding relay 37
13.5 Water installation on finished walls 37
13.6 Water installation on finished walls with solder/
press- fit fittings 38
13.7 Fitting appliance cover over water installation on
finished walls 38
13.8 Lower back panel section installation with threaded
fittings on finished walls 38
13.9 Wall mounting bracket when replacing appliance 38
13.10 Installation with offset tiles 38
13.11 Pivoting appliance cover 39
13.12 Horizontal installation of the appliance
13.13 Operation with preheated water
14. Service information
15. Troubleshooting
16. Maintenance
39
39
40
40
41
17. Specification 41
17.1 Dimensions and connections 41
17.2 Wiring diagram 42
17.3 Domestic hot water output 42
17.4 Application areas / Conversion table 43
17.5 Pressure drop 43
17.6 Fault conditions 43
17.7 Energy consumption data 43
17.8 Data table 44
SOFTWARE COPYRIGHT
GUARANTEE
ENVIRONMENT AND RECYCLING
>
Step-by-step guide
Video on installing the appli-
ance
www.stiebet-ettron.com DHB-E LCD I 25
