TRICTA I I ATTnNI

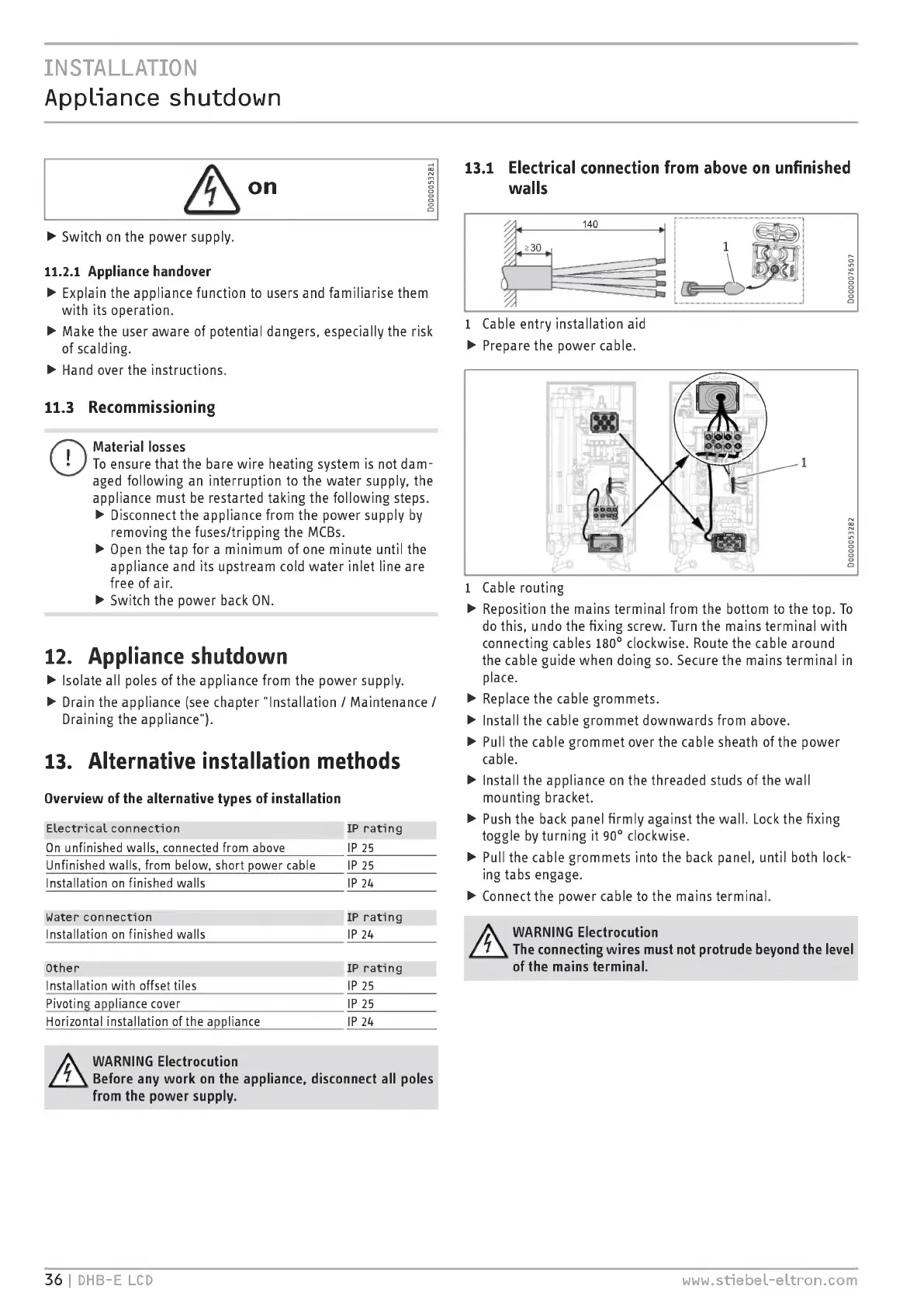

Appliance shutdown
on
2
2
o
I> Switch on the power supply.
11.2.1 Appliance handover
> Explain the appliance function to users and familiarise them
with its operation.
> Make the user aware of potential dangers, especially the risk
of scalding.
> Hand over the instructions.
11.3 Recommissioning
C
s Material losses
To ensure that the bare wire heating system is not dam-
aged following an interruption to the water supply, the
appliance must be restarted taking the following steps.
> Disconnect the appliance from the power supply by
removing the fuses/tripping the MCBs.
> Open the tap for a minimum of one minute until the
appliance and its upstream cold water inlet line are
free of air.
> Switch the power back ON.
12. Appliance shutdown
> Isolate all poles of the appliance from the power supply.
> Drain the appliance ( see chapter " Installation / Maintenance /
Draining the appliance").
13. Alternative installation methods
Overview of the alternative types of installation
Electrical connection
On unfinished walls, connected from above
Unfinished walls, from below, short power cable IP 25
Installation on finished walls IP 24
IP rating
IP 25
Water connection
Installation on finished walls
IP rating
IP 24
Other
Installation with offset tiles
IP rating
IP 25
Pivoting appliance cover IP 25
Horizontal installation of the appliance IP 24
WARNING Electrocution
Before any work on the appliance, disconnect all poles
from the power supply.
13.1 Electrical connection from above on unfinished
walls
1 Cable entry installation aid
> Prepare the power cable.
1 Cable routing
> Reposition the mains terminal from the bottom to the top. To
do this, undo the fixing screw. Turn the mains terminal with
connecting cables 180° clockwise. Route the cable around
the cable guide when doing so. Secure the mains terminal in
place.
> Replace the cable grommets.
> Install the cable grommet downwards from above.
> Pull the cable grommet over the cable sheath of the power
cable.
> Install the appliance on the threaded studs of the wall
mounting bracket.
> Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
> Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
> Connect the power cable to the mains terminal.
, WARNING Electrocution
7 The connecting wires must not protrude beyond the level
of the mains terminal.
36 I DHB-E LCD www.stiebel-eltron.com
