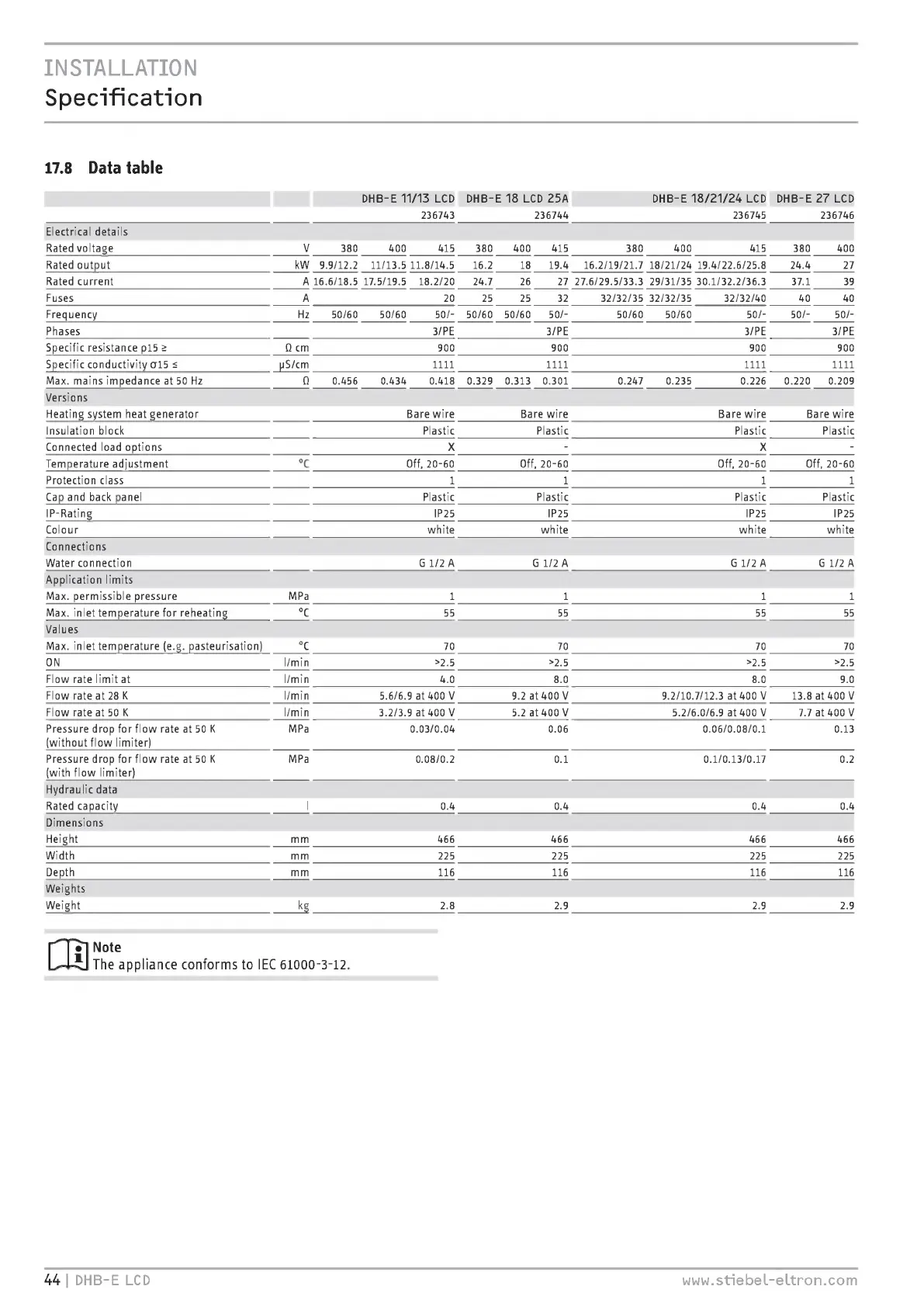

17.8 Data table
DHB-E 11/13 LCD DHB-E 18 LCD 25A
236743 236744
DHB-E 18/21/24 LCD
236745
DHB-E 27 LCD
236746
Electrical details
Rated voltage
Rated output
Rated current
V 380 400 415 380 400 415 380 400 415 380 400
kW 9.9/12.2 11/13.5 11.8/14.5 16.2 18 19.4 16.2/19/21.7 18/21/24 19.4/22.6/25.8 24.4 27
A 16.6/18.5 17.5/19.5 18.2/20 24.7 26 27 27.6/29.5/33.3 29/31/35 30.1/32.2/36.3 37.1 39
Fuses A 20 25 25 32 32/32/35 32/32/35 32/32/40 40 40
Frequency
Phases
Hz 50/60 50/60 50/- 50/60 50/60 50/- 50/60 50/60 50/- 50/- 50/-
3/PE 3/PE 3/PE 3/PE
Specific resistance p15
Specific conductivity 0- 15 5
Max. mains impedance at 50 Hz
Versions
O cm 900 900 900 900
pS/cm 1111 1111 1111 1111
O 0.456 0.434 0.418 0.329 0.313 0.301 0.247 0.235 0.226 0.220 0.209
Heating system heat generator
Insulation block
Bare wire Bare wire Bare wire Bare wire
Plastic Plastic Plastic Plastic
Connected load options
Temperature adjustment °C Off, 20-60 Off, 20-60 Off, 20-60 Off, 20-60
Protection class 1
Cap and back panel
IP - Rating
Colour white white white white
Connections
Water connection G 1/2 A G 1/2 A G 1/2 A G 1/2 A
Plastic Plastic Plastic Plastic
IP25 IP25 IP25 IP25
Application limits
Max. permissible pressure MPa 1 1 1 1
Max. inlet temperature for reheating °C 55 55 55 55
Values
Max. inlet temperature ( e.g. pasteurisation) °C 70 70 70 70
ON l/min > 2.5 > 2.5 > 2.5 > 2.5
Flow rate limit at l/min 4.0 8.0 8.0 9.0
Flow rate at 28 K l/min 5.6/6.9 at 400 V 9.2 at 400 V 9.2/10.7/12.3 at 400 V 13.8 at 400 V
Flow rate at 50 K l/min 3.2/3.9 at 400 V 5.2 at 400 V 5.2/6.0/6.9 at 400 V 7.7 at 400 V
Pressure drop for flow rate at 50 K MPa 0.03/0.04 0.06 0.06/0.08/0.1 0.13
(without flow limiter)
Pressure drop for flow rate at 50 K MPa 0.08/0.2 0.1 0.1/0.13/0.17 0.2
(with flow limiter)
Hydraulic data
Rated capacity
Dimensions
0.4 0.4 0.4 0.4
Height
Width
MM
MM
466 466 466 466
225 225 225 225
Depth
Weights
Weight
MM 116 116 116 116
kg
Note
The appliance conforms to IEC 61000-3-12.
2.8 2.9 2.9 2.9
44 I DHB -E LCD www.stiebel-eltron.com
