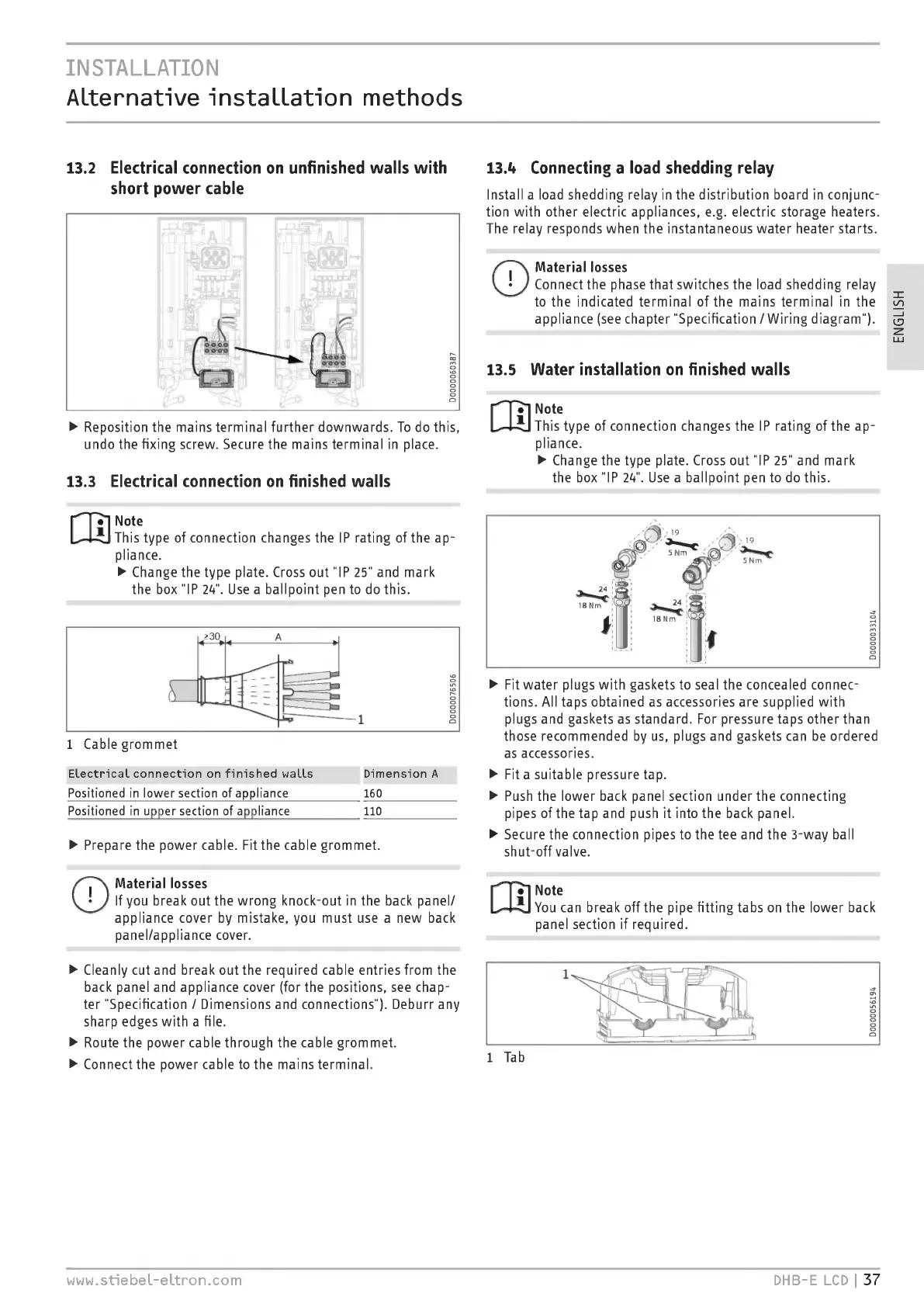

INSTALLATION
Alternative installation methods
13.2 Electrical connection on unfinished walls with
short power cable
> Reposition the mains terminal further downwards. To do this,
undo the fixing screw. Secure the mains terminal in place.
13.3 Electrical connection on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
> Change the type plate. Cross out " IP 25" and mark
the box " IP 24". Use a ballpoint pen to do this.
1 Cable grommet
Electrical connection on finished walls
Positioned in lower section of appliance
Positioned in upper section of appliance 110
Dimension A
160
> Prepare the power cable. Fit the cable grommet.
Material losses
If you break out the wrong knock-out in the back panel/
appliance cover by mistake, you must use a new back
panel/appliance cover.
> Cleanly cut and break out the required cable entries from the
back panel and appliance cover ( for the positions, see chap-
ter " Specification / Dimensions and connections"). Deburr any
sharp edges with a file.
> Route the power cable through the cable grommet.
> Connect the power cable to the mains terminal.
13.4 Connecting a load shedding relay
Install a load shedding relay in the distribution board in conjunc-
tion with other electric appliances, e.g. electric storage heaters.
The relay responds when the instantaneous water heater starts.
O
Material losses
Connect the phase that switches the load shedding relay
to the indicated terminal of the mains terminal in the
appliance ( see chapter " Specification / Wiring diagram").
13.5 Water installation on finished walls
IM
Note
This type of connection changes the IP rating of the ap-
pliance.
> Change the type plate. Cross out " IP 25" and mark
the box " IP 24". Use a ballpoint pen to do this.
> Fit water plugs with gaskets to seal the concealed connec-
tions. All taps obtained as accessories are supplied with
plugs and gaskets as standard. For pressure taps other than
those recommended by us, plugs and gaskets can be ordered
as accessories.
> Fit a suitable pressure tap.
> Push the lower back panel section under the connecting
pipes of the tap and push it into the back panel.
> Secure the connection pipes to the tee and the 3- way ball
shut-off valve.
IM
Note
You can break off the pipe fitting tabs on the lower back
panel section if required.
1 Tab
www.stiebel-eltron.com DHB-E LCD I 37
