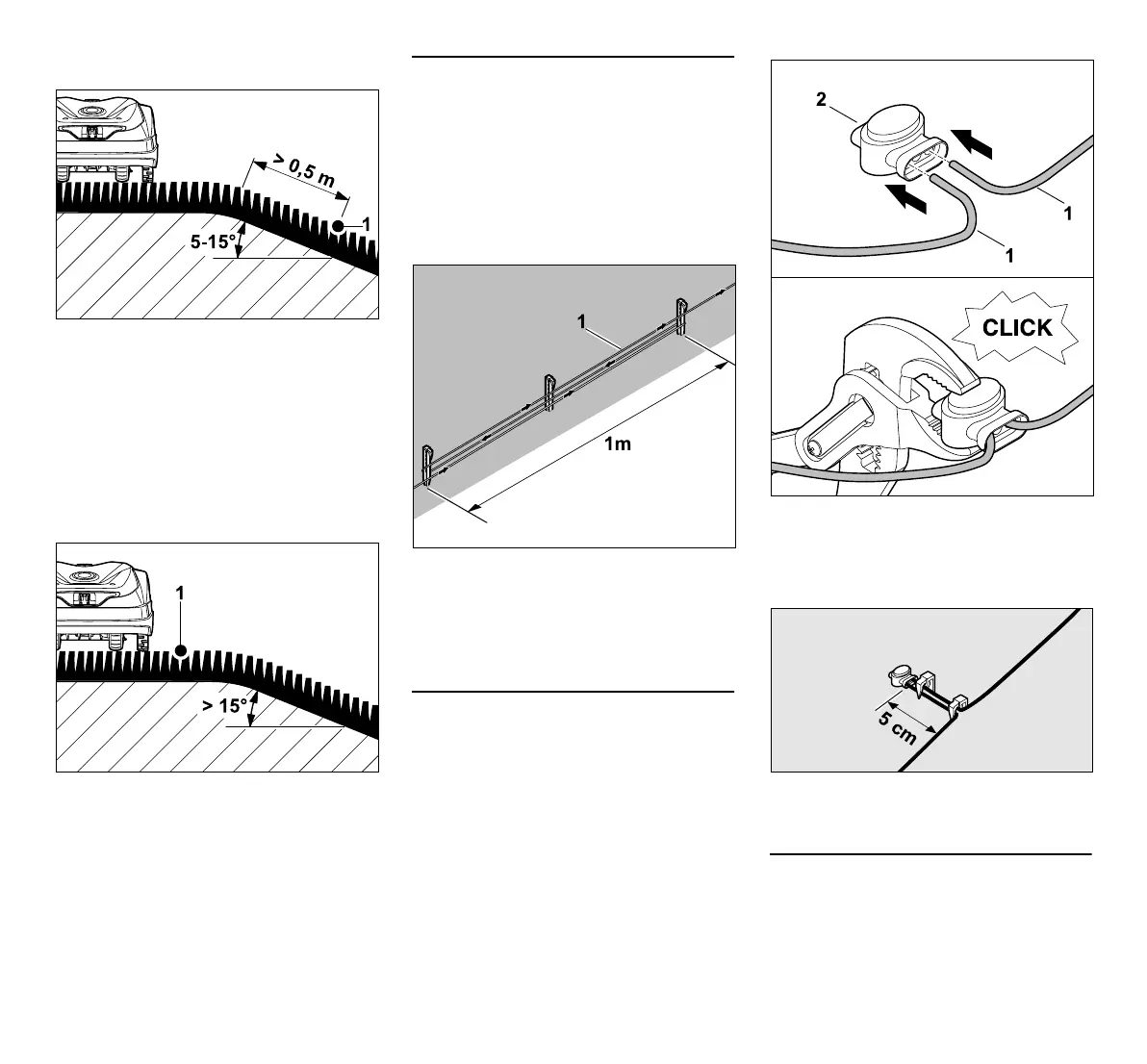

Slope with an incline of 5° - 15°:
If there is a slope with an incline of 5° - 15°
in the mowing area, the perimeter wire can
be routed below the top edge of the slope
in the slope as illustrated. The minimum
clearance (0,5 m) from the top edge of the
slope to the perimeter wire must be taken
into account for trouble-free operation of
the robotic mower.
Slope with an incline > 15°:
If there is a slope with an incline > 15° on
which a perimeter wire is to be installed in
the mowing area, it is recommended that
the perimeter wire (1) be routed in the flat
area before the top edge of the slope. The
top edge and area of the slope are not
mown.
12.15 Installing reserve wire
Reserve wire installed at regular intervals
makes it easier to make any necessary
corrections such as subsequently
changing the position of the docking
station or the routing of the perimeter wire.
In particular, reserve wire should be
installed near difficult passages.
Route perimeter wire (1) as illustrated
between 2 fixing pins spaced approx. 1 m
apart. Attach the reserve wire to the
ground in the centre using a further fixing
pin.
12.16 Using wire connectors
In order to extend the perimeter wire or to
connect loose wire ends, only the gel-filled
wire connectors available as accessories
may be used. They prevent premature
wear (e.g. corrosion of the wire ends) and
ensure optimal connections.
Make a note of the positions of the wire
connectors on the sketch of the mowing
area. (Ö 12.2)
Insert loose, unstripped wire ends (1) to
the stop in the wire connector (2). Press
the wire connector together using suitable
pliers – ensure correct engagement.
Attach the perimeter wire strain relief to the
ground with two fixing pins as illustrated.
12.17 Narrow edge clearances
It is possible to reduce the wire clearance
to a high obstacle to 22 cm on a straight
section (not at corners). This will result in a
