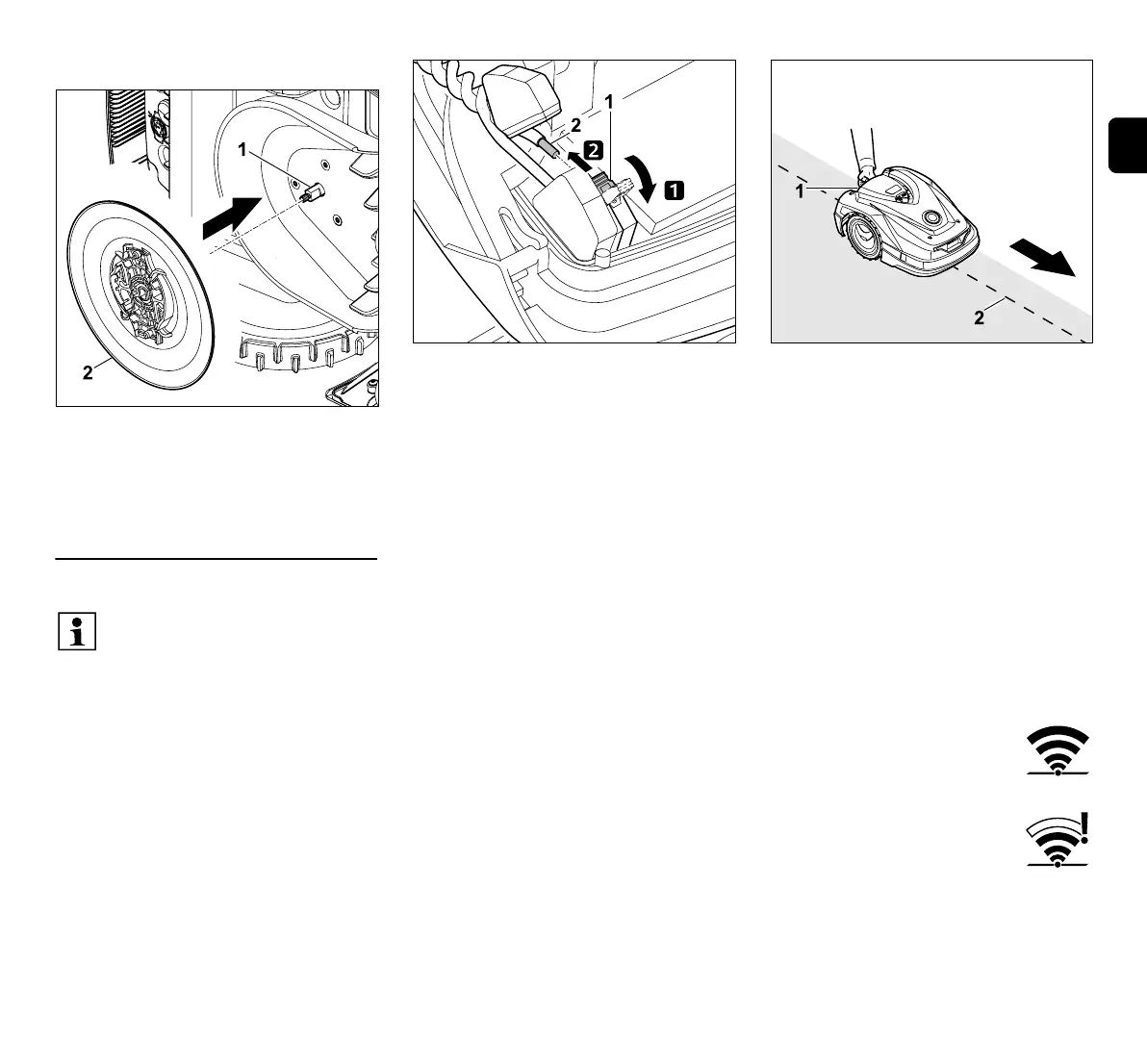

Installing the carrier plate:
Thoroughly clean the blade shaft (1) and
the mounting on the carrier plate (2). Push
the carrier plate as far as possible onto the
blade shaft.
● Install the mowing blade. (Ö 16.4)
16.7 Finding a wire break
● Before finding the wire break, the button
on the docking station must be pressed
once (LED continues to flash rapidly).
● Remove the docking station cover and
open the panel. (Ö 9.2)
1 Fold open the left clamping lever (1).
2 Remove the wire end (2) from the
terminal block and then close the clamping
lever again.
● Open the panel and fit the docking
station cover. (Ö 9.2)
The following instructions describe how to
search for a wire break in a clockwise
direction, i.e. the perimeter wire is followed
in a clockwise direction starting at the
docking station. If necessary, the search
can also be carried out counterclockwise,
but in this case the right wire end must be
removed from the terminal block.
● In the "More - Service" menu, select the
"Find wire break" entry and confirm with
OK. (Ö 11.17)
Starting at the docking station, follow the
edge of the mowing area clockwise with
the robotic mower. For this purpose, lift the
machine slightly by the rear carrying
handle (1) to relieve the weight on the
drive wheels. Push the robotic mower,
supported by its front wheels, and follow
the perimeter wire (2). It must be ensured
that the perimeter wire (2) runs under the
wire sensors. The wire sensors are
installed in a protected position on the left
and right at the front of the robotic mower.
During the wire break search, the signal
strength is indicated on the display; the
wire sensors are in the ideal position
above the perimeter wire when this value
is at its highest.
The Wire signal OK symbol
appears on the display when
the wire sensors are correctly
receiving the wire signal.
In the area of the wire break, the
signal strength drops and the
Check wire signal symbol
appears on the display.
In the event of a wire break, the red
LED on the docking station flashes
rapidly. (Ö 13.1) A corresponding
message appears in the display of
the robotic mower.
If a wire break cannot be found as
described, contact your specialist
dealer.
