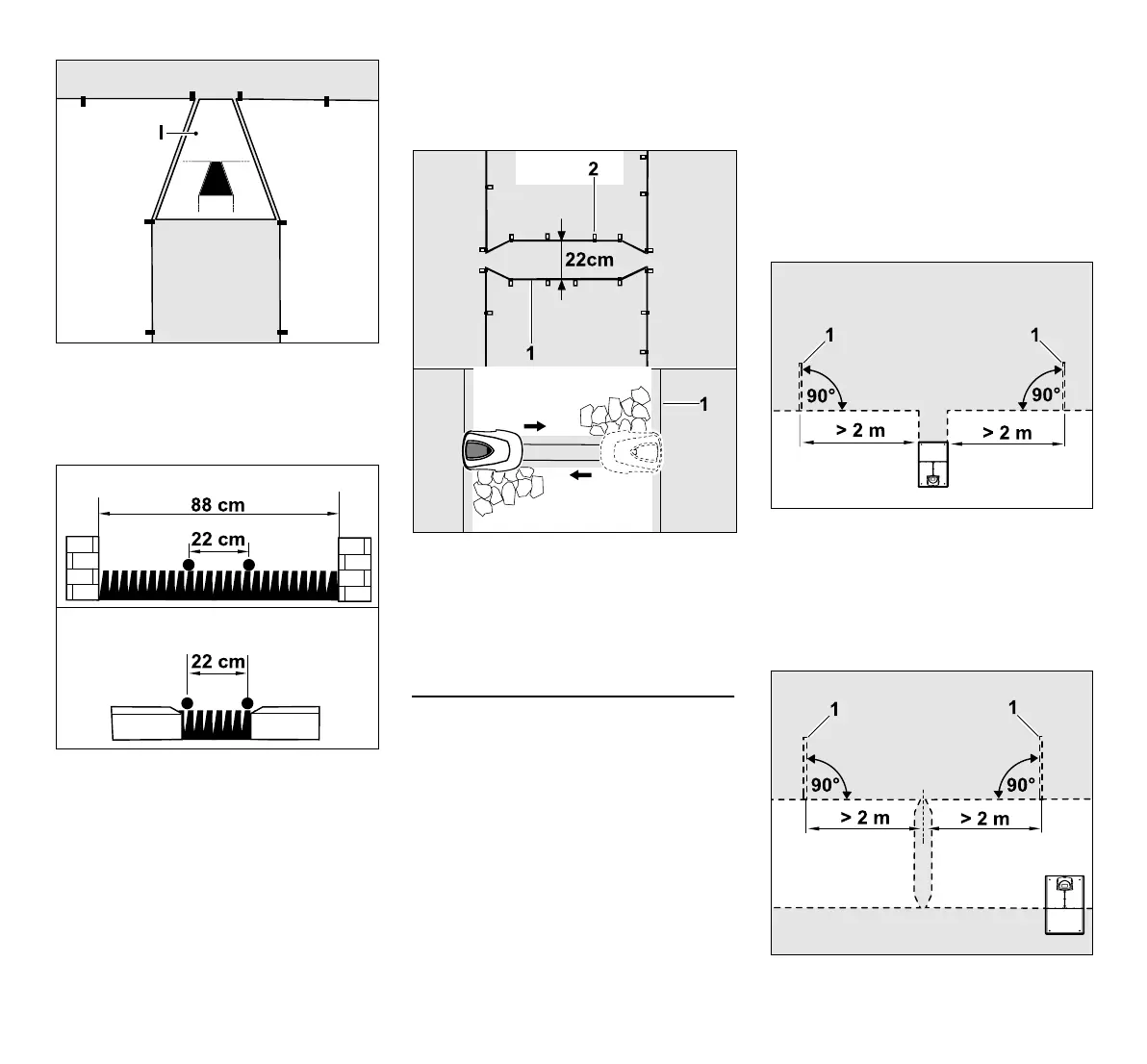

Use the corridor template supplied (I) for
installing the funnel-shaped entrance and
exit areas.
Installing the corridor:
Wire clearance in corridors: 22 cm
This results in the following space
requirements:
between high obstacles (over 1 cm in
height – e.g. walls):
88 cm,
between paths/obstacles that can be
travelled on (less than 1 cm in height –
e.g. paths):
22 cm.
In corridors, the perimeter wire (1) must be
routed parallel and attached to the ground
with a sufficient number of fixing pins (2).
At the start and end of the corridor, funnel-
shaped entrance and exit areas must be
installed.
12.12 Guide loops for offset drive home
If offset drive home is activated, guide
loops must be provided
if an external docking station has been
installed
or
if there are corridors or confined areas
in the mowing area.
Function:
When the robotic mower follows the
perimeter wire offset at a distance, it
crosses one of these guide loops during
the drive home. It then travels to the
perimeter wire and on to the docking
station.
Guide loops with an external docking
station:
To the right and left of the access to the
external docking station, two guide
loops (1) have to be installed at an angle of
90° to the perimeter wire.
Minimum clearance to access: 2m
Guide loops with corridors:
