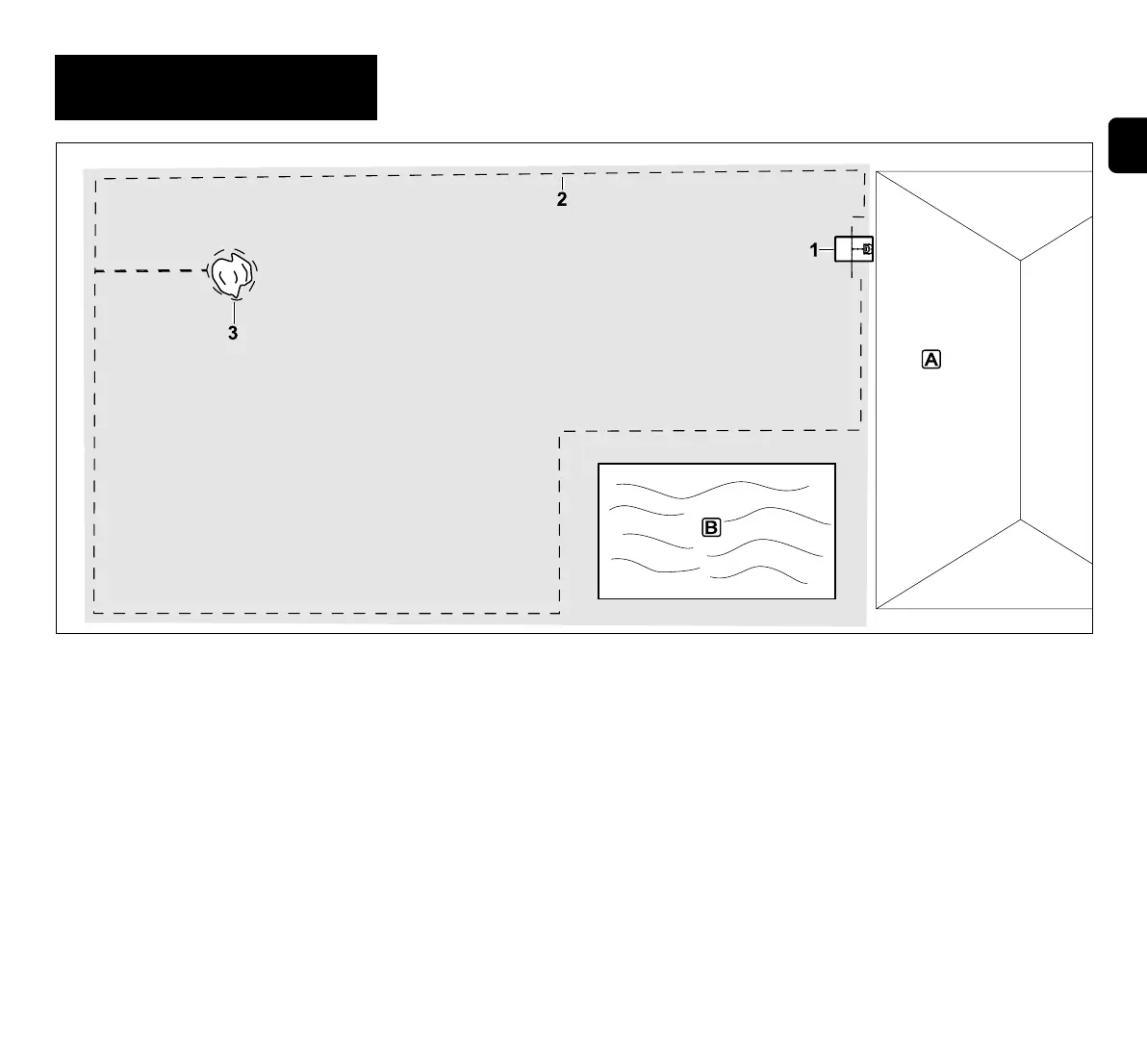

Rectangular mowing area with one tree
and swimming pool
Docking station:
Location (1) directly next to the house A
No-go area:
Installation around the free-standing
tree (3), based on a linking section
installed at right angles to the edge.
Pool:
For safety reasons (specified wire
clearance), the perimeter wire (2) is routed
around the pool B.
Wire clearances: (Ö 12.5)
Clearance to the edge: 28 cm
Clearance to adjoining area that can be
travelled on (e.g. footpath) with a stepped
area height of less than +/- 1 cm: 0cm
Clearance around the tree: 28 cm
Clearance to the pond: 100 cm
Programming:
No further adaptation is necessary
following definition of the size of the
mowing area.
Points to note:
Unmown areas around the swimming pool
must be mown manually on a regular basis
or cut using a suitable lawn trimmer.
27. Installation examples
