Stratasys Mojo - Replacing the Quickpack Print Engine

38
REPLACING THE QUICKPACK PRINT ENGINE
1. Remove the QuickPack Print Engine from its box.
2. Tear open the bag containing the QuickPack Print Engine.

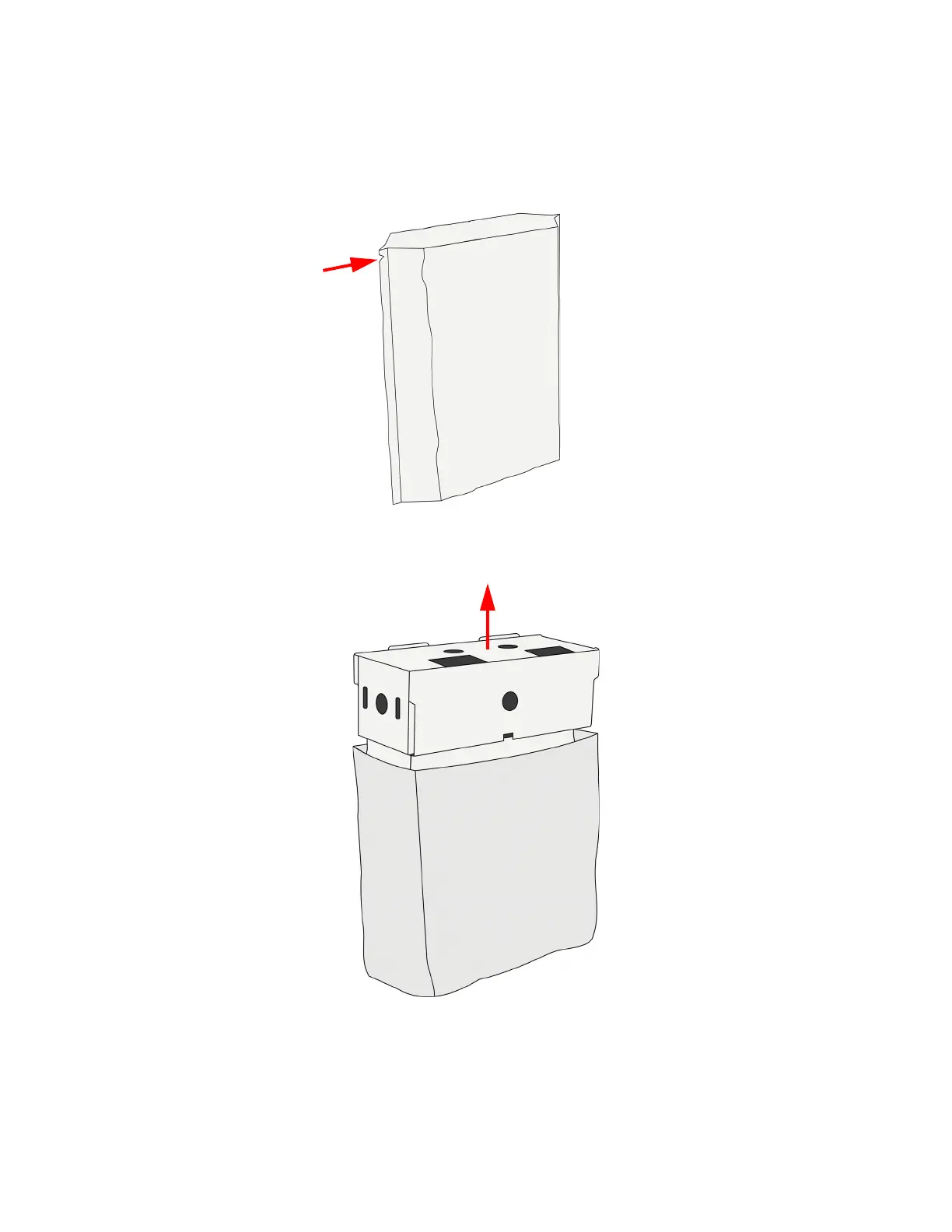

Figure 4-50: Open Bag
3. Remove the cardboard insert from the top of the QuickPack Print Engine outer bag.
Figure 4-51: Remove cardboard inserts
