Stratasys Mojo - Page 47

41

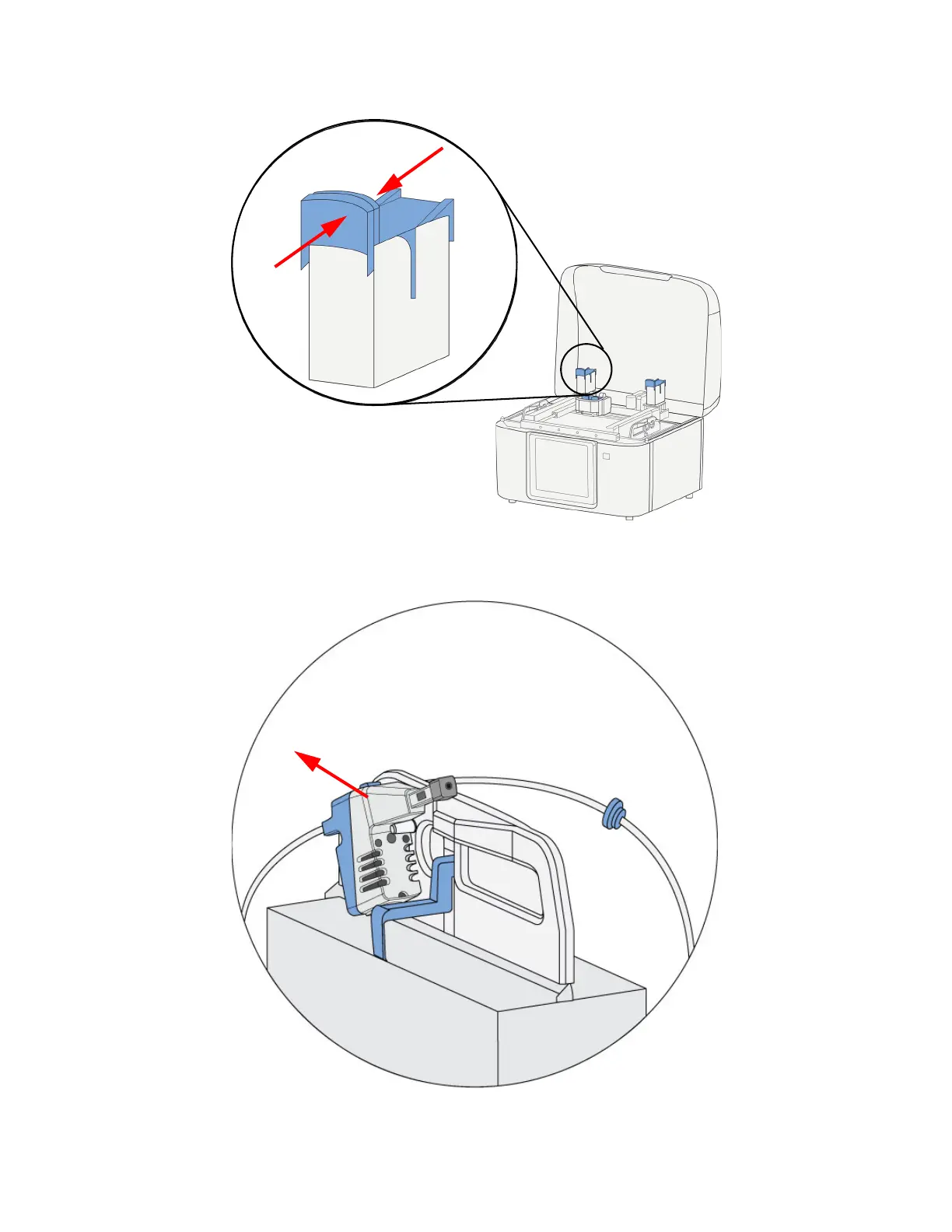

9. Open the appropriate material sensor lid by squeezing the tabs together and lifting up.
Figure 4-57: Open material sensor lid (model material sensor shown)
10. Unclip the head from the QuickPack Print Engine handle.
Figure 4-58: Unclip the head
