3. RemovetherightUV-lampassembly:
a. DisconnecttheUVpowercableandthefanpowercable.

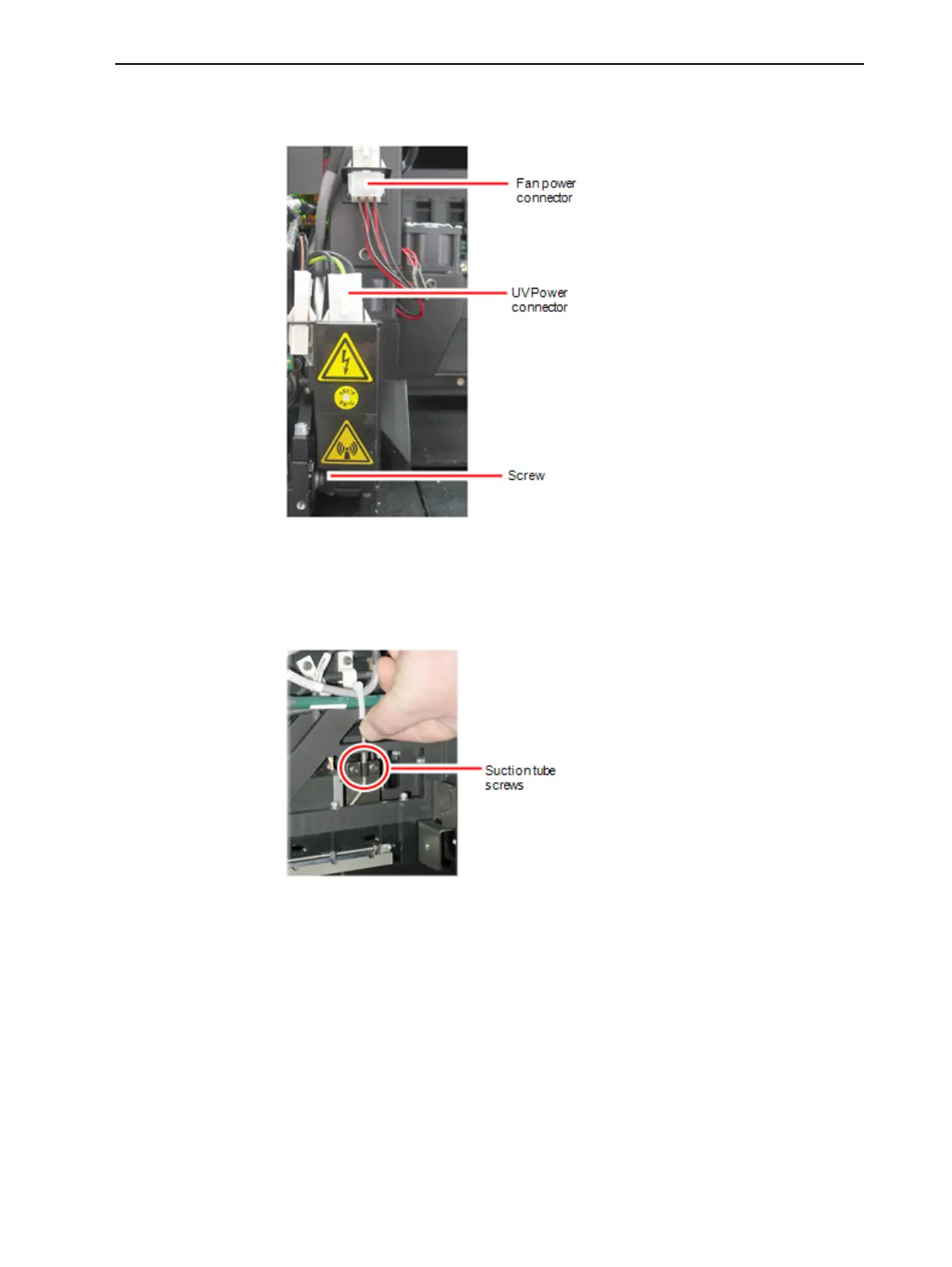

Figure6-37DisconnectingtherightUVassembly
b. RemovethescrewthatsecurestherightUVlamp,andthenpulland
liftuptheUVlamp.
4. Loosenthetwoscrewssecuringthesuctiontubeontheprintblock.
Figure6-38Liftingthesuctiontube
5. Liftthesuctiontubetosecureitinaraisedposition.
