Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-46

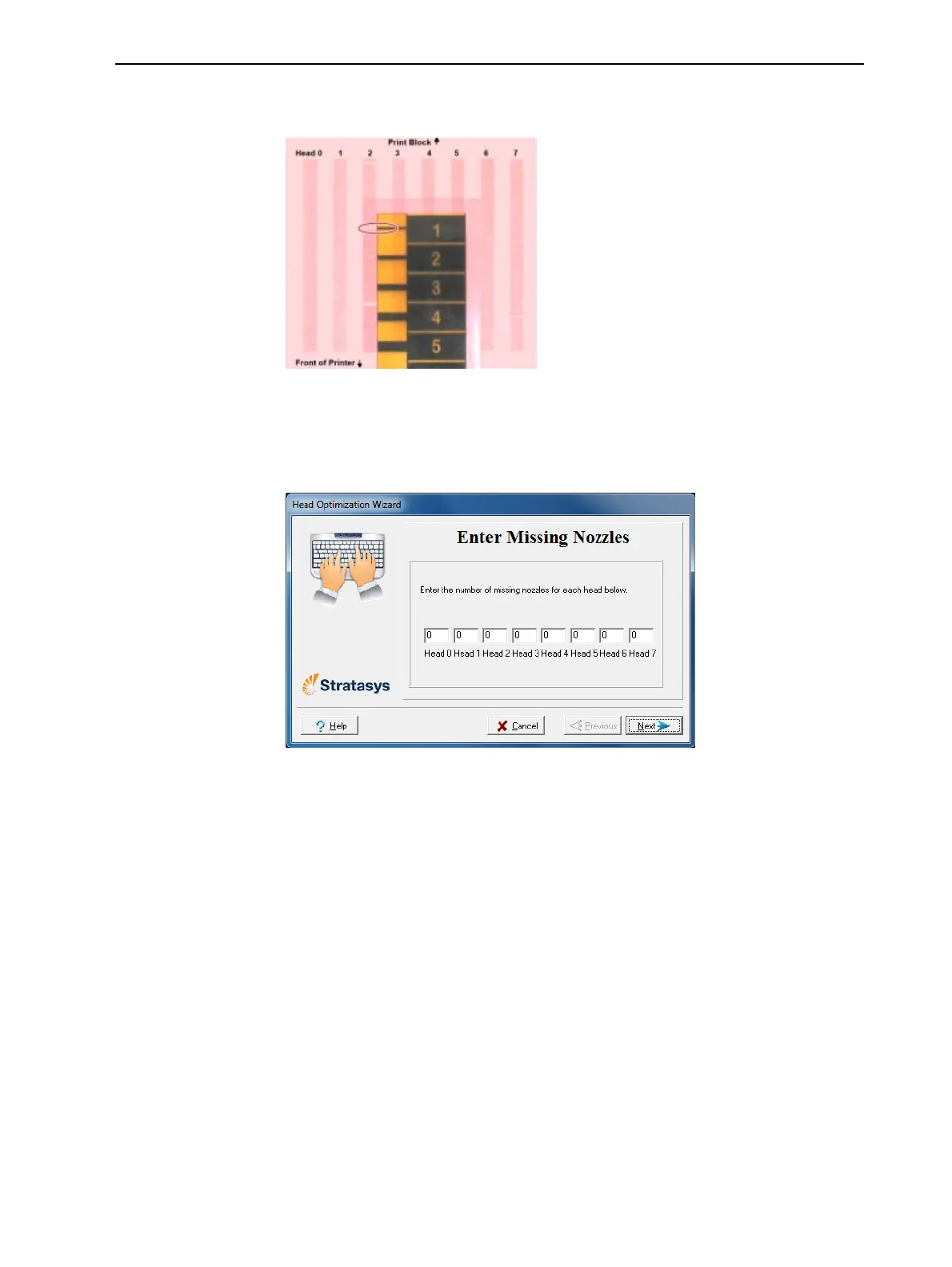

10.WhenthePatternTestisprinted,carefullyinspectit,usingtheMissing
NozzlesRulertoseeiftherearemissinglines.
Figure6-60InspectingthePatternTest
Eachmissinglinerepresentsafaultynozzleintheprinthead.
11.Inthefollowingwizardscreen,enterthenumberofmissingnozzlesfor
eachprintheadandclickNext.
Figure6-61Enter Missing Nozzlesscreen
