Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-47
12.Thewizardcontinuesaccordingtothenumberofmissingnozzlesyou
entered.
❒ Iftherearetoomanymissingnozzlesforacceptableprinting,the
wizardinstructsyoutoreplacethedefectiveprinthead(s).Youcando
thisnow,orabortthewizard.
Ifyouarepreparedtoreplaceprintheadsnow,thewizardguidesyou
throughtheprocedurewhenyouclickNext.Makesureyouhave
replacementheadsandtherequiredtools(see"ReplacingPrintHeads"
onpage6-50).Continuewith"PreparingthePrintBlock"onpage6-
52.

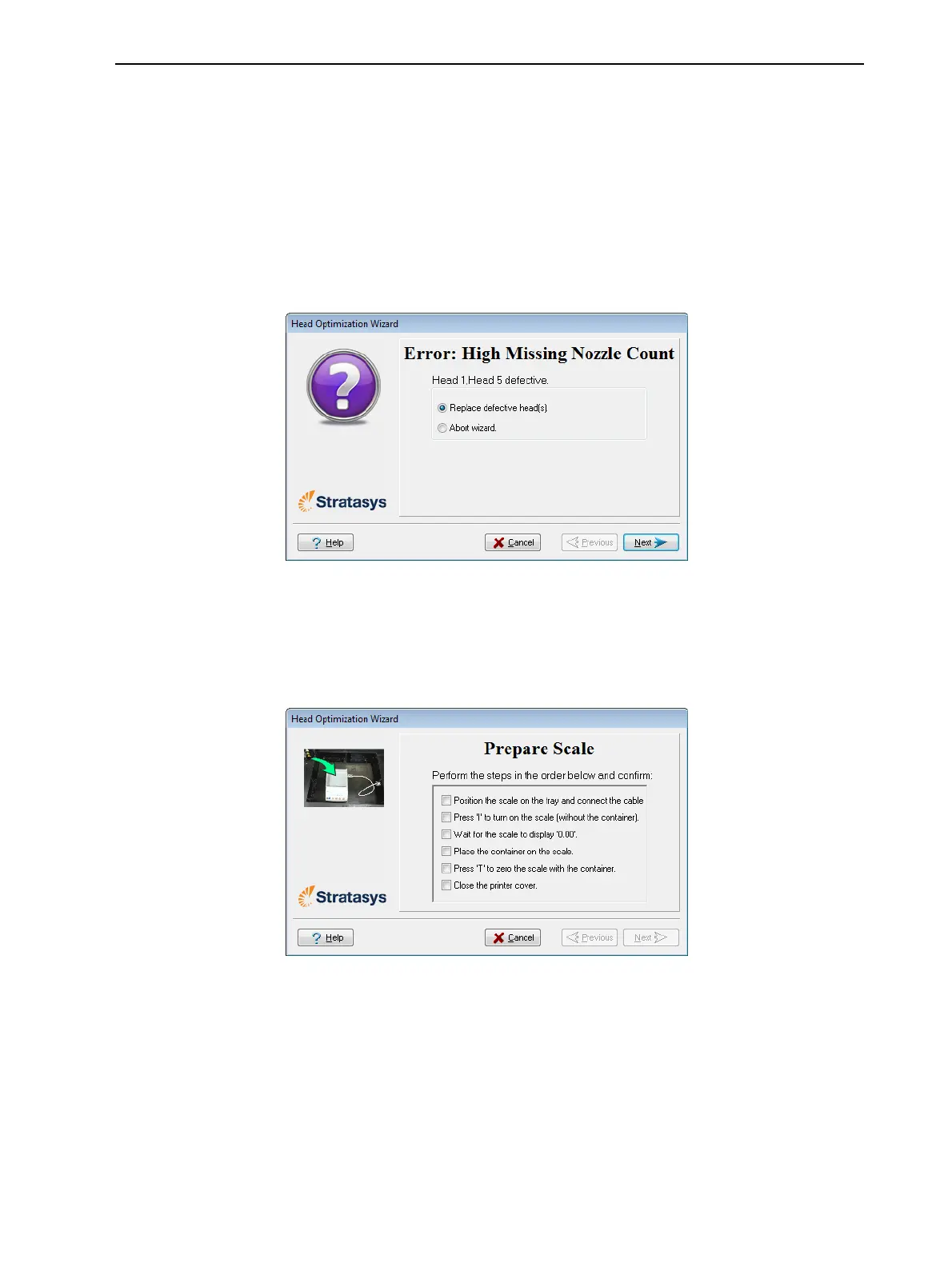

Figure6-62Headreplacementduetomissingnozzles
❒ Ifthenumberofmissingnozzlesinallprintheadsisacceptable,the
wizardcontinueswiththeheadoptimizationprocess(below).
13.Setupthescaleintheprinterbyperformingthestepslistedinthewizard
screen.
Figure6-63SettinguptheHeadOptimizationscale
