Stratus ftServer 4500 - Figure 1-4. CPU-I;O Enclosure: Interior Components, Model 2600; Interior Components

System Design
1-6 Stratus ftServer 2600, 4500, and 6300 Systems: Operation and Maintenance Guide (R639)
Interior Components

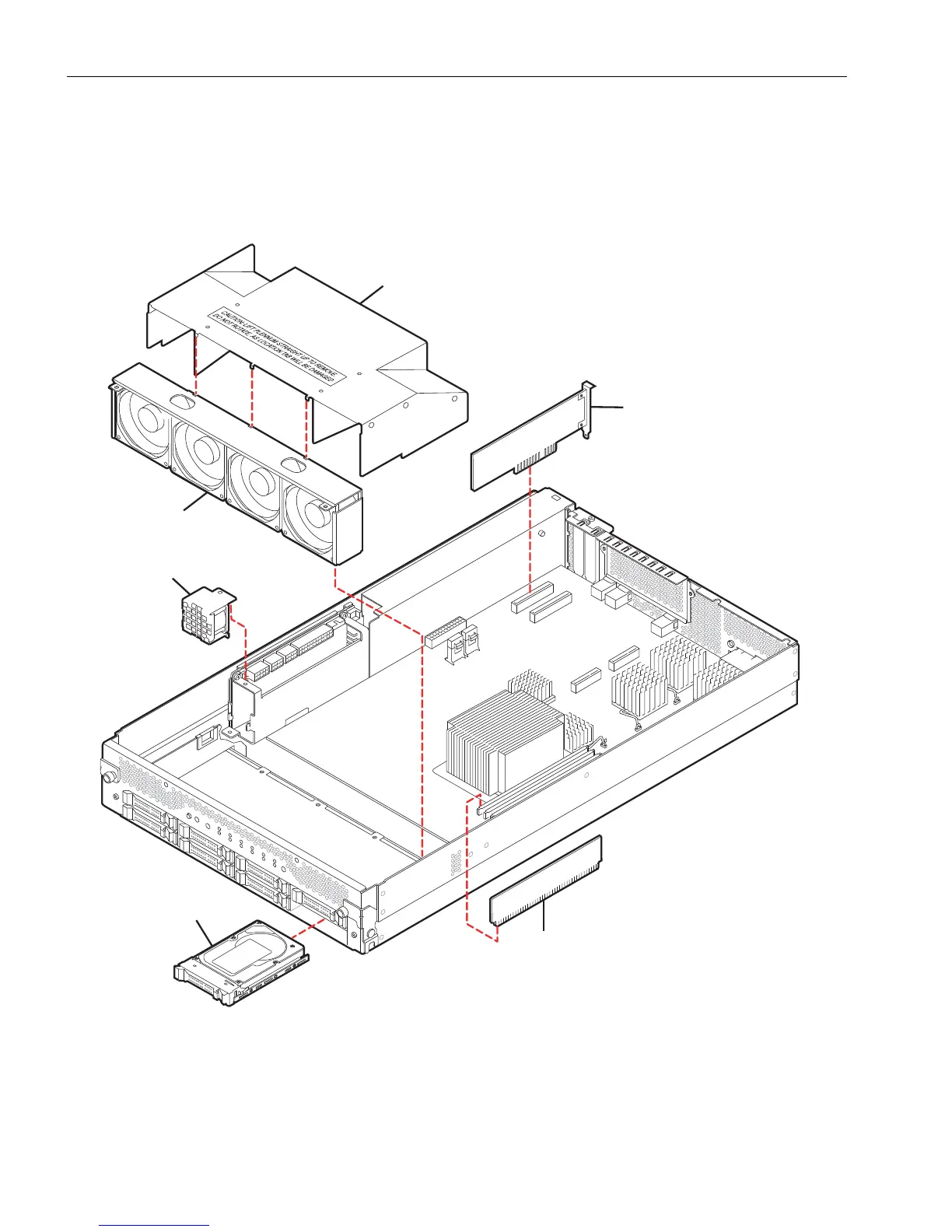

Figure 1-4 shows the interior of an ftServer 2600 system CPU- I ⁄ Oenclosure.
Figure 1-4. CPU-I/O Enclosure: Interior Components, Model 2600
1 Power supply fan 4 Low-profile PCI adapters (2 max.)
2 CPU-I/O enclosure fan assembly (4) 5 DIMMs (6 max.)
3 Plenum 6 Disk drives (8 max.)
