Stratus ftServer 4500 - Figure 5-12. DIMM Slot Numbering in Single-Processor Systems (Viewed from Front)

Replacing and Adding DIMMs
Installing and Replacing System Components 5-25
Memory in Single-Processor Systems
You install memory in single-processor systems (all ftServer 2600 systems and some
ftServer 4500 systems) in the following slots in the sequence shown (see also
Figure 5-12):
• slot 1, slot 3, slot 5, slot 2, slot 4, slot 6
NOTE
Refer also to the “map” of the system’s components that
is located on the inside of the top cover of each CPU-I/O
enclosure.

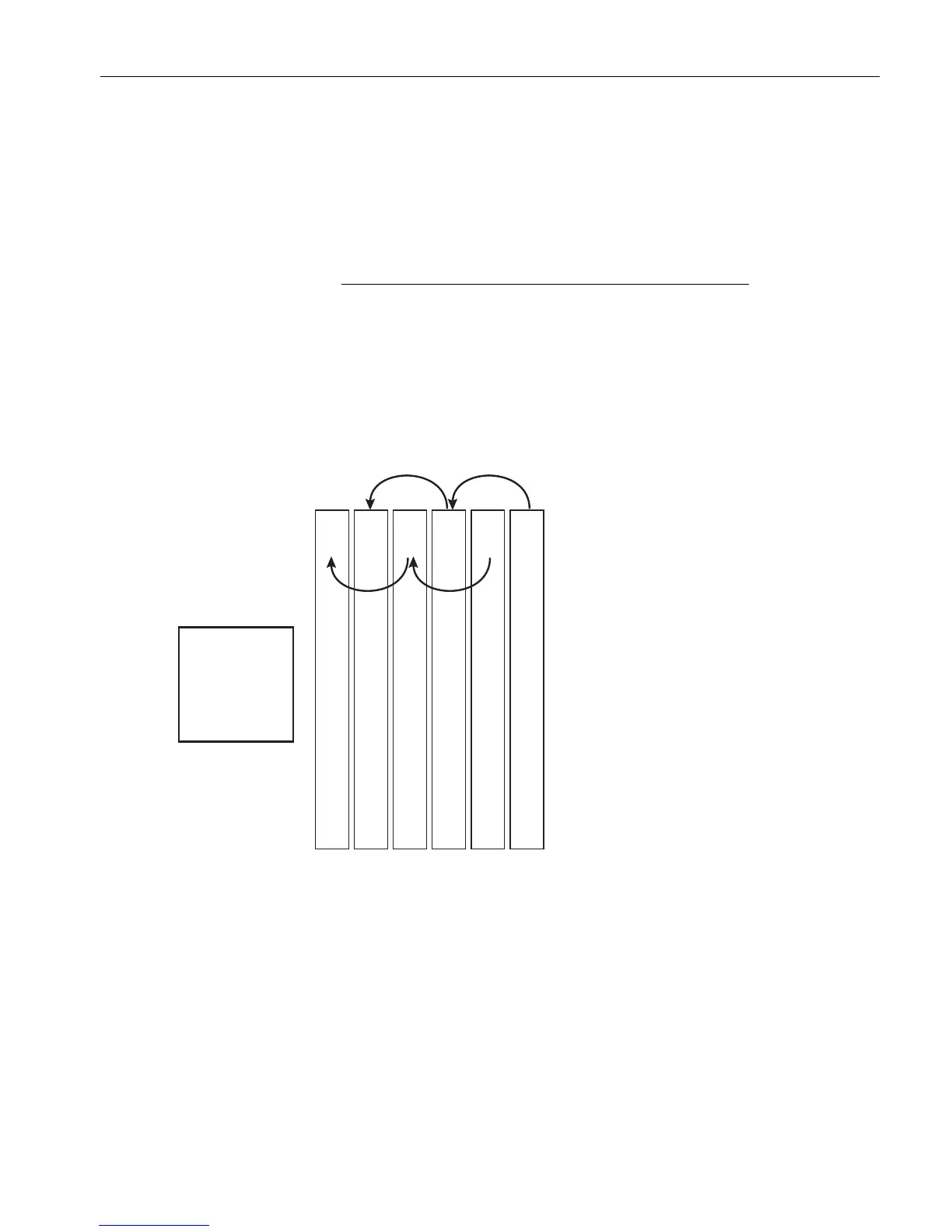

Figure 5-12. DIMM Slot Numbering in Single-Processor Systems (Viewed from Front)
Each DIMM slot in a CPU element may contain a DIMM of any supported size, but
DIMMs of identical capacity must be mounted in the corresponding slots of each
CPU-I/O enclosure.
For example, if slot 1 in CPU element 0 has 8 GB, then slot 1 in CPU element 1 must
have 8 GB, and so on for all of the slots.
Slot 6 Slot 5 Slot 4 Slot 3 Slot 2 Slot 1
635241
CPU1
dco050a
