Removing and Replacing a CPU-I/O Enclosure
Installing and Replacing System Components
5-11

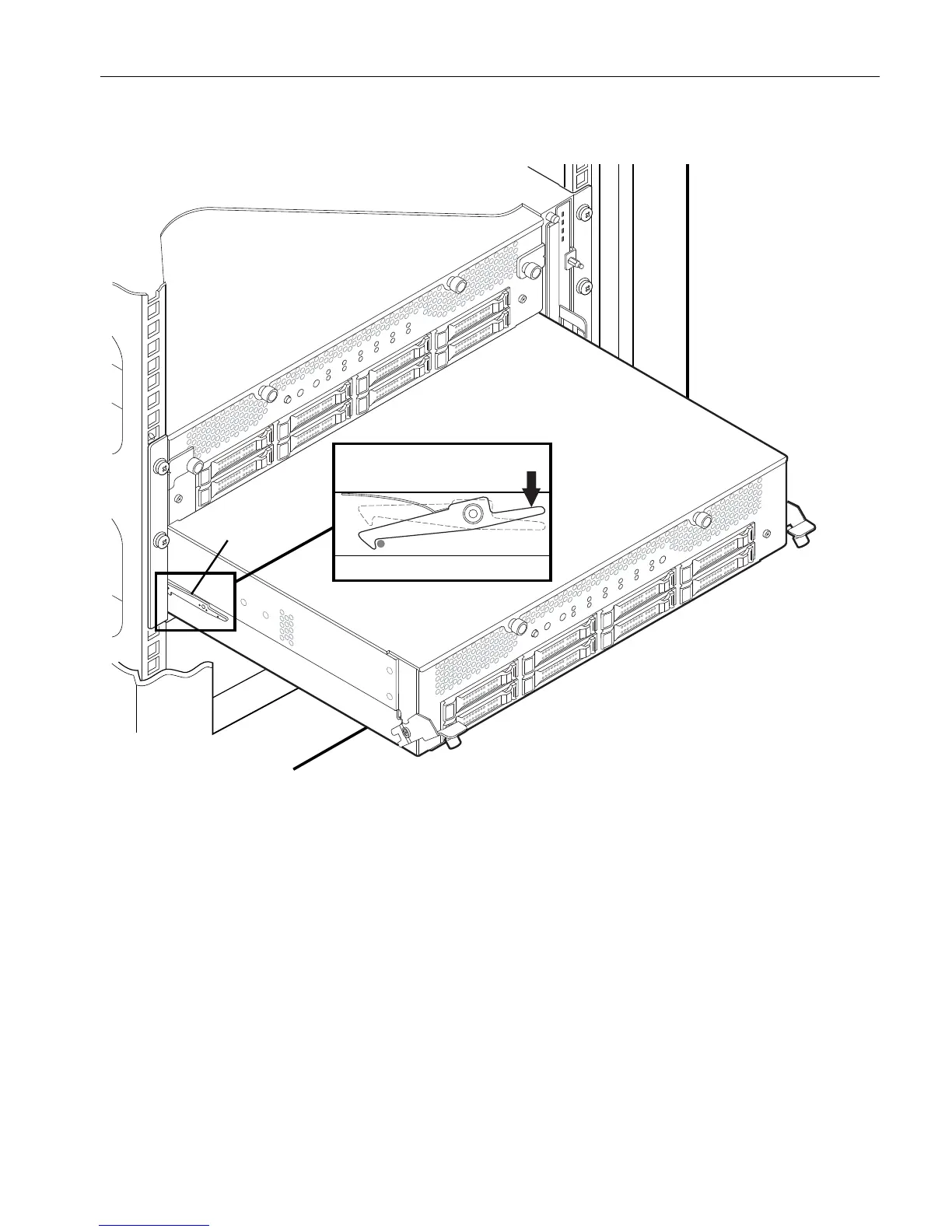

Figure 5-5. Disengaging the Safety Lever on an Enclosure
8. With each person holding a side of the enclosure, pull the enclosure straight out
and place it on a flat, stable surface.
9. If you are replacing the CPU- I ⁄ O enclosure with a new enclosure, transfer the hard
disk drives and the full-height or low-profile PCI adapters from the old enclosure to
the new enclosure.
1 Safety lever (1)
