Replacing a PCI Riser Assembly and Its Adapters
Installing and Replacing System Components
5-39
Keep track of the removed screws and brackets and keep
them in a safe place while performing this procedure.
4. Remove the bracket (number 2 in Figure 5-18) by lifting it into a semi-upright
position and removing its two lower tabs from the slots.
5. Remove the three PCI bulkhead bracket screws shown in Figure 5-20.

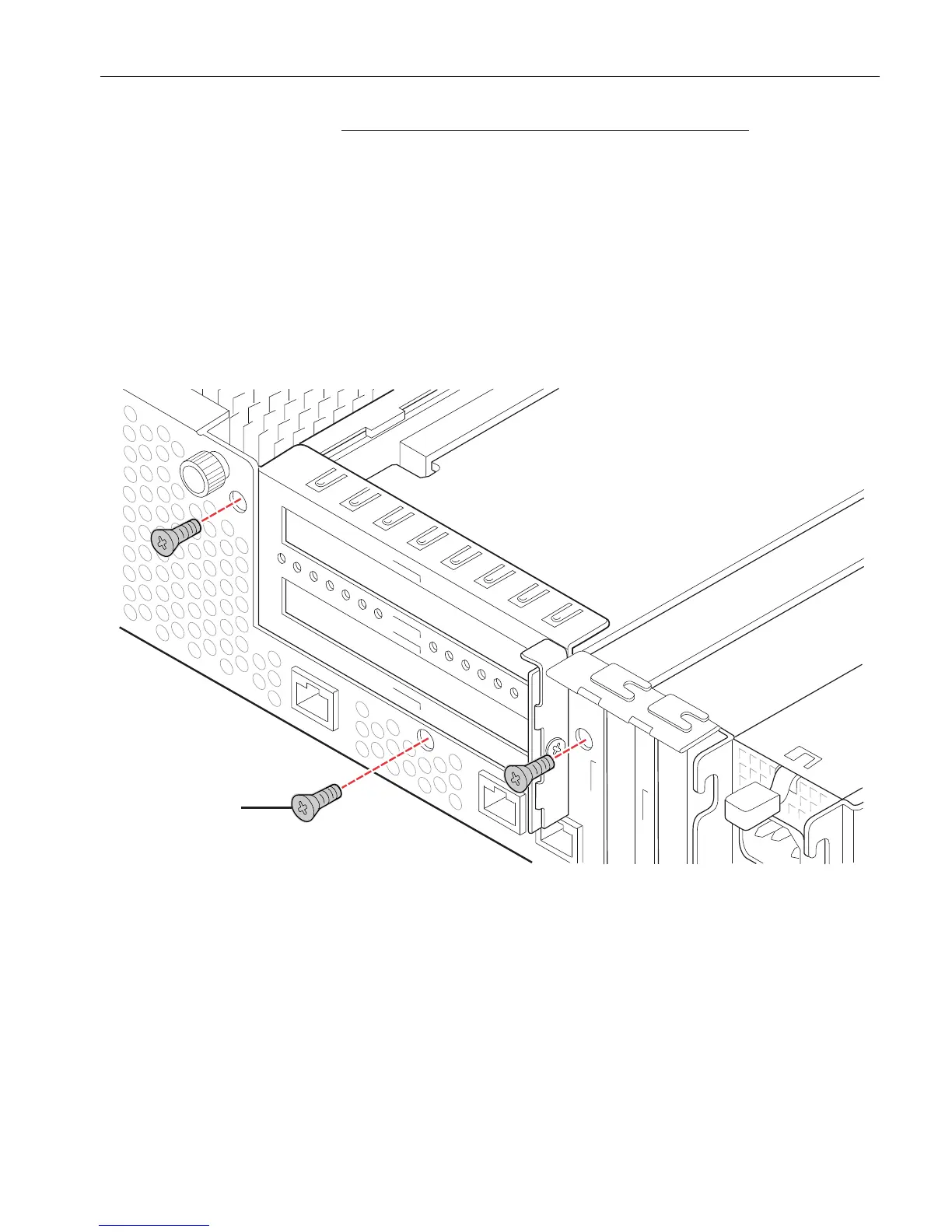

Figure 5-20. Removing the PCI Bulkhead Bracket Screws
6. If you are removing an extra-long PCI riser assembly (PCI-X), loosen the captive
screw (number 1 in Figure 5-21) that secures the inner end of the riser assembly
to the motherboard.
1 Screws (3)
