Stratus ftServer 4500 - Figure 1-5. CPU-I;O Enclosure: Interior Components, Models 4500 and 6300

System Design
Overview of ftServer 2600, 4500, and 6300 Systems 1-7

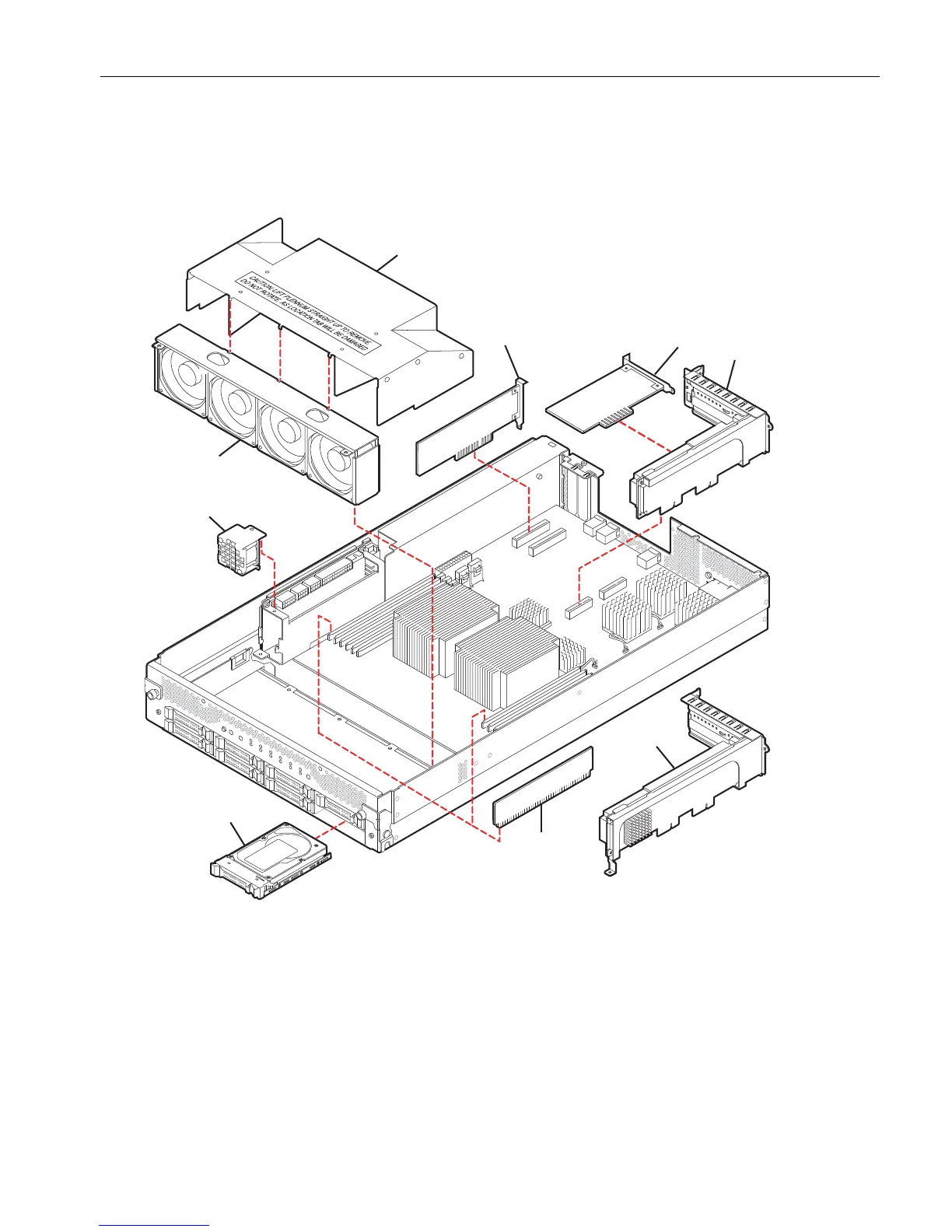

Figure 1-5 shows the interior of a dual-processor ftServer system CPU- I ⁄ Oenclosure.
Figure 1-5. CPU-I/O Enclosure: Interior Components, Models 4500 and 6300
1 Power supply fan 6 PCIe riser assembly
2 CPU-I/O enclosure fan assembly (4) 7 PCI-X riser assembly (offset from
system)
3 Plenum 8 DIMMs (6 or 12 max.)
4 Low-profile PCI adapters (2 max.) 9 Disk drives (8 max.)
5 Full-height PCI adapters (2 max.)
1
2
3
4
5
6
7
8
9
dco011b
