Video Processing Module Mouse
Video Output**
KVM Ports
DVI-I Output
* If the SDC or All-In-One Control System controls the router, this will be a DVI-I input.
** This output will be a VPM card for All-In-One Control Systems.
†
Connects to a potential equalization conductor. The resulting medical electrical system
shall follow all applicable IEC 60601-1 requirements.

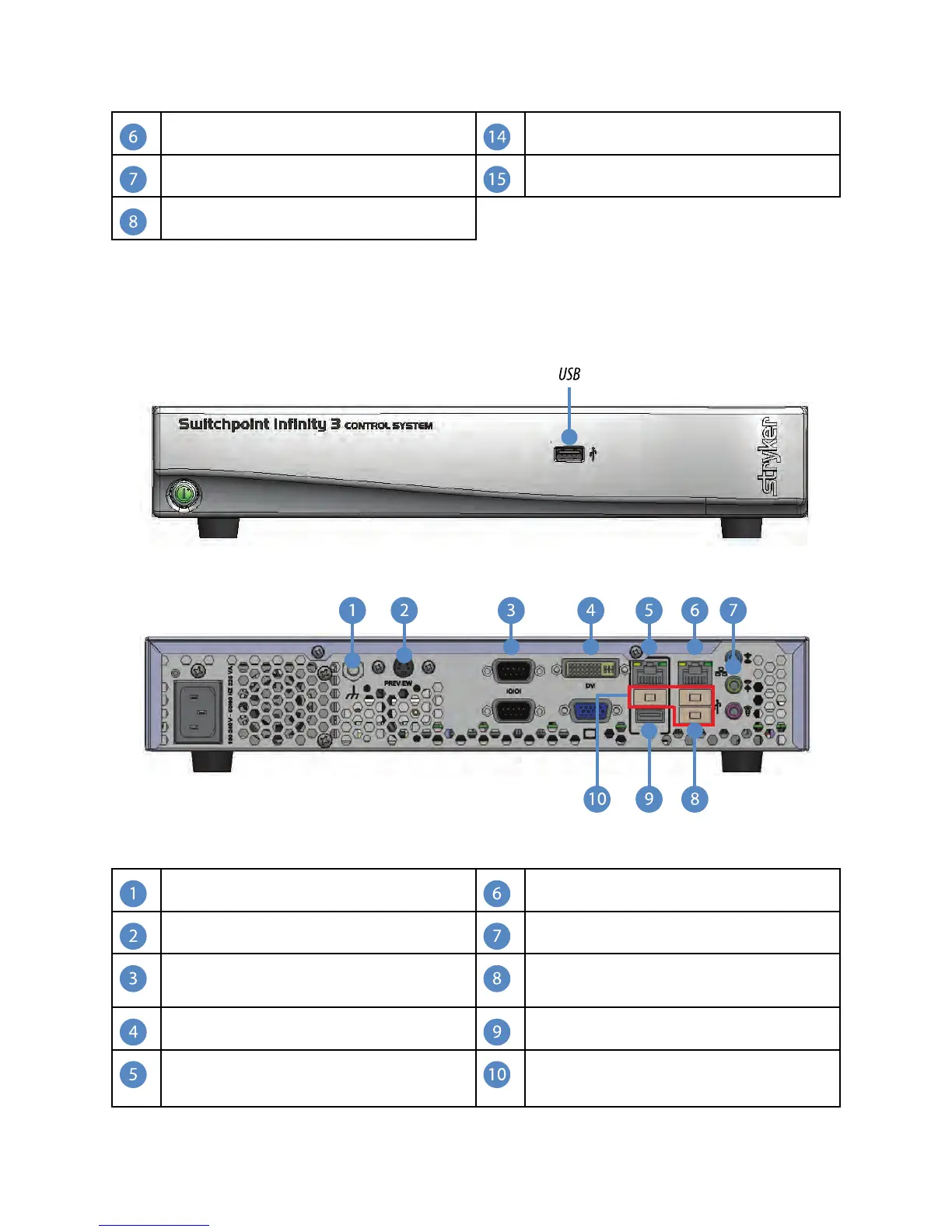

FFiigguurree 5555.. FFrroonntt ooff CCoonnttrrooll SSyysstteemm
FFiigguurree 5566.. BBaacckk ooff CCoonnttrrooll SSyysstteemm
Equipotential Ground Plug* Internet Connection
Preview Input
Audio Output
Control Connection to Main Touch
Panel
USB Dust Covers
Video Output USB Port
Ethernet Hub (Sidne) Connection Control Connection to touch panel (if
present)**
