SummaCut User’s Manual
General Information 1-22

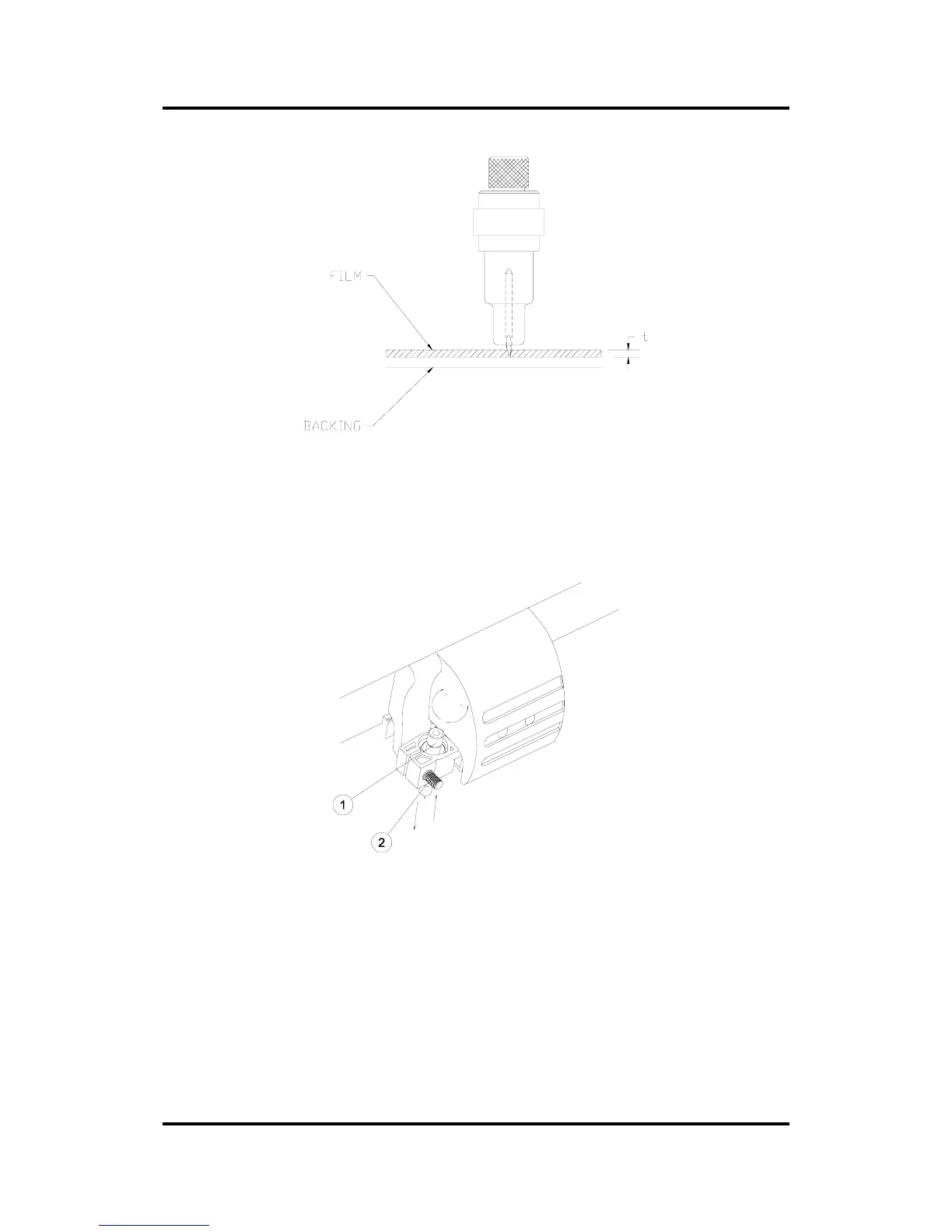

FIGURE 1-10
BLADE LENGTH ADJUSTMENT
4. Turn the cutting depth adjustment screw clockwise to increase the cutting depth.
Turning the cutting depth adjustment screw anticlockwise will decrease the
cutting depth.
FIGURE 1-11
SETTING KNIFE DEPTH
5. To install the knife into the tool carriage:
- Loosen the clamping screw and load the knifeholder. Push all the way down.
- Tighten the clamping screw.
