SummaCut User’s Manual
General Information 1-12
1.5.2 FRONT PANEL CONTROLS

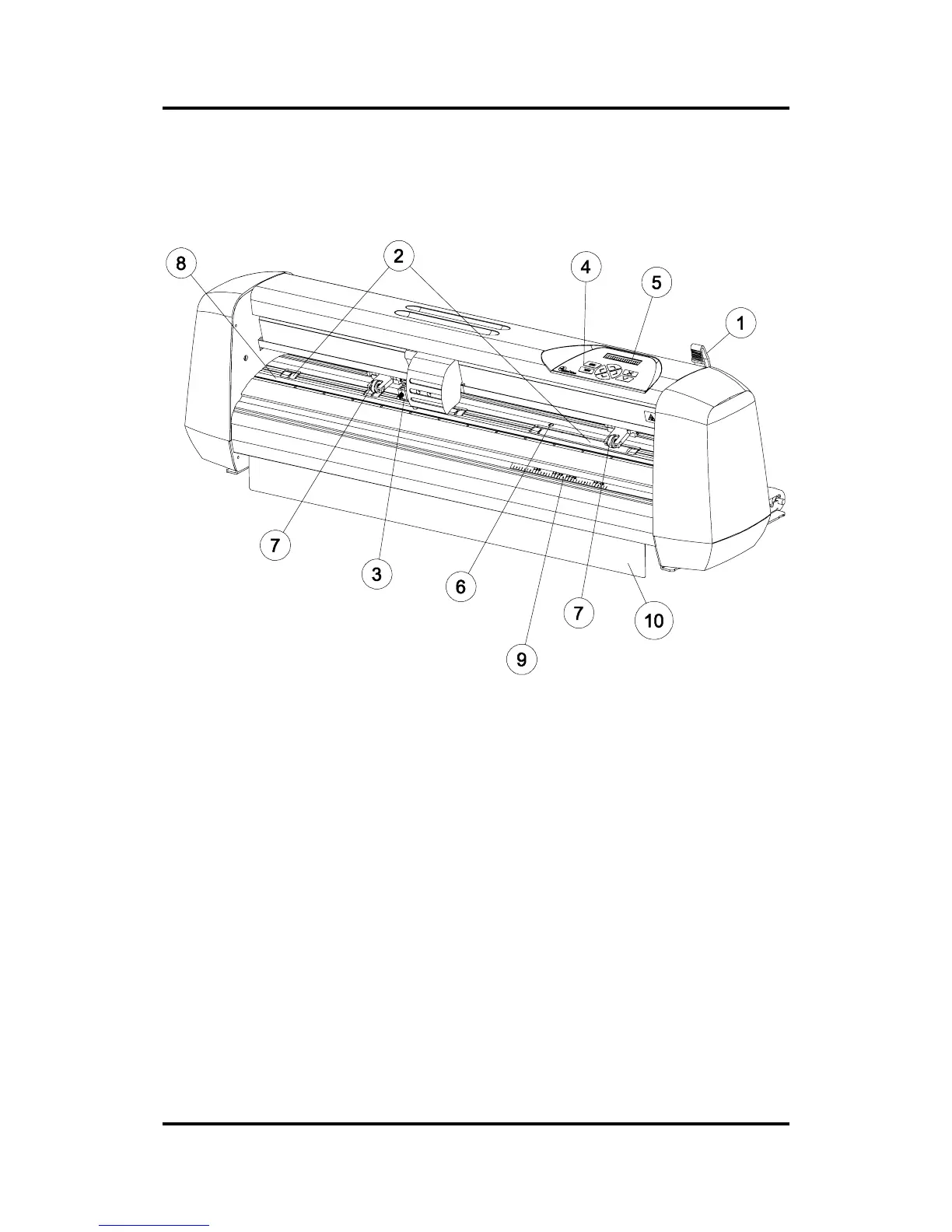

Figure 1-3 shows the location of the main components.
FIGURE 1-3:
SUMMACUT SERIES, FRONT VIEW
1. Pinch roller lever arm: - This lever is used to raise and lower the pinch rollers
during media loading (Media loading is discussed in Section 1.7).
2. Media Drive Sleeves: - The media drive sleeves move the media only when the
pinch rollers are in the ‘down’ position.
3. Tool Carriage: - The tool carriage is the mount for the knife holder and the pen.
Caries the OPOS sensor if this factory option is installed.
4. Control Panel: - The control panel contains 8 keys. All cutter activity can be
initiated from the control panel. Each control panel function is explained in
Section 2.1.
5. Display: - The 16-character display informs the user about the current status of
the cutting process or actions, which need to be taken.
6. Sensor: - The sensor detects the end of media to avoid any damage to the
cutting strip.
