SummaCut User’ s Manual
Maintenance and Cleaning 4-2

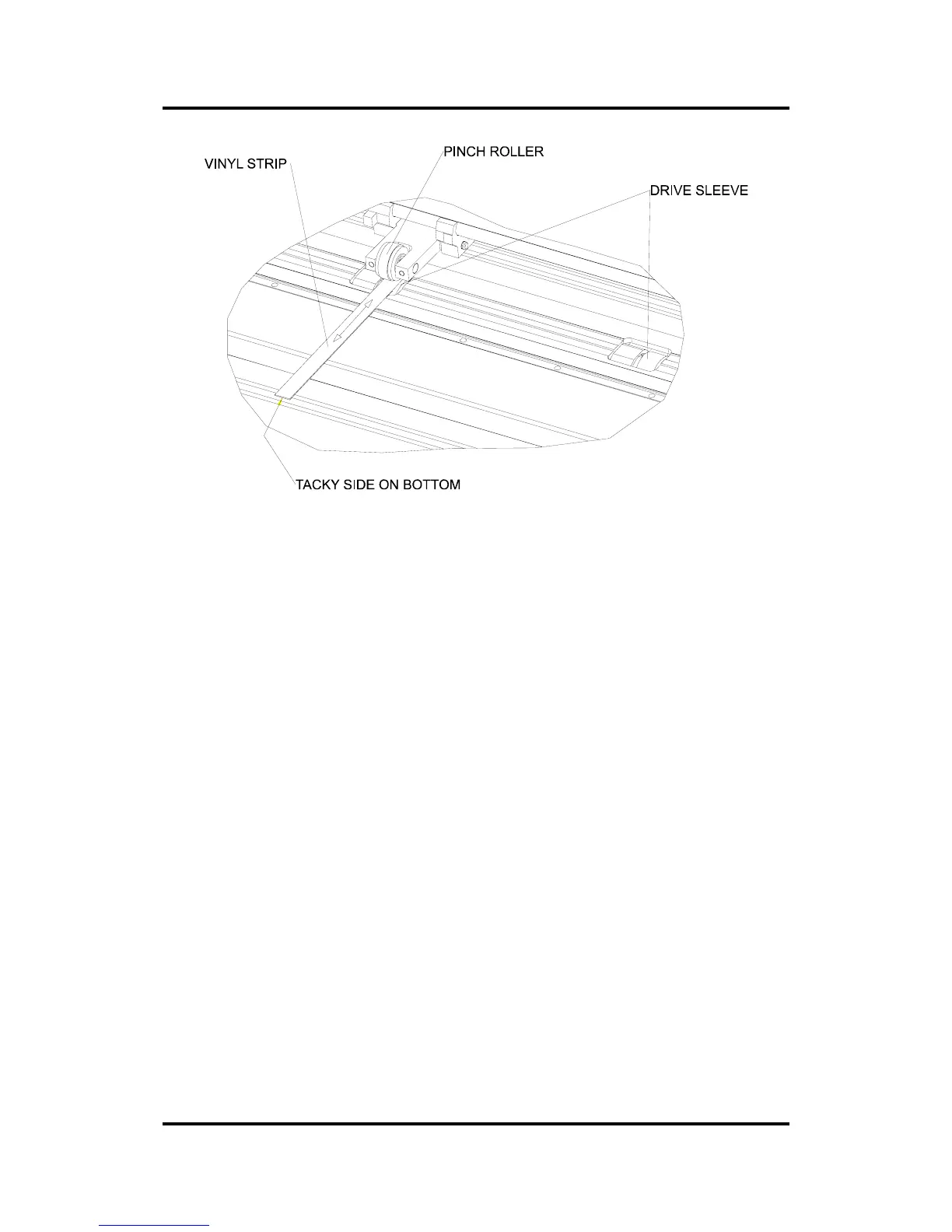

FIGURE 4-1:
CLEANING THE DRIVE SLEEVES
4.1.2 CLEANING THE SENSOR
After a certain time, the sensor may become dirty with accumulated residue from the
media. This situation may cause malfunctioning of the cutter.
To clean the sensor area, proceed as follows:
1. The sensor is located on the cutter’ s right side just behind the right big sleeve (refer
to fig 1-2).
2. To keep the sensor clean, it is sufficient to wipe it out now and then with a cotton
swab.
