6-36 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004
■ To create a total of 1024 LUNs, see “Planning for 1024 LUNs (Optional, Loop
Mode Only)” on page 6-37.
Each ID/LUN looks like a storage device to the host computer.

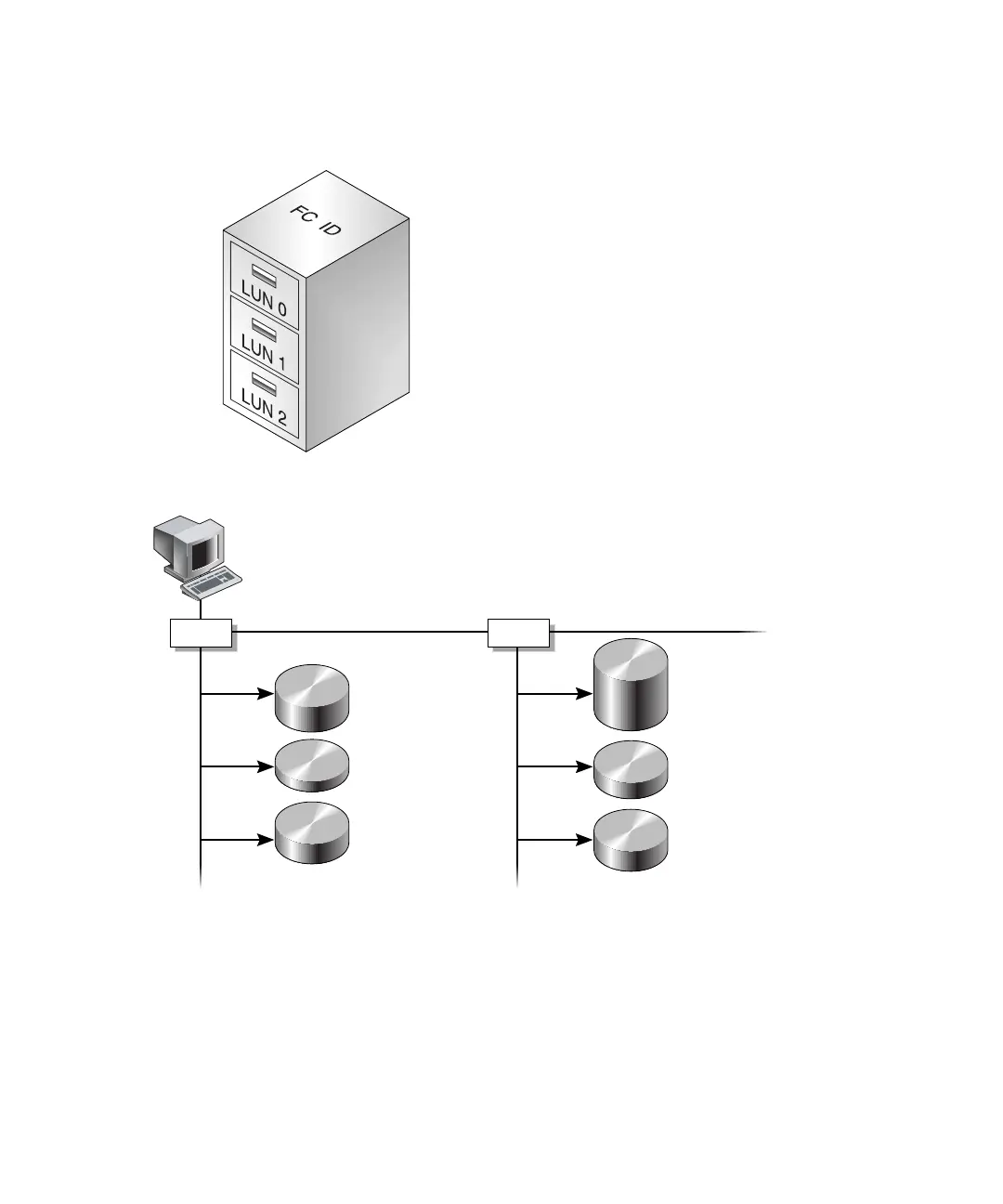

FIGURE 6-5 Mapping Partitions to Host ID/LUNs
ID 0 ID 1
LUN 0
LUN 1
LUN 2
LUN 0
LUN 1
LUN 2
1 GB
2.5 GB
1.5 GB
5 GB
2 GB
2 GB
Channel 3
Channel 1
Logical drive 1
Partition 0
Logical drive 0
Partition 1
Logical drive 1
Partition 2
Logical drive 0
Partition 2
Logical drive 1
Partition 1
Logical drive 0
Partition 0
