4-16 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004
■ The lower I/O controller module has SFPs in the FC1, FC3, and FC5 ports.
This configuration provides connections to all six host channels as well as to both
drive channels (see
FIGURE 4-11 and FIGURE 4-12).

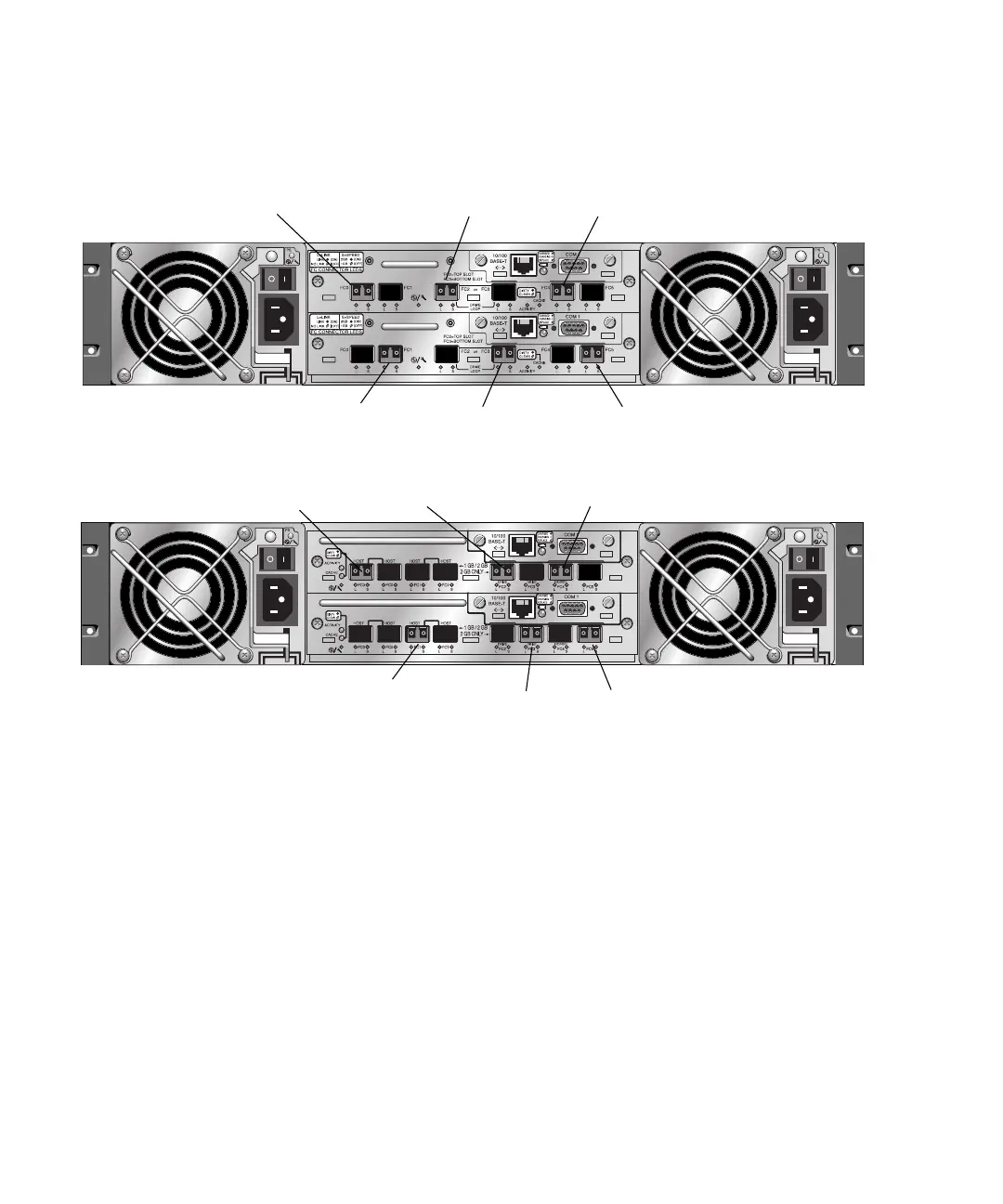

FIGURE 4-11 Default Dual-Controller Sun StorEdge 3510 FC Array SFP Placement
FIGURE 4-12 Default Dual-Controller Sun StorEdge 3511 FC Array SFP Placement
In the default single-controller array, SFPs are initially plugged into:
■ FC0
■ FC1
■ FC4
■ FC5
No SFPs are plugged into the drive channels. This configuration is appropriate for
connecting to up to four hosts or fibre switches, with no connection to expansion
units (see
FIGURE 4-13 and FIGURE 4-14).
Host port FC0 Drive port FC2 Host port FC4
Host port FC1
Drive port FC3
Host port FC5
H/D/RCC
H/D/RCC
Host port FC0
Host port FC1
Drive port FC2
Drive port FC3
Host port FC4
Host port FC5
