OPERATION & MAINTENANCE MANUAL SWE18UF
93
Check the hoses and pipes…every day
…every 200
hours

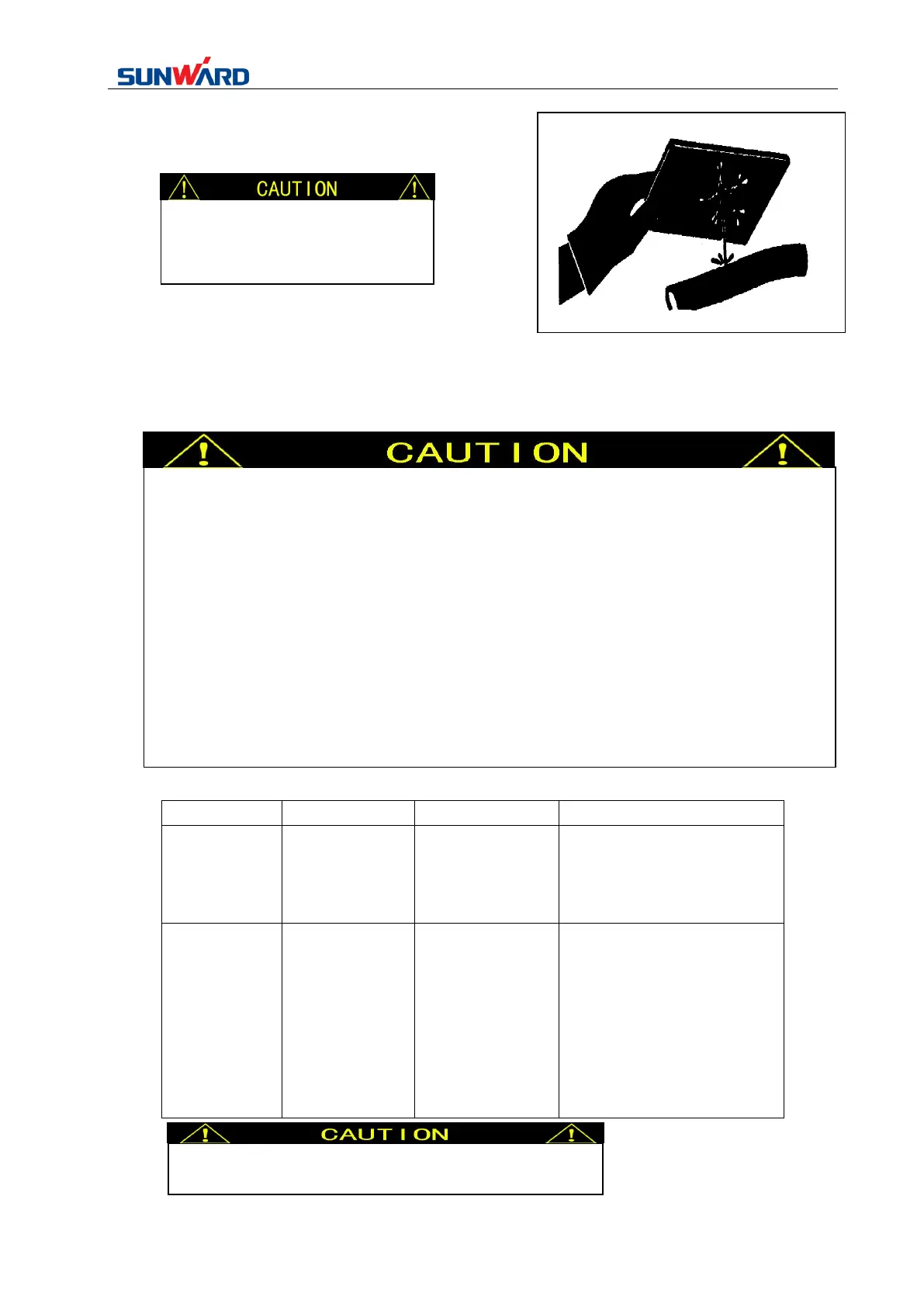

Inspect leakage with a cardboard, pay attention to
protect your hands and body not touching high
pressure liquids. If accident occurs, see the doctor at once. Any liquids penetrated in skin must be
cleaned within a few hours. Otherwise it will cause necrosis.
Hose inspection
Interval hour
Check point
Abnormality
Solution
Every day
Hose surface
Hose end
Connector
leakage
leakage
leakage
replace
replace
fasten or replace
hose or O ring
Every 200
hours
hose surface
hose end
hose surface
hose surface
hose
hose
hose end and
connector
crack
crack
out coming of
enhanced material
parts protrusion
bending
distortion and
eroding
replace
replace
replace
replace
replace
replace(adopt proper bending
radius)
replace
FIG.5-10
Please use the original components of SUNWARD only.
FIG.100
FIG.98
Never start engine when the hydraulic oil tank is
empty.
The jets of high pressure liquids
can penetrate skin and cause
serious damage.
The leakage of hydraulic oil and lubricant can cause fire and damage of human body,
in order to prevent this danger:
 Park the excavator on a firm level ground.
 Lower the bucket to ground.
 Idle the engine for 5 minutes.
 Stop the engine in a correct manner and take out the key from key switch.
 Put pilot control lever to LOCK position.
 Check the twist, the wear between other parts, leakage of fuel hoses. Replace or
fasten them immediately if there is any abnormality. (Refer to the table below)
 Fasten loosened clamp, hose, pipeline and flange bolt of oil cooler, repair
or change the damaged or lost one. Don’t bend or collide the high pressure
pipe. Never install bended or damaged hoses and pipeline.
