SUNWARD SWE18UF - Cab

OPERATION & MAINTENANCE MANUAL SWE18UF
43

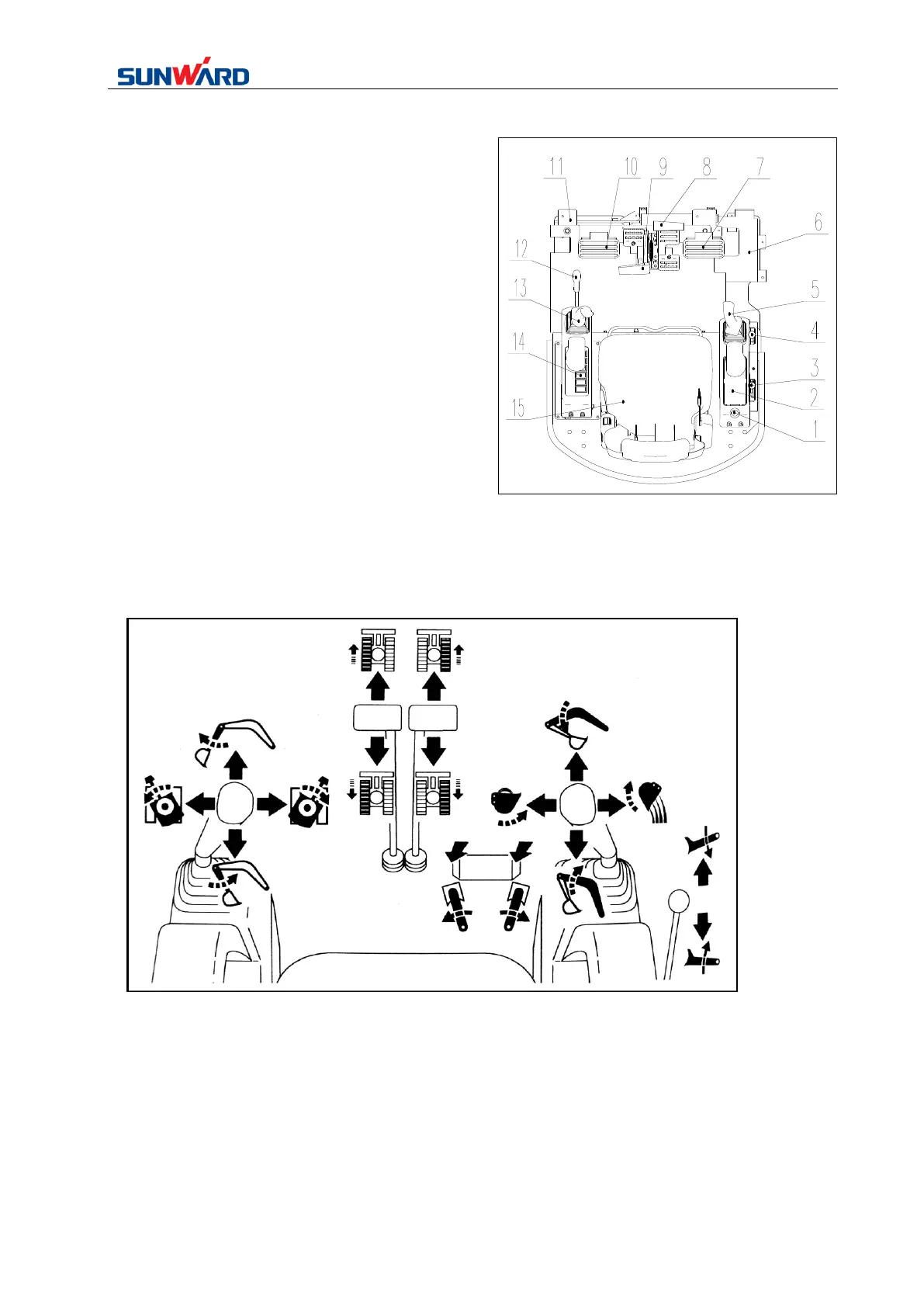

3.2 CAB
1 Engine starting switch
2 Monitor
3 Engine throttle control lever
4 Dozer blade (chassis retraction & extension)
lever
5 RH joystick
6 Battery
7 Boom swing pedal
8 Right-travel control lever
9 Left-travel control lever
10 Auxiliary control pedal
11 Battery switch
12 Pilot safety lever
13 LH joystick
14 Rocker control switch
15 Seat
FIG. 3-3
FIG. 3-2
