4.4 TRAVEL CONTROL
3.4.1 Travel with Foot Pedal

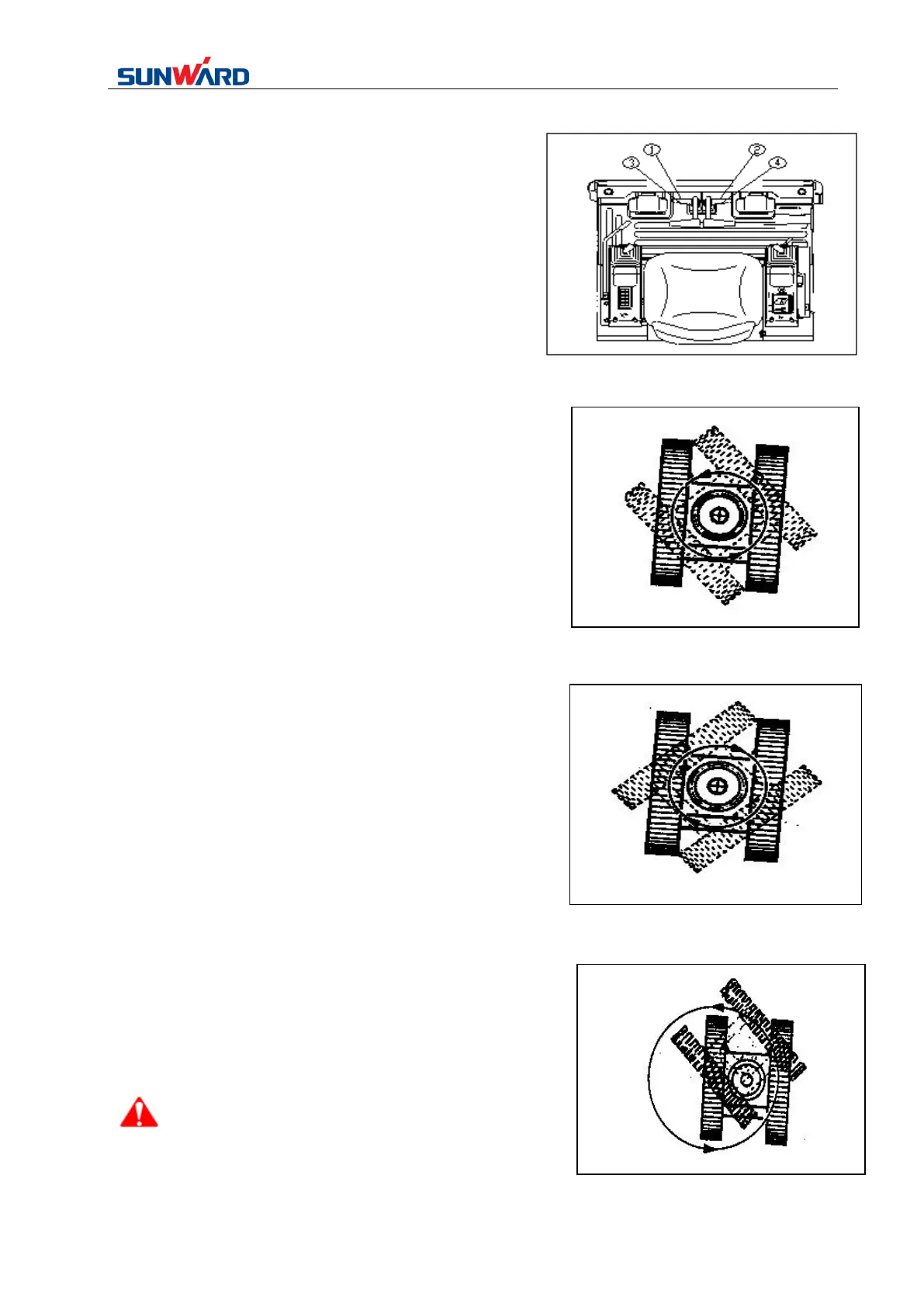

1) Straight travel: Step on two pedals forward at the same time.
(pedal 1 and 2 in FIG. 3-8)
2) Straight reversing: Step on two pedals backward at the same
time. (pedal 3 and 4 in FIG. 3-8)
3) Turning in one point
 Turn left (FIG.3-9): Step on right pedal forward and left
pedal backwards.
(FIG. 3-8)
 Turn right (FIG.
3-10): Step on
right pedal
backward and left
pedal forward.
4) Make a turn with one-side crawler (FIG.3-11)
 Left Turning: Step on right pedal forward. (as 2 in FIG. 3-8)
 Right Turning: Step on left pedal forward. (as 1 in FIG. 3-8)
Warning:
In order to protect travel mechanism, turning should
be avoided while backing.
