Set the pedal to the lock position when
it is not used. If not, if any controls
should be touched accidentally when the
pedal has not been locked, it may cause
serious accidents. To lock the pedal,
put the lock pedal on them.
4.8 BOOM SWING
The boom swing pedal locates at the position of operator’s right foot, it is used to swing boom, but the
upper-structure (cab, engine, etc.) won’t slew when operating this pedal.

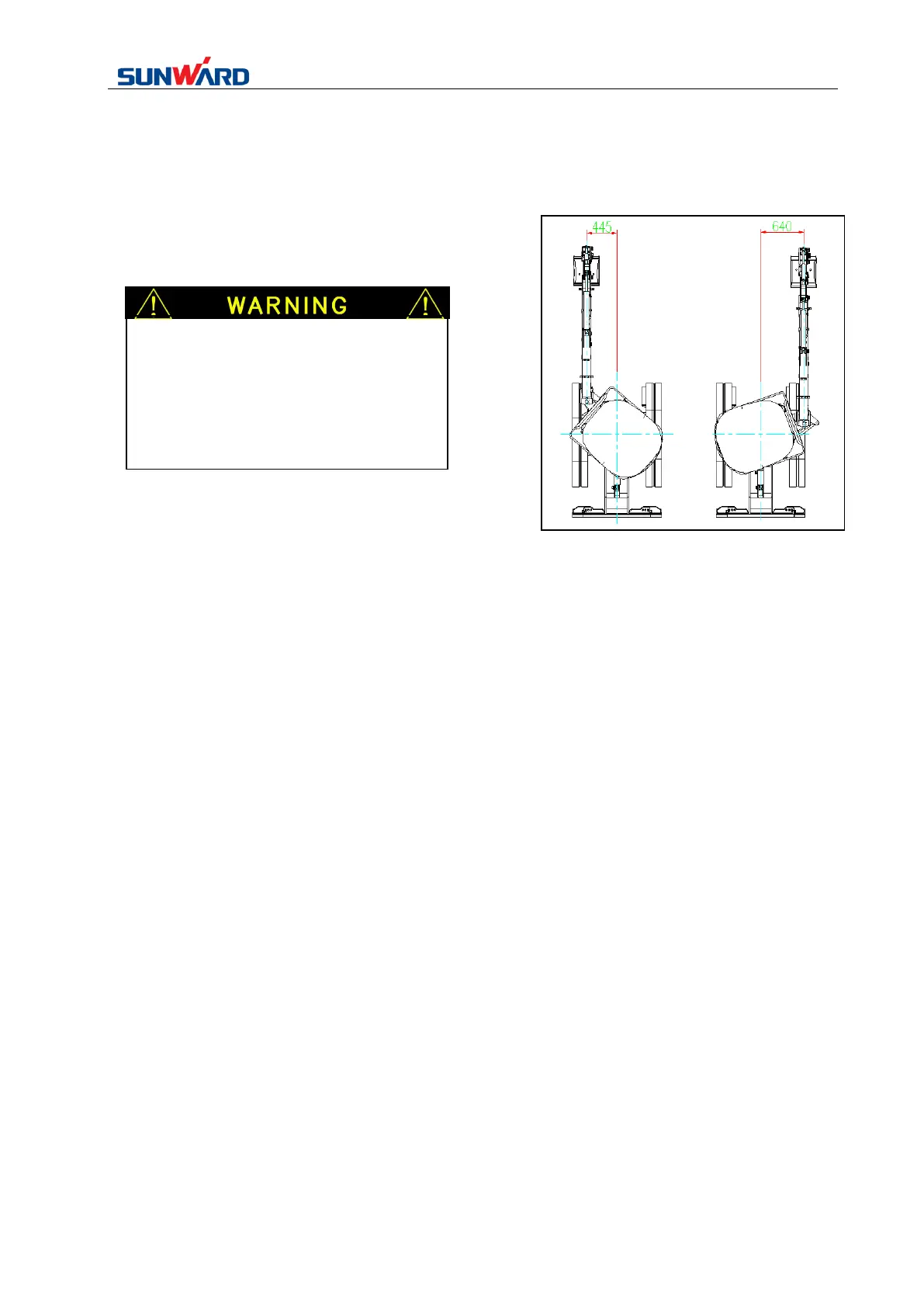

The right figure shows the maximum boom swing distance
from upper-structure central line.
Put the lock pedal on the pedal to lock them.
FIG.4-31
图.3-42
