3.9 PILOT CONTROL JOYSTICK

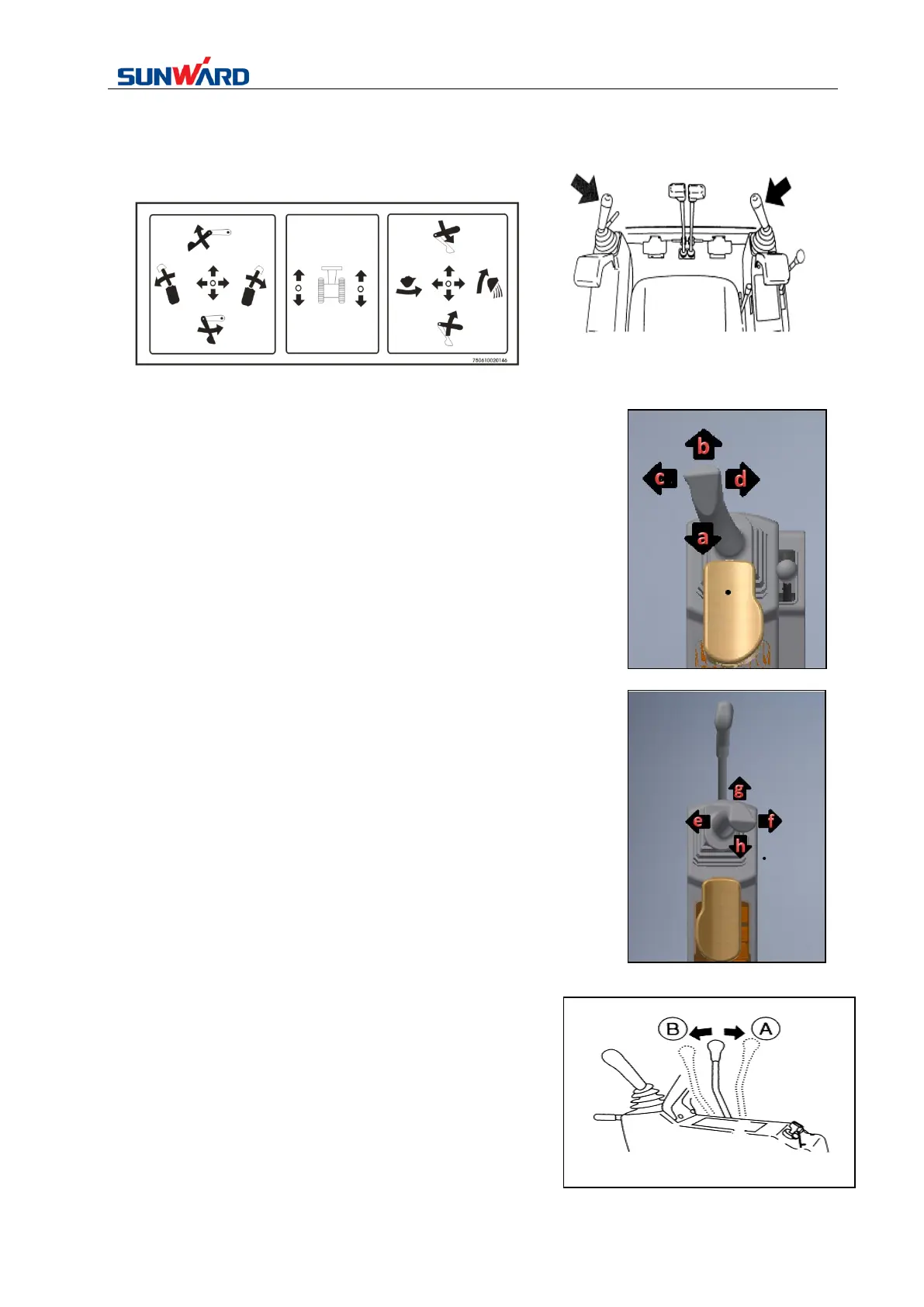

Operation marks：
Before operation, figure out each control lever for each part carefully.
The instructions on this manual are made in accordance with the
international standard.
Use these levers to control boom, arm, bucket, swing, boom deflection
and dozer blade.
Right Joystick, following motions are controlled.
a —— lift boom
b —— lower boom
c —— backhoe bucket load, or bucket in
d ——backhoe bucket dump, or bucket out
Left Joystick, following motions are controlled.
e—— rotate upper-structure anticlockwise
f —— rotate upper-structure clockwise
g —— extend arm
h —— retract arm
Compound movements can be achieved by operating two
joysticks together. Besides, horn switch is equipped on
right pilot joystick.
Dozer (Chassis) control pedal
This control lever can control the dozer by the composition
operation with the transfer switch of dozer blade and
undercarriage extension & retraction on the left control box.
(A)－lift the dozer /shorten track gauge
(B)－lower the dozer/widen track gauge
