OPERATION & MAINTENANCE MANUAL SWE18UF
50
Set the pedal to lock position when it is not being used, if
the pedal has not been locked and be stepped on
accidently, serious accidents may cause!
These devices are used to lock the boom swing and
auxiliary pedal. You can lock the pedal by putting the lock
pedal on the pedals.

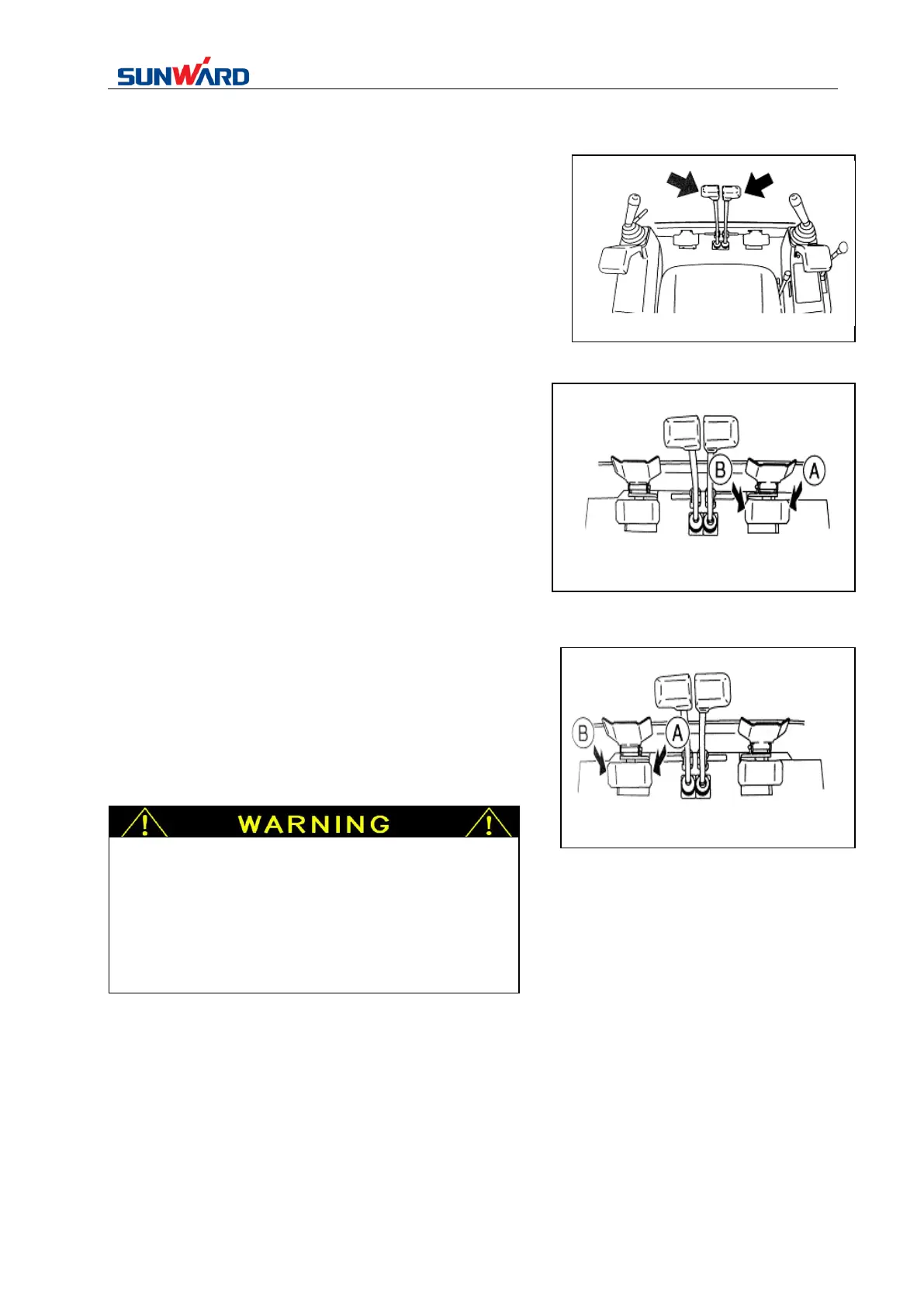

Travel control lever
Make sure that the dozer is at the foreside of the operator’s seat
before operating the traveling control lever. The operating
direction and machine travel direction is opposite when the dozer
blade is at the back of the operator’s seat.
The travel control lever can control the machine go forward or
backward or change the direction of traveling.
Refer to the page of “operation of travel handle”.
Boom swing control pedal
This pedal is used to control the boom swing.
(A) Boom swing rightward
(B) Boom swing leftward
F. Auxiliary control pedal
This pedal is used to control the hydraulic oil of auxiliary
hydraulic circuit
(A) Hydraulic oil flows to the right auxiliary pipe
(B) Hydraulic oil flows to the left auxiliary pipe.
3.10 COOLING FAN SHROUD & HOUSING COVERS
Cooling fan shroud:
The engine should be equipped with air ducting hood to prevent foreign materials from being reeled into fan
which disturbs the normal work of fan. On the other hand, the assembly of air ducting hood can prevent
accidents caused by carelessly putting hand into the fan. It is equipped with mounting plate on both left and
right and is connected with the water tank.
