OPERATION & MAINTENANCE MANUAL SWE18UF
63
FIG.4-6
图.3-13

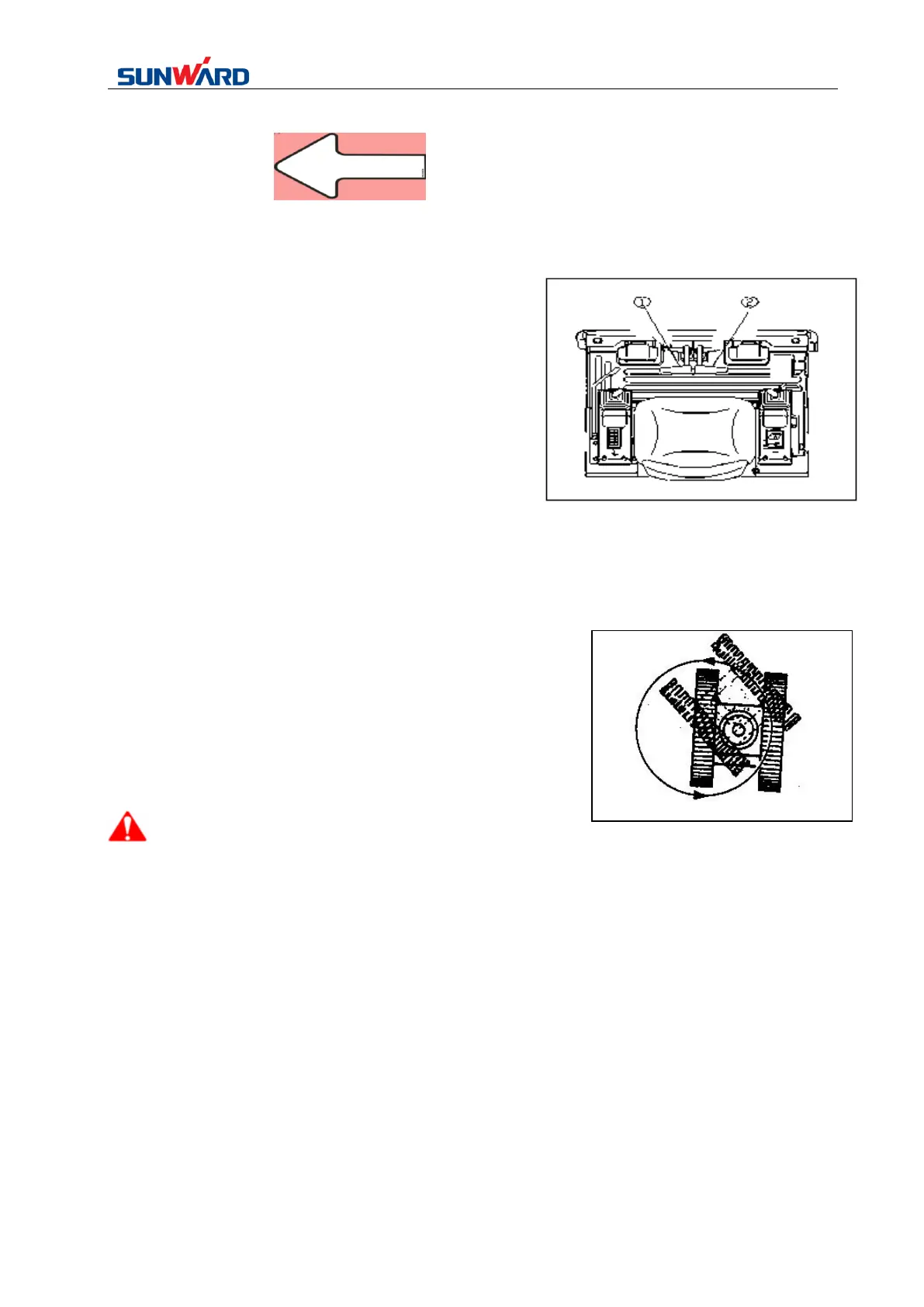

Travel direction label: (this decal is
located on outer side of both left and right track beam.)
4.4.2 Travel with Control Levers
If traveling should be adjusted slightly, operate that by joystick
control. This method is safe and reliable and suiting for loading
and unloading the machine to a trailer.
1) Straight travel: Push two joysticks forward at the same
time (1 and 2 in FIG. 3-12).
2) Straight reversing: Pull two joysticks backward at the same
time. (1 and 2 in FIG. 3-12)
3) Turning in one point
 Left Turning: Push right joystick forward (2 in FIG. 3-12)
and pull left joystick backward (1 in FIG. 3-12).
 Right Turning: Pull right joystick backward (2 in FIG. 3-12)
and push left joystick forward (1 in FIG. 3-12).
4) Turning with one side crawler (FIG. 3-12)
Left Turning: push right joystick forward (2 in FIG. 3-12).
Right Turning: push left joystick forward (1 in FIG. 3-12).
Warning:
In order to protect travel mechanism, turning should be avoided while backing.
4.4.3 Travel Speed
When the machine is traveling, press high/low speed switch ⑥on control panel( FIG 2-5), the shift of travel
motor high and low speed is achieved, then the machine can travel at high or low speed.
4.4.4 Travel Brake
Release travel pedal or travel handle, it will return to neutral position automatically, the machine stops
traveling.
FIG. 4-5
图. 3-12
