OPERATION & MAINTENANCE MANUAL SWE18UF
47
Failure to comply may damage the engine.
① — OFF （Engine shut-down）
② — ON （Power on）
③ — HEAT（Preheating）, release the key, and the switch return to “ON” position automatically.
④ — START（Engine starting）Start engine and release the key, the switch return to “ON”position.
3.6 SEAT

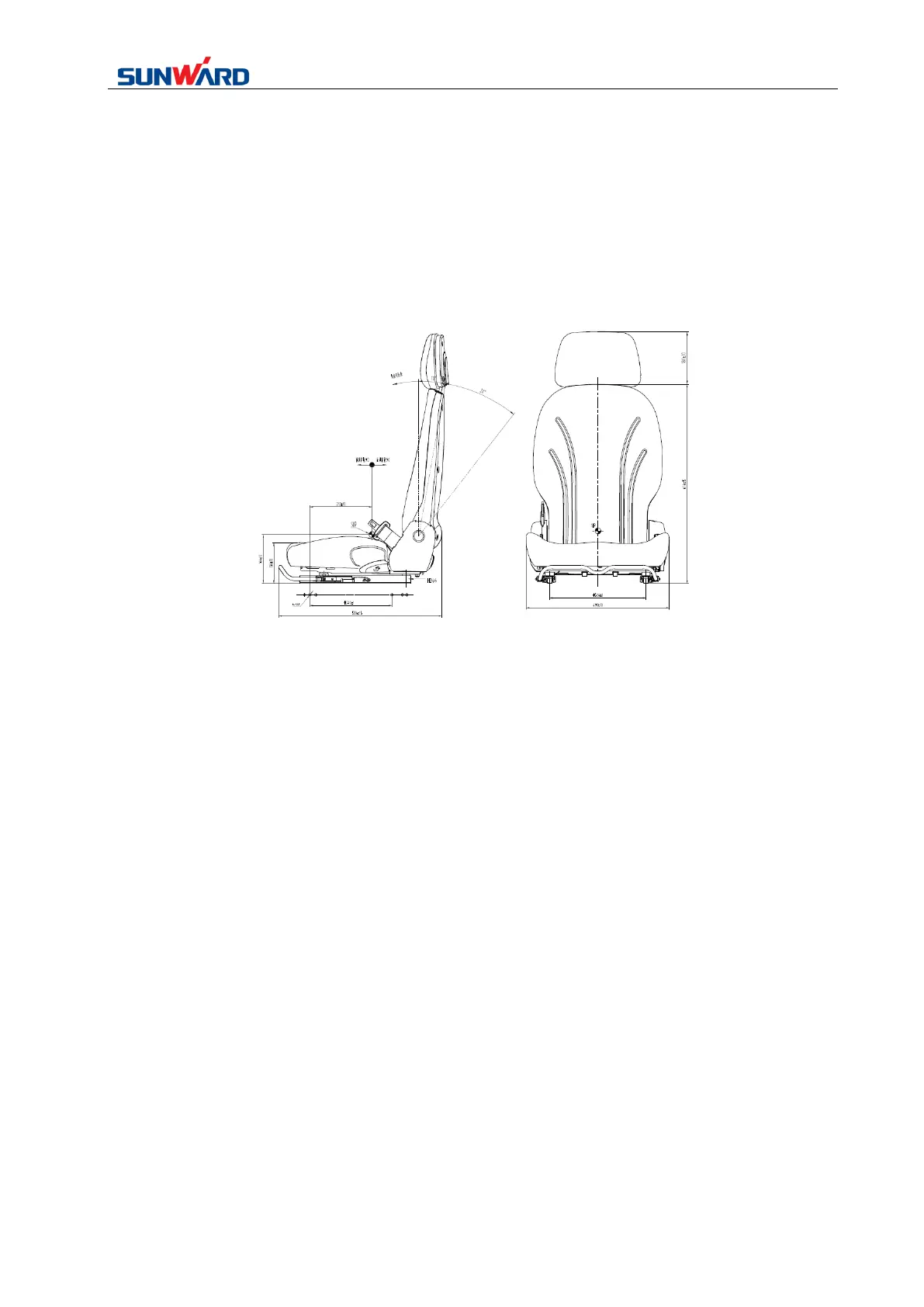

The seat SC29-51 is a luxury seat designed for engineer machinery. Its backrest and sponge
surface are designed according to ergonomics, making you feel more comfortable. The seat can
be adjusted forward and rearward and the backrest angle also can be adjusted.
Technical Features
(1) The Forward and afterward travel of the seat is 180mm (For:90mm, Aft:90mm)
(2) The stepless adjustable angle scope of the backrest: 15°-108°.
Operation Instruction
(1) Forward & Afterward adjustment
Put up the adjustment knob by your hand, then pull or push knob forward or backward to the
proper position you want, and then release the knob, the slider will lock automatically.
(2) Backrest adjustment
Put up recliner knob, then rotate the backrest to the proper position you want, release the
knob to lock the backrest.
(3) Weight adjustment
Turn the weight adjust handle in accordance with the operator’s weight, making operator
feel comfortable by cushion pad.
Caution
(1) Only adjust the seat when the driver is in safety status.
(2) For slider and recliner adjustment, please make sure the knob in the proper position; only
when the adjustment mechanism parts are separate can you do the adjustment.
(3) After all the adjustment, please make sure every knob stays in proper position and every part
