Operation of the Machine
MA6 / MA8 - 1. Operation of the Machine - Rev.05 07-06
5
1
1.1.4 Components of the Exposure
Optics
The components of the optical system are depend-
ing on the used lamp house system.
The UV400, UV300, and UV250, exposure optics
are similar in design. The optical system consists of
an exposure lamp, ellipsoidal mirror, cold light mir-
ror
fly’s eye lens, condenser lenses, lens plates, turn-
ing
mirrors and a front lens as shown in the adjacent fig-
ure.
The following lamp houses are available:
•LH350
• LH1500/1000
•LH5000

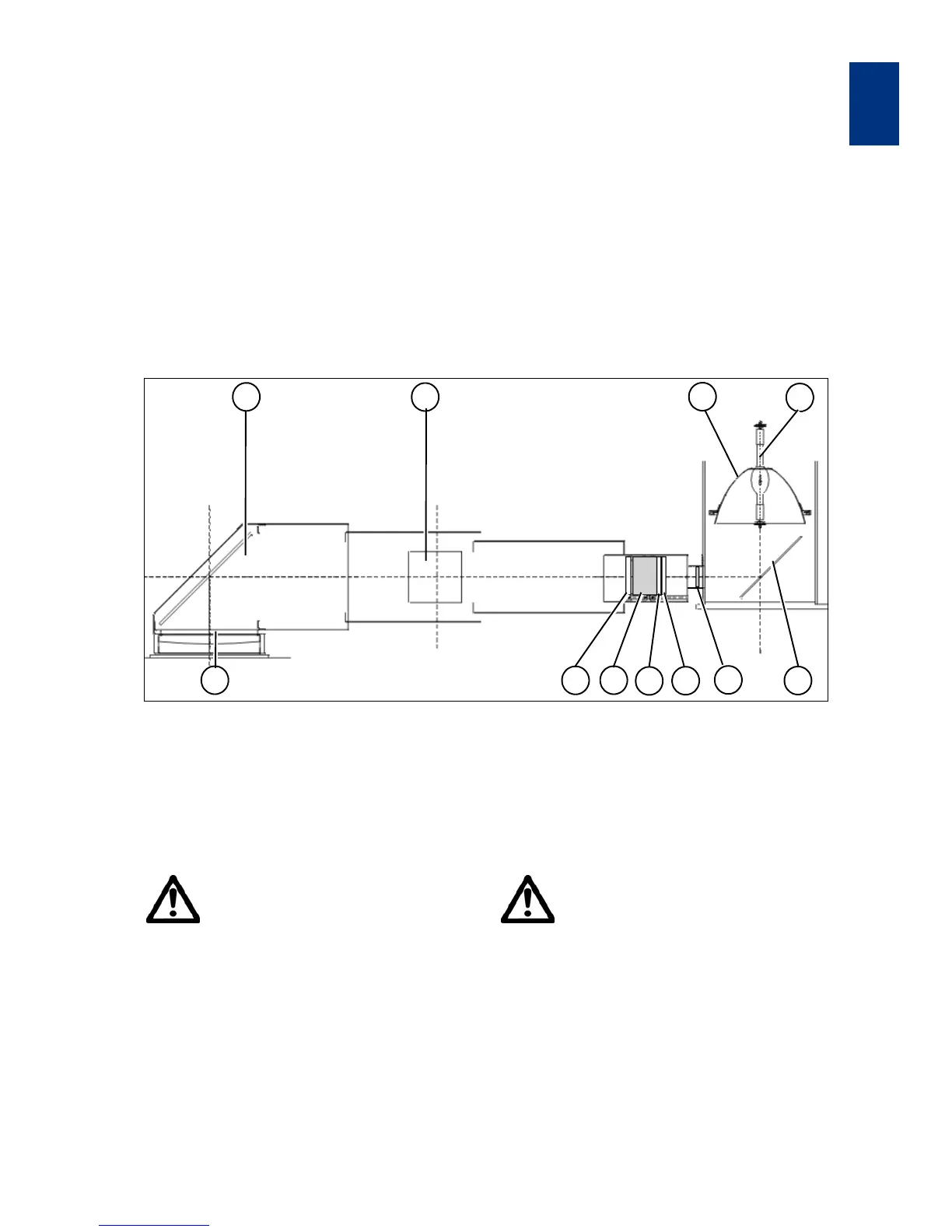

Exposure Optics MA 8 with LH1000
1 Exposure Lamp
2 Ellipsoidal Mirror
3 Cold Light Mirror
4 Fly’s Eye Lens or Glass Window
5 Condenser Lens
Warning!
UV light can harm eyes and skin.
Work on optical components should
be done with the exposure lamp
switched off, or at least with closed
lamp house shutter. If lighting is es
-
sential for adjustment purposes, wear
UV protecting goggles and skin protec-
tion.
6 Filter, optional
7 Integrator Block
8 Field Lens
9 Turning Mirror
10 Front Lens
Essential Note!
Accurate arrangement of optical com-
ponents is essential for the quality of
exposure.
Modify positions or components only if
trained for this job, and when the ap
-
propriate adjustment procedure is
available.
Also orientation of lenses and the cold
light mirror must not be changed.
1
4
10
8
7
6
5
9
2
3
9
