1.2.4.2 Dual Video Microscope DVM 6/8
Before using the microscope make secure the ILLU-
MINATION TSA (210) is on and the BSA MICRO-
SCOPE key is off.
401 BEAM SPLITTER TSA
On this microscope not necessary.
402 TSA Z-MOVEMENT Knob
Turn this big knob to focus the microscope coarse.
403 TSA Θ-MOVEMENT knob
Rotates the microscopes around the z-axis by turn-
ing the knob located in the upper right TSA micro-
scope front.
404 OBJECTIVE FOCUS FINE MANUAL knob
This is a motorized focus here.
405 OBJECTIVE X-SEPARATION knobs
The right/left objective can move independently in x-
direction by the big knobs located in the right/left side
of the TSA microscope body.
406 CLAMPING SCREW
Does not exist at this microscope.
407 APERTURE TSA-Illumination
This right/left aperture at TSA-microscope front ad-
justs the illumination for the right/left TSA-objective
separately.
408 TSA SPLITFIELD switch
This function is electronically realized. See the manual
for the corresponding image processing system.
409 Turret
Turn the knurled ring to move another objective into
the beam.
1.2.5 Lamp House Controls
Lamp house LH 350 and LH 1000

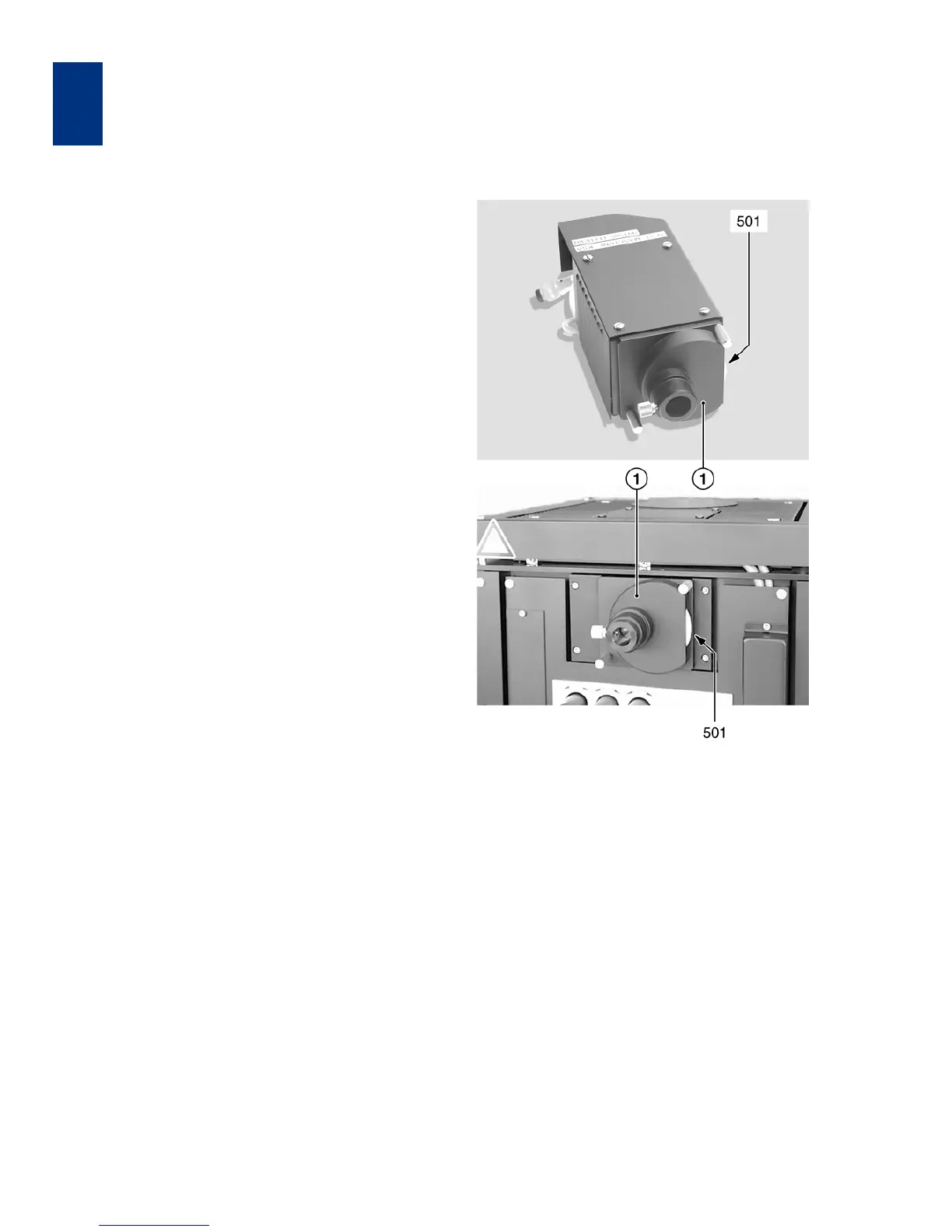

501 Illumination adjustment coarse
1 Thumb wheel housing
501 ILLUMINATION ADJUSTMENT COARSE
For a coarse adjustment of the light intensity turn the
thumb wheel at the microscope light source. Turn
clockwise / counterclockwise to open/close the ap
-
erture. The big thumb wheel ILLUMINATION AD-
JUSTMENT COARSE (501) has a diameter of nearly
5 cm, 0.5 cm thick.
For the lamphouse LH 350 find the adjustment wheel
behind the lamp house. It might be necessary to re
-
move the left stainless steel cover of the lamphouse
to have access to the microscope illumination.
For the lamphouse LH 1000 find the adjustment
wheel on the upper front side of the lamphouse.
Lamp exchanging is possible opening the two
knurled screws.
