SUSS MA6 - Page 50

MAINTENANCE
42
OP MA6-8/BA6-8 E Rev05 07-06 Maintenance
2

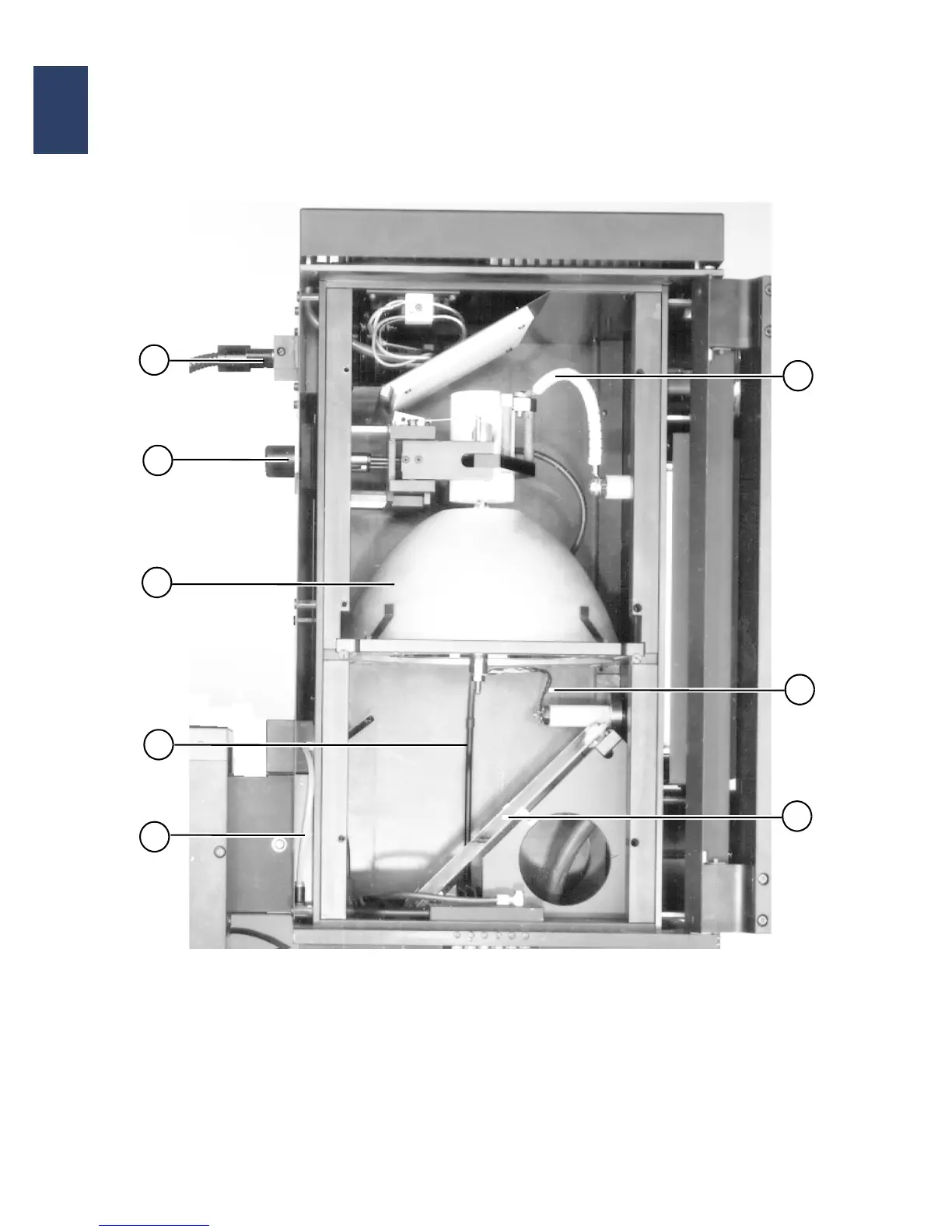

2.3.2.1. Interior of the Lamp House
LH1000
1 Microscope illumination, fiber optics
2 Ellipsoidal mirror
3 Nitrogen supply tubing
4 Shutter (not visible)
5 Connecting cable, cathode (-) of exposure lamp
6 Connecting cable, anode (+) of exposure lamp
7 Cold light mirror
8 Adjustment knobs for position of exposure lamp
(X,Y,Z)
5
1
2
3
4
7
6
8
