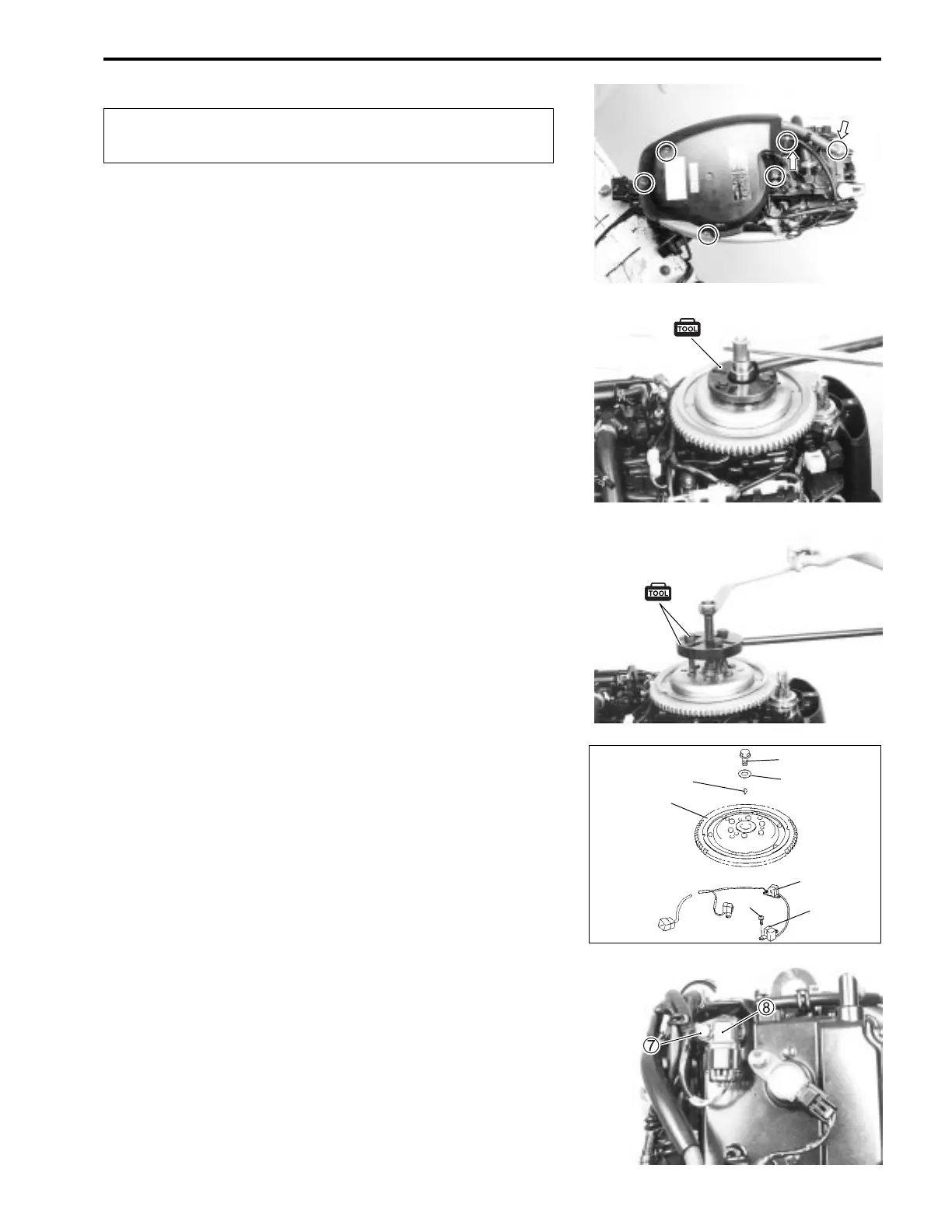

ENGINE CONTROL SYSTEM 3-48
REMOVAL
Prior to removing Flywheel :
• Disconnect battery cables from battery.
1. Remove flywheel cover.
2. Loosen flywheel bolt 2 – 3 turns.
09930-48720 : Flywheel holder
NOTE:
Do not remove flywheel bolt at this time.
This bolt prevents damage to the crankshaft when using fly-
wheel remover tools.
3. Using special tools, loosen flywheel from crankshaft.
09930-39411 : Flywheel remover
09930-39420 : Flywheel remover bolt
4. Remove flywheel bolt 1, washer 2, flywheel 3 and key
4.
5. Remove screws 5 and CKP sensors 6, then disconnect
CKP sensor connector.
z
z
1
2
3
4
6
5
6
6. Disconnect CMP sensor connector.
Remove bolt 7 and CMP sensor 8.
