POWER TRIM AND TILT 8-12

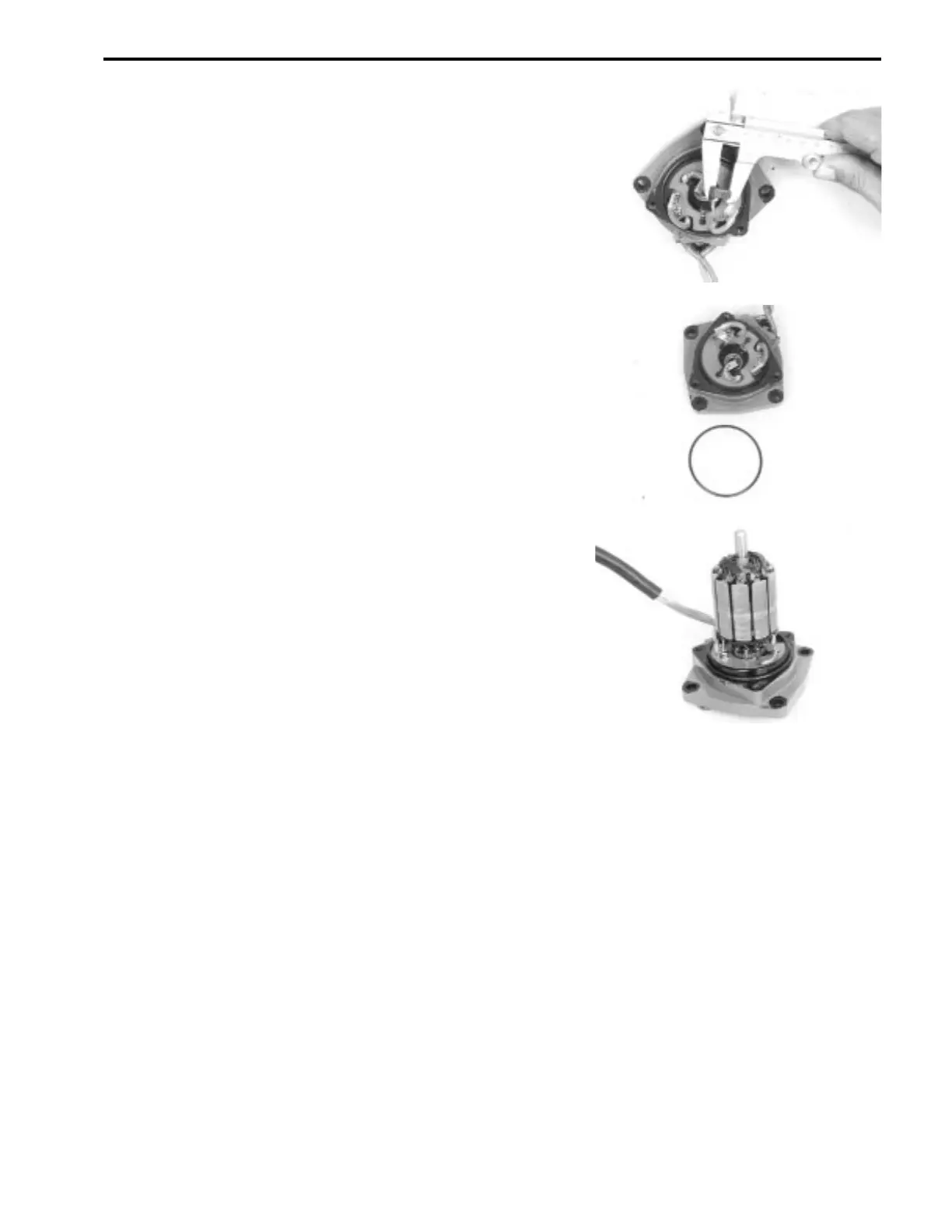

Brushes
Check the length of each brush.
09900-20101 : Vernier calipers
Brush length :
Standard 9.8 mm (0.39 in.)
Service limit 4.8 mm (0.19 in.)
If brushes are worn down to the service limit, they must be re-
placed .
O-ring
Inspect the O-ring between the PTT motor and pump & reser-
voir. Replace if cuts, nicks or tears are found.
z
Assembly
Assembly is reverse of disassembly with special attention to
following steps.
When installing the armature, exercise care not to break the
brushes.
