8-13 POWER TRIM AND TILT
PTT Motor Installation

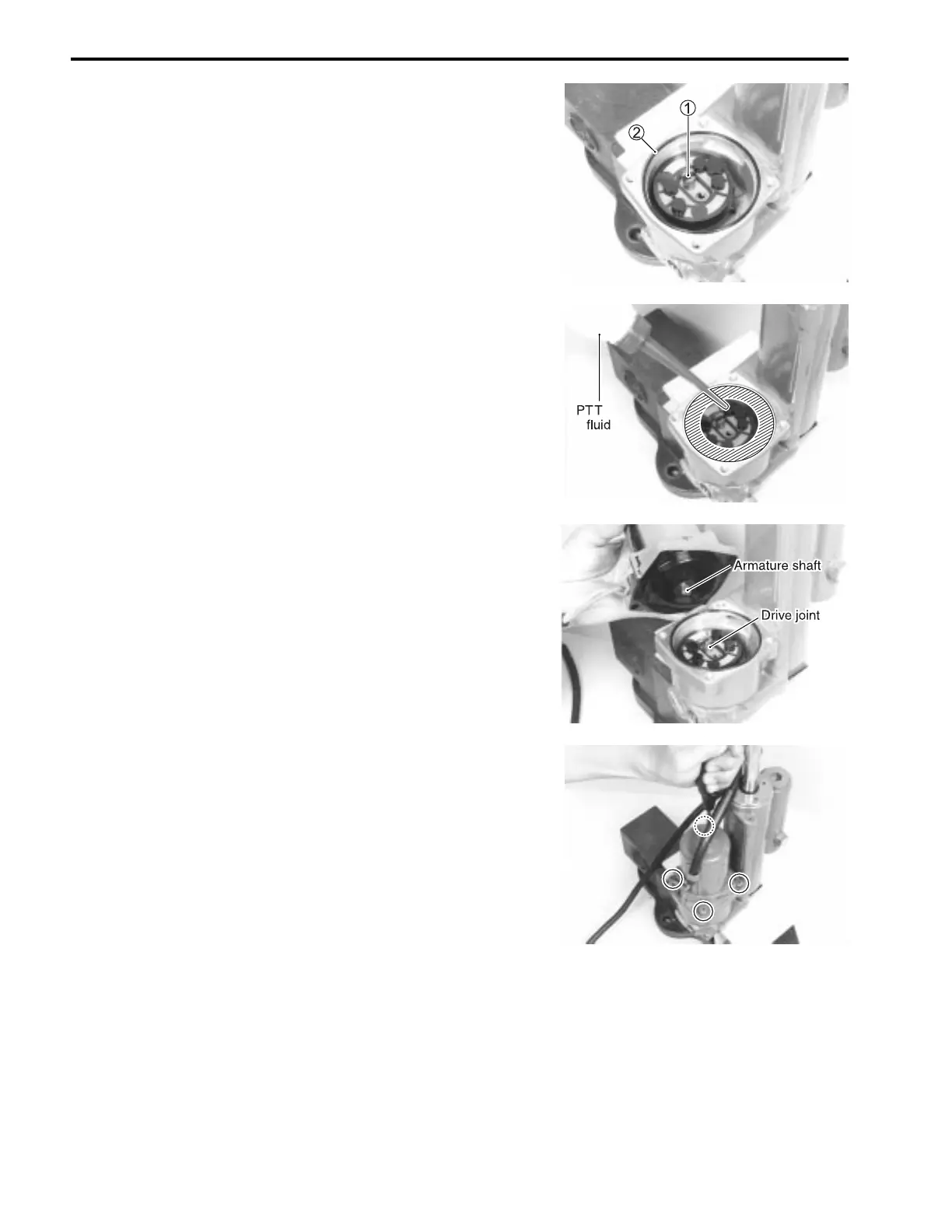

Installation is reverse of removal with special attention to fol-
lowing steps.
• Ensure that the drive joint 1 is aligned and firmly inserted
into the gear pump assembly.
• Fit O-ring 2 to pump & reservoir.
• Check the level of PTT fluid contained in the pump & reser-
voir. If level is low, add recommended PTT fluid until level with
mating surface of PTT motor.
• Ensure that the faces of the PTT motor and pump unit are
free of dirt or debris.
When attaching the PTT motor to the pump & reservoir, en-
sure that the tip of armature shaft fits firmly into the drive
joint.
• Tighten the four (4) screws to specified torque.
PTT motor screw : 6 N
.
m (0.6 kg-m, 4.3 lb.-ft.)
@
