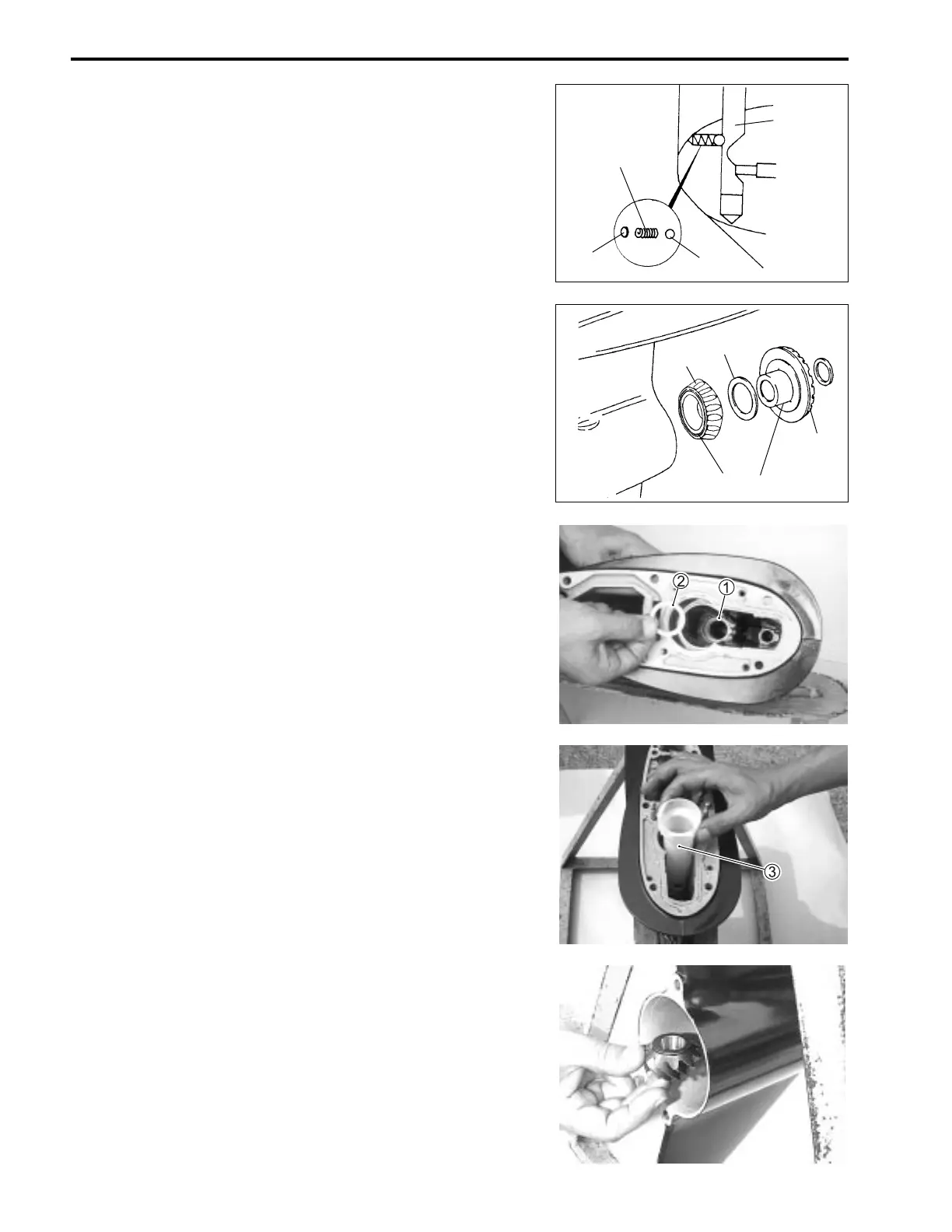

9-15 LOWER UNIT
DETENT BALL
Insert the plate 1, spring 2 and detent ball 3 into gearcase.
FORWARD GEAR
Place the forward gear bearing 3 and back-up shim 2 in posi-
tion, then install forward gear 1.
99000-22540 : Suzuki Outboard Motor Gear Oil
DRIVESHAFT THRUST WASHERS
Install the two driveshaft thrust washers 1, 2.
The lower washer( with the tab) is located as shown.
DRIVESHAFT SPRING COLLAR
Install the collar 3 on top of the two thrust washers.
PINION GEAR
Place pinion gear in gearcase.
j
1
3
2
Shift cam
2
3
1
j
To Next Page
