WIRE / HOSE ROUTING 10-2

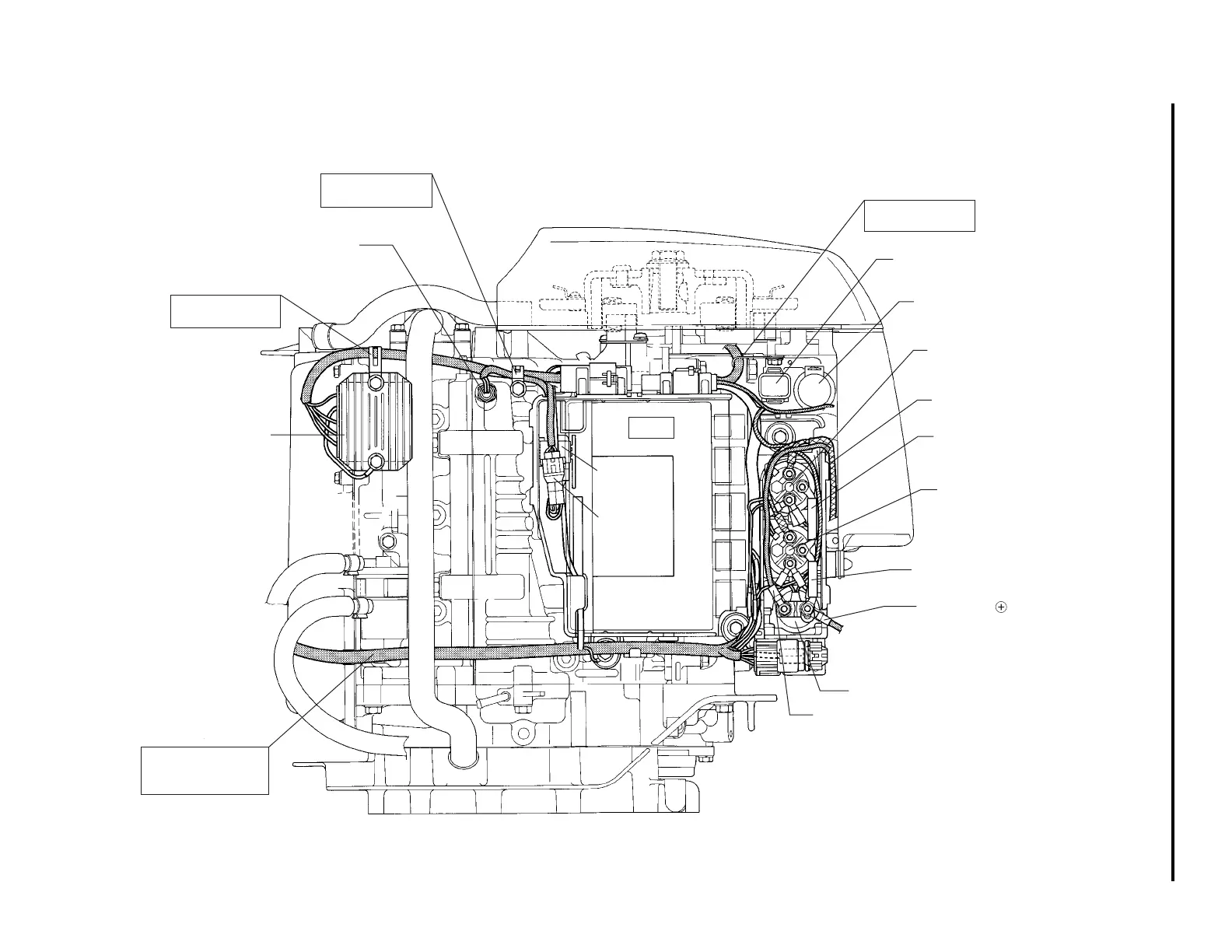

WIRE ROUTING
Fix battery charge
coil lead wire.
Clamp
30A Fuse
Communication
connector / cap
PTT motor relay (UP)
PTT motor cable
PTT relay plate
PTT motor relay (DOWN)
PTT relay plate
Battery cable
Starter motor relay
Starter motor sub cable
Engine main
wiring harness
Route engine main
wiring harness under
water hose.
Rectifier & regulator
Clamp
Fix rectifier &
regulator lead wire
Clamp
Fix Ex. mani. temp.
sensor lead wire.
Ex-mani. temperature sensor
ECM
ECM main
relay
CKP sensor
connector
