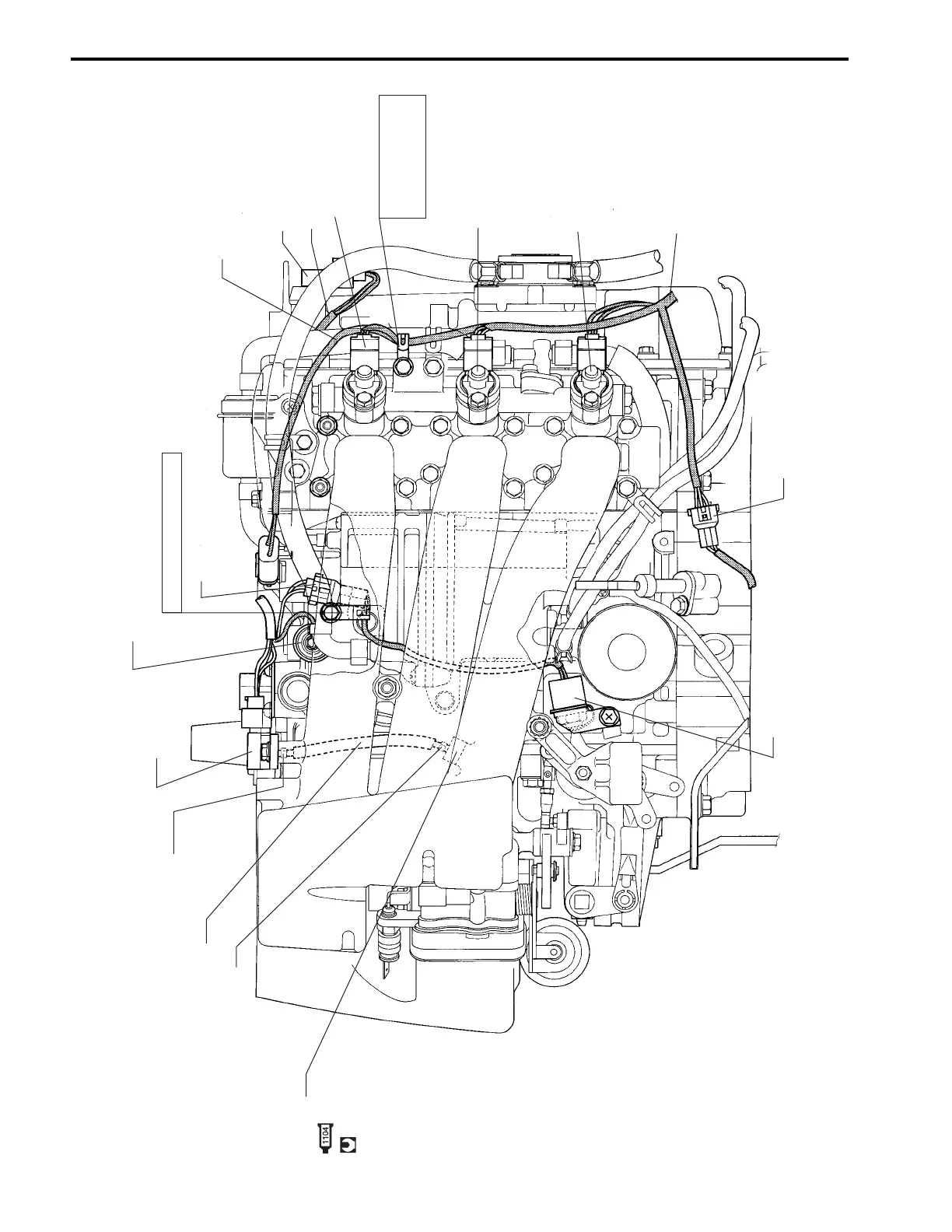

10-3 WIRE / HOSE ROUTING

Clamp

Wiring harness

CMP sensor

CMP sensor lead wire

Fuel injector #1

Fix injector lead wire

and fuel pump lead

wire.

Fuel injector #2

Fuel injector #3

Engine harness

PTT switch lead connector

Neutral switch

Gas filter

3 N m

(0.3 kg-m 2.0 Ib.-ft.)

MAP sensor hose / Protector

hose clip

MAP sensor

Oil pressure switch

Clamp

Fix neutral switch lead wire

Neutral switch lead wire connector
