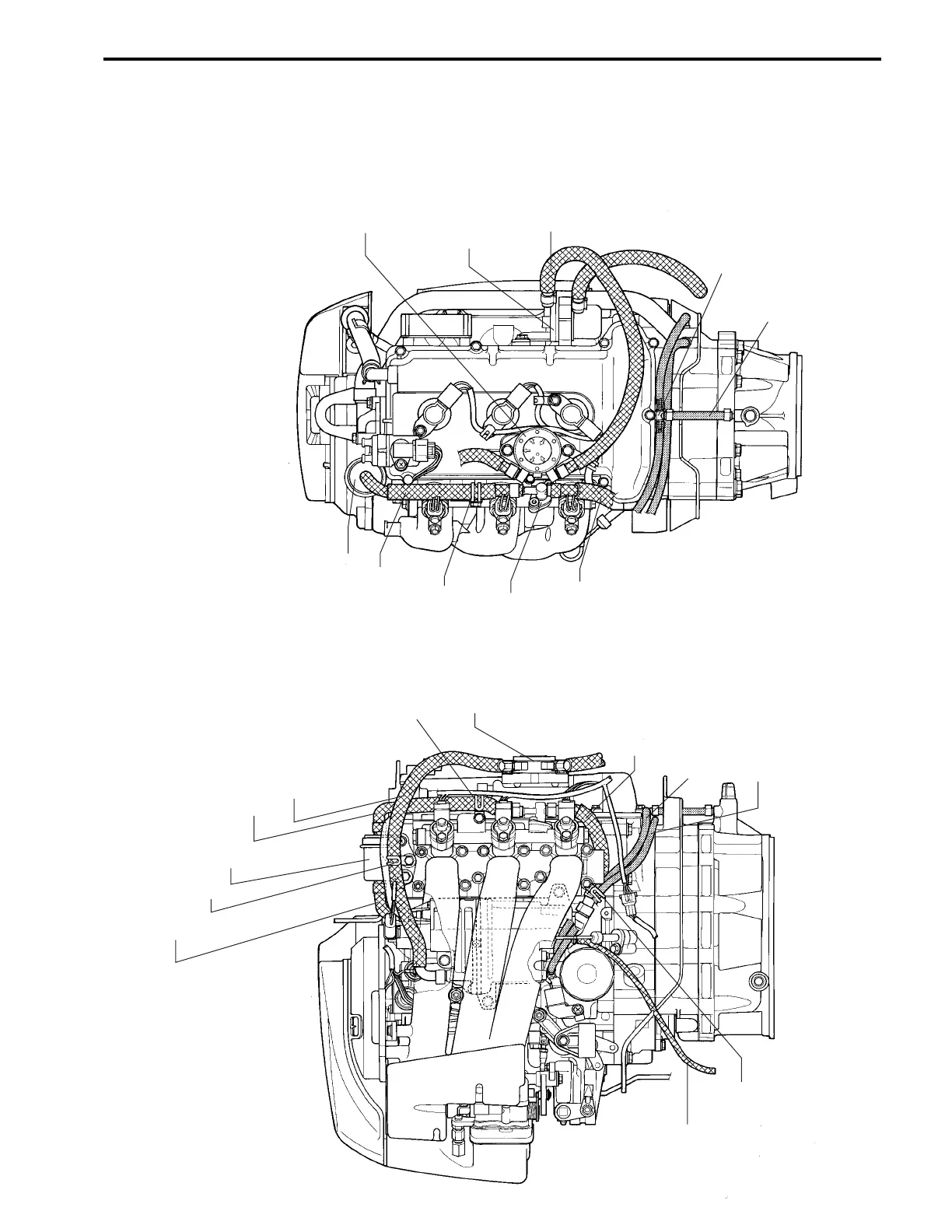

WIRE / HOSE ROUTING 10-8
Low fuel pump
Fuel filter
Fuel hose / Protector
(fuel filter to low fuel pump)
3-way
Water hose
(3-way to pilot water hole)
Fuel hose / Protector
(3-way to vapor
separator)
3-way joint
Clamp
Fuel hose
(Vapor separator to H fuel filter)
Fuel hose / Protector
(H filter to 3-way joint)
.
.
High pressure
fuel filter
Drain hose
Clamp
Water hose
(Engine holder to vapor
separator)
Water hose
(3-way to vapor separator)
Fuel hose / Protector
(3-way joint to vapor separator)
Low fuel pump
Clamp
Fuel hose / Protector
(Low fuel pump to vapor separator)
Fuel hose / Protector
(H fuel filter to 3-way joint)
.
High pressure fuel filter
Clamp
To Next Page
