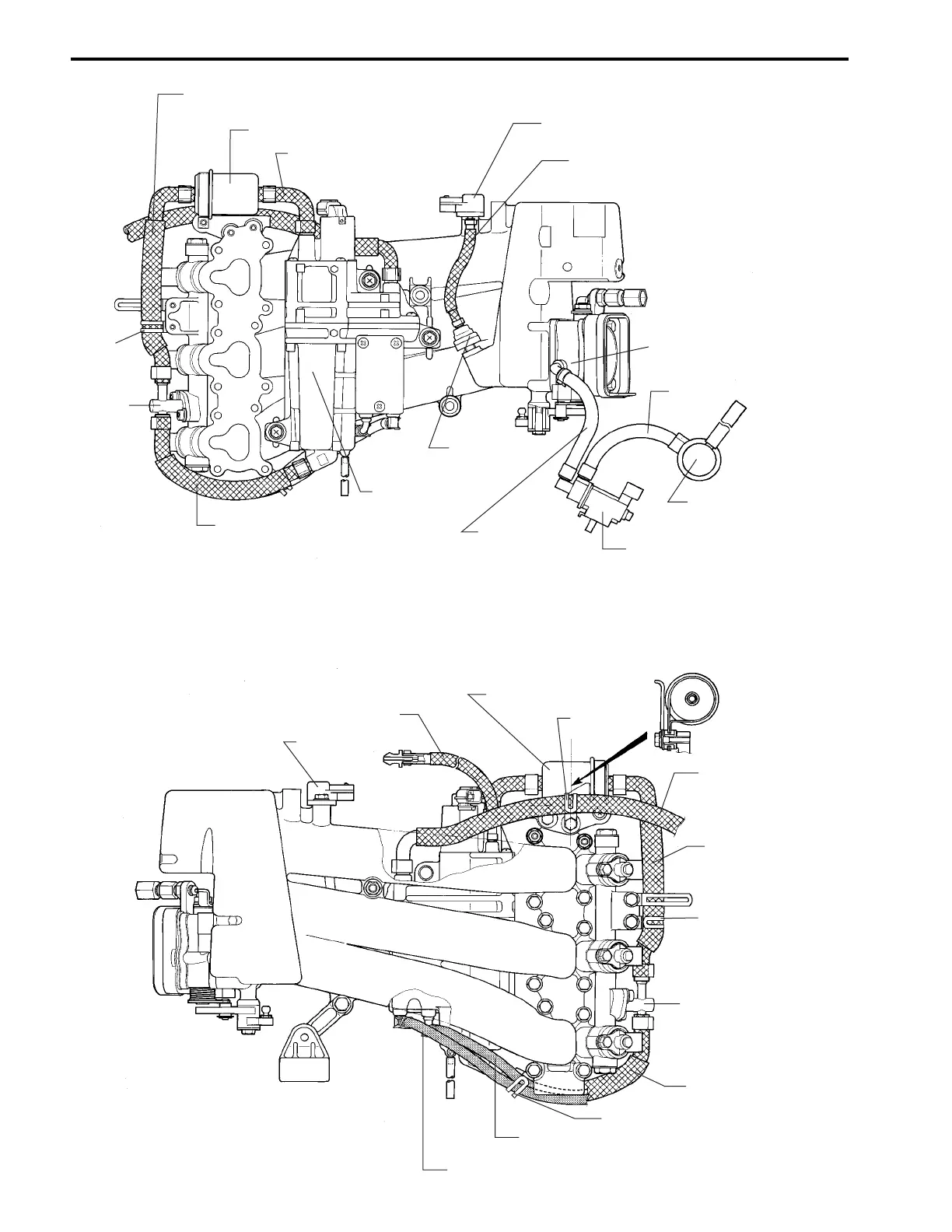

10-9 WIRE / HOSE ROUTING
Fuel hose
(H fuel filter to vapor separator)
.
Fuel hose / Protector
(H fuel filter to 3-way joint)
.
Fuel hose / Protector
(H fuel filter to 3-way joint)
.
Fuel hose / Protector
(Vapor separator to
low fuel pump)
High pressure fuel filter
Clamp
3-way joint
Fuel hose / Protector
(3-way joint to vapor separator)
Vapor separator
Gas filter
IAC hose
IAC valve
IAC hose
IAC valve silencer
Throttle body
MAP sensor hose
MAP sensor
Clamp
3-way joint
Fuel hose / Protector
(3-way joint to vapor
separator)
Clamp
Water hose
(Vapor separator to 3-way)
Water hose
(Engine holder to vapor separator)
Clamp
High pressure fuel filter
Evaporation hose
MAP sensor
To Next Page
