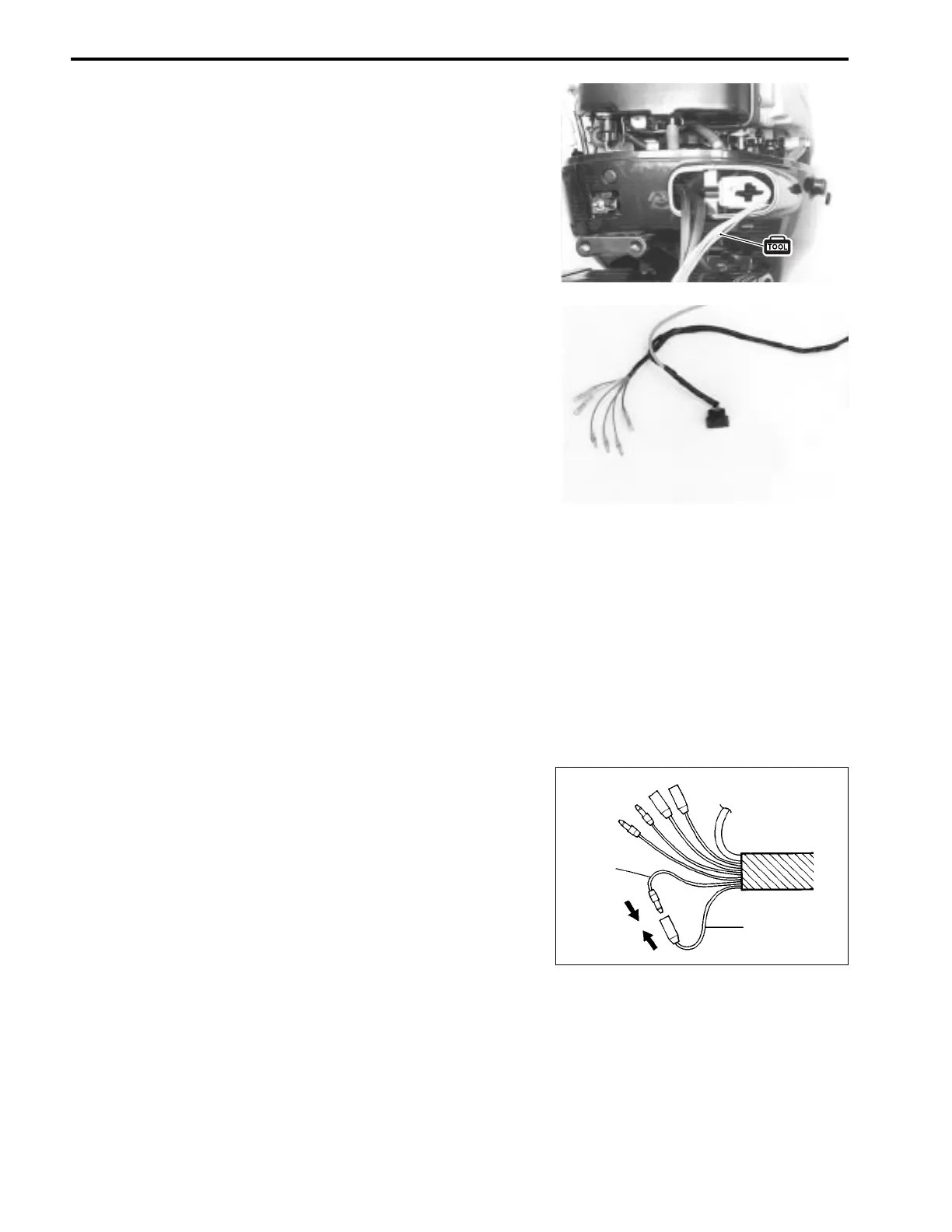

2-23 PERIODIC MAINTENANCE
5. Install stbd.side lower cover.
NOTE:
Route the diagnostic harness through clearance between re-
mote control cable holder plate and side cover.
6. Make sure none of the six diagnostic harness single lead
wire connectors (located next to the diagnostic adapter plug)
are connected.
7. Install motor cover.
8. Warm up the engine until it is stable at idle speed, then shift
into forward.
NOTE:
The O
2
feedback operation must be performed under engine
load.
Do not perform the O
2
feedback operation using warm-up
lever without first shifting into forward gear.
9. Connect one of the diagnostic harnesses single Black lead
wires and the single Red lead wire together.
NOTE:
If engine stalls when doing step “9”, raise engine speed to slightly
higher than trolling before repeating step “9”.
Red
Black
