9-4 LOWER UNIT

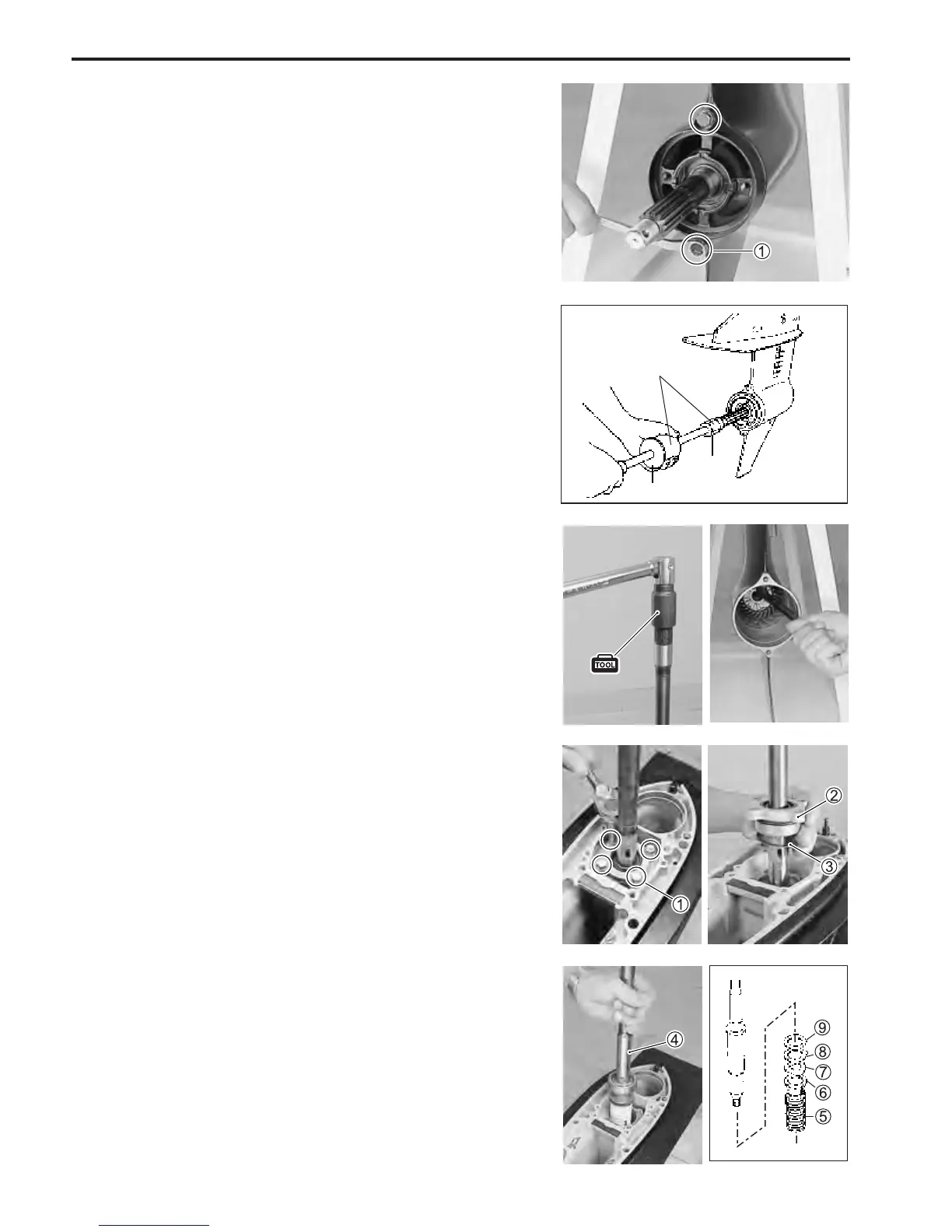

11. Remove two bolts 1 securing propeller shaft bearing
housing to gearcase.
12. Using special tools, draw out propeller shaft bearing
housing.
Remove propeller shaft and bearing housing assembly.
\ 09930-30104 : Sliding hammer A
09930-30161 : Propeller shaft remover B
13. Hold pinion nut securely, then fit special tool to the driveshaft
and loosen pinion nut.
\ 09921-29410 : Driveshaft holder
14. Remove four bolts 1 securing driveshaft oil seal housing
2, then remove oil seal housing and pinion shim 3.
\
A
B
15. Lift out driveshaft assembly 4.
Remove driveshaft collar 5, washer 6, wave washer 7,
washer (with tab) 8 and washer 9 from driveshaft.
