LOWER UNIT 9-5

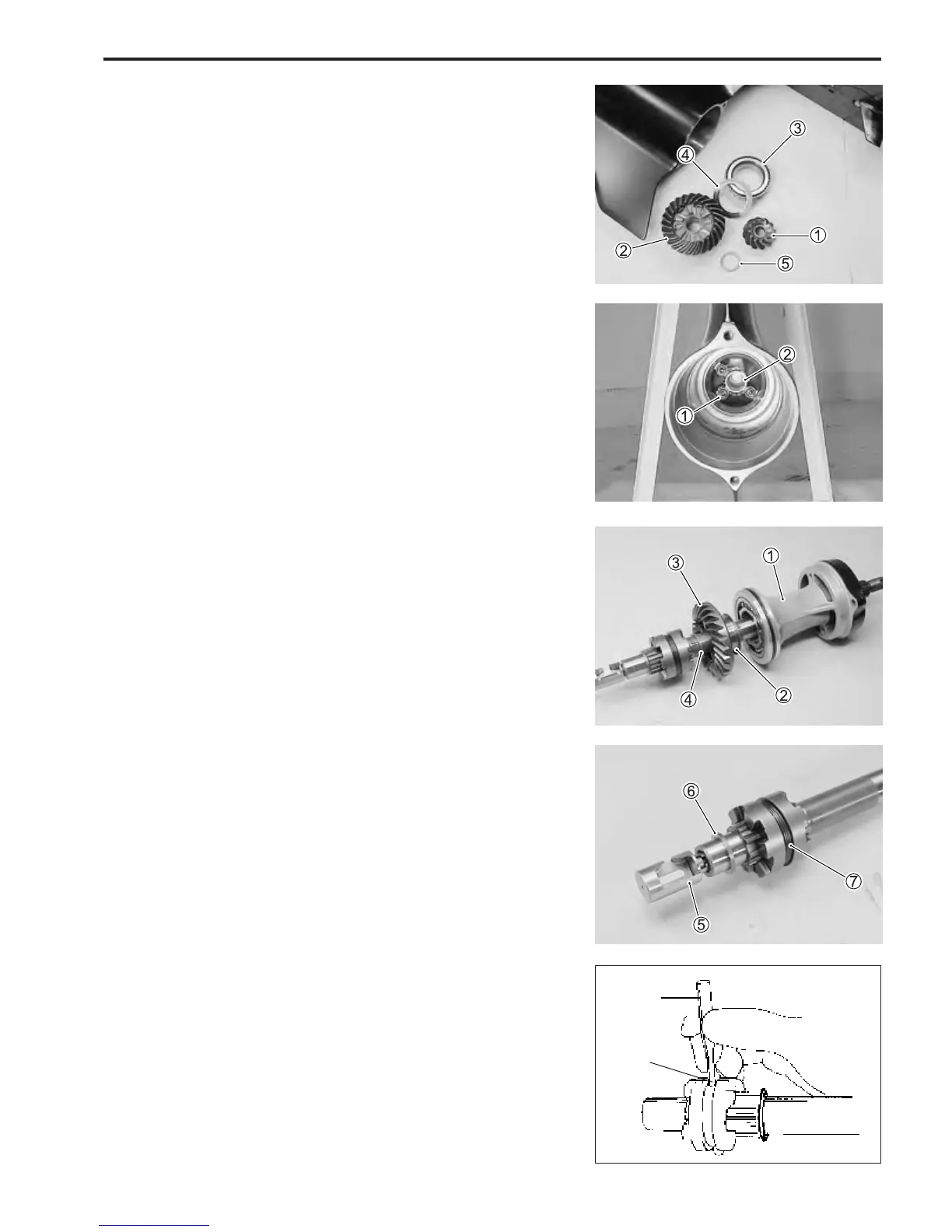

17. Remove three bolts 1
securing shift cam housing, then
remove shift cam housing 2.
Account for dowel pins.
16. Remove pinion gear 1.
Remove forward gear 2 (with thrust washer 5, back-up
shim 4 and bearing 3).
4. Using special tool, push dog pin 8 out of clutch dog
shifter.
\ 09922-89810 : Shift pin remover
\
8
2. Remove horizontal slider 5 and forward gear thrust washer
6.
3. Remove spring 7 from clutch dog shifter.
Disassembly of propeller shaft components
1. Slide propeller shaft away from reverse gear 3 and bear-
ing housing assembly 1.
Account for reverse gear back-up shim 2 and reverse gear
thrust washer 4.
To Next Page
