DF140 “K2” (’02) MODEL 11-49

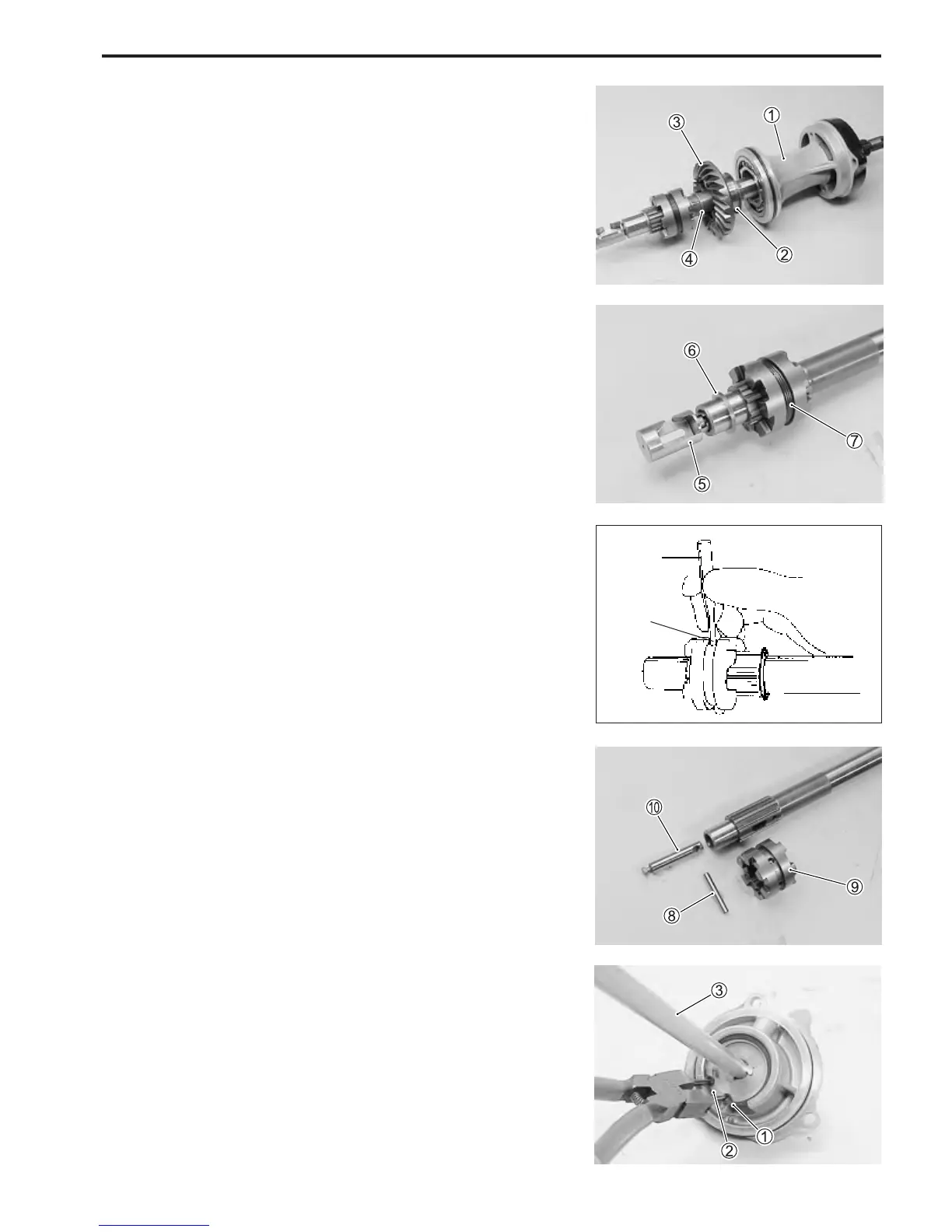

(c) Use special tool to push the dog pin 8 out of the clutch dog
shifter.
\ 09922-89810: Shift pin remover
\
8
To disassemble propeller shaft components, refer to the follow-
ing:
(a) Remove horizontal slider 5 and forward gear thrust washer
6.
(b) Remove the spring 7 from the clutch dog shifter.
Disassembly of propeller shaft components
Slide propeller shaft away from reverse gear 3 and bearing
housing assembly 1.
Account for the reverse gear back-up shim 2 and reverse gear
thrust washer 4.
(d) Remove the clutch dog shifter 9 and connector pin 0 from
propeller shaft.
Disassembly of shift rod components
(a) Remove the circlip 1 and washer 2.
(b) Slide the shift rod 3 out of the shift rod guide housing.
