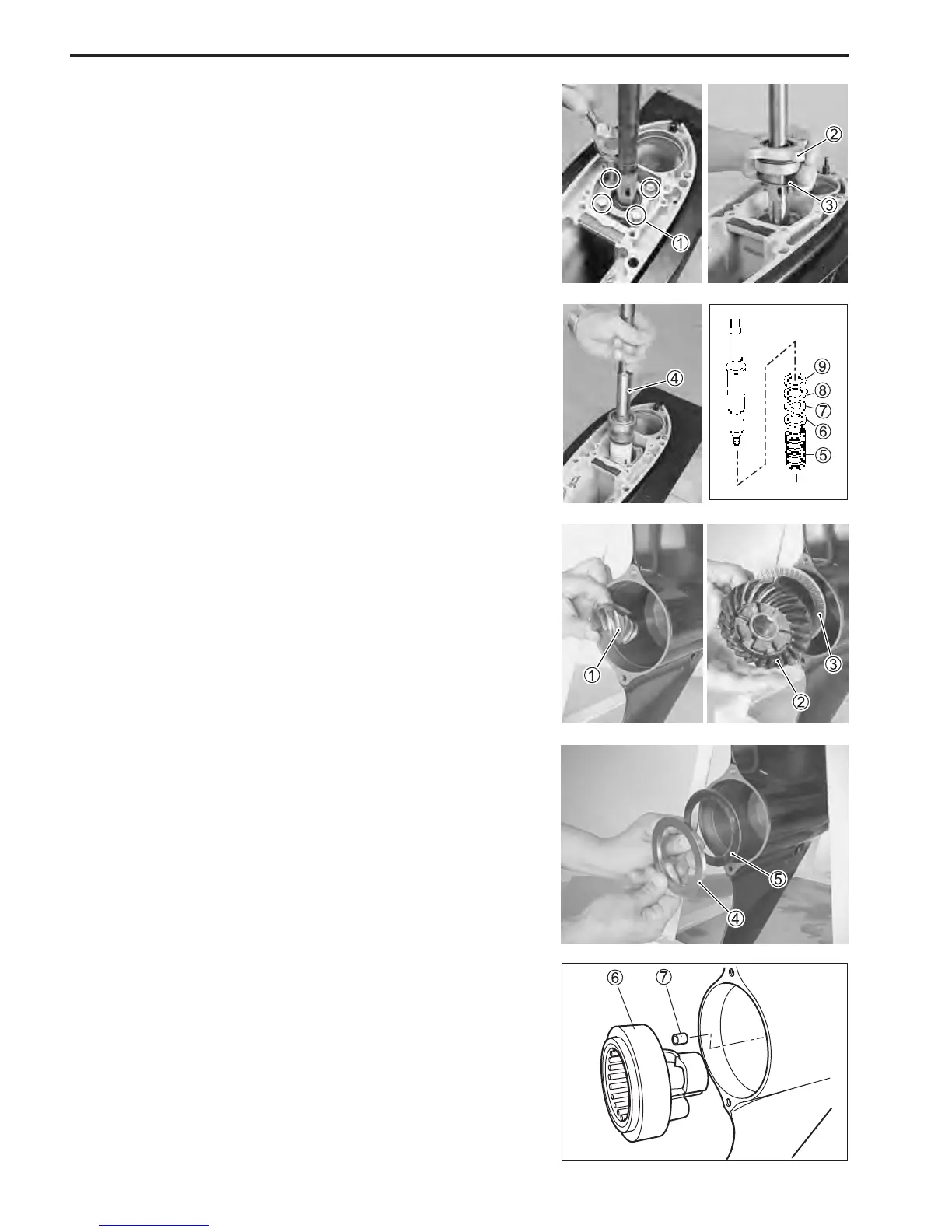

11-48 DF140 “K2” (’02) MODEL
Lift out driveshaft assembly 4.
Remove the driveshaft collar 5, washer 6, wave washer 7,
washer (with tab) 8 and washer 9 from driveshaft.
Unscrew the four (
4
) bolts 1 securing driveshaft oil seal hous-
ing 2, then remove oil seal housing and pinion shim 3.
Remove the pinion gear 1.
Remove the forward gear 2 and thrust bearing 3.
Remove the bearing thrust washer 4 and back-up shim 5.
Remove the forward gear bearing housing 6.
Account for dowel pin 7.
